Description
Flanders HEPA Filter 22.5x22.5 Laminar Flow VLSI 255 CFM 99.999% F0609719

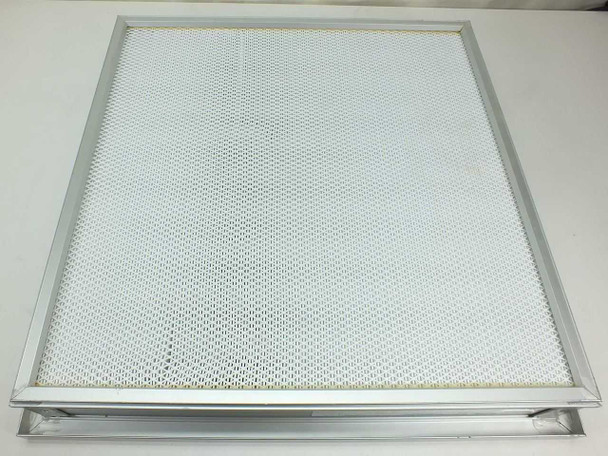

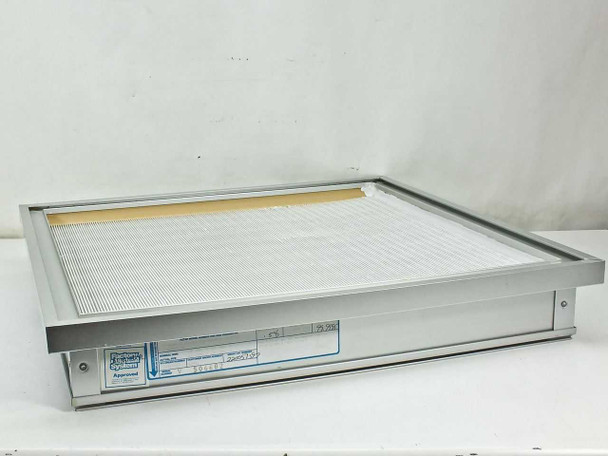

This Flanders Laminar Flow Grade VLSI HEPA filter is a high-efficiency particulate air filter designed for semiconductor cleanroom and laminar flow hood applications. It is rated at 99.999% efficiency and carries the VLSI (Very Large Scale Integration) grade designation, indicating it meets the stringent particulate removal requirements of advanced semiconductor fabrication environments. The actual filter dimensions are 22.500 x 22.500 inches with a pleated media construction and an aluminum frame.
Specifications & What's Included

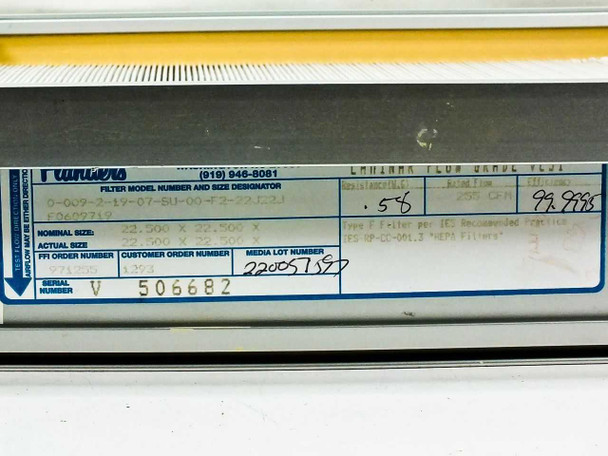

- Brand: Flanders
- Part Number: 0-009-2-19-07-SU-00-F2-22J22J
- Size Designator: F0609719
- Nominal Size: 22.500 x 22.500 in
- Actual Size: 22.500 x 22.500 in
- Rated Flow: 255 CFM
- Filter Efficiency: 99.999%
- Initial Resistance: 0.56 in WG
- Filter Grade: Laminar Flow Grade VLSI
- Frame: Aluminum with gel/sealant bed
- Media: Pleated HEPA (visible on face side)
- Downstream face: expanded metal mesh
- Filter only — no additional mounting hardware included
Applications
VLSI-grade HEPA filters like this one are used in laminar flow hoods, cleanroom ceilings, and fan filter units (FFUs) where ISO Class 4 (Class 10) or better air cleanliness is required. The VLSI designation was developed specifically for semiconductor wafer fabrication, where sub-micron particulate contamination directly impacts chip yield — even a single particle landing on a wafer during photolithography or deposition can render a die defective. These filters are a standard component in horizontal and vertical laminar flow workstations, wafer-handling benches, and cleanroom bay/chase ceiling plenum systems. They are also used in life sciences research, optical coating chambers, and any environment requiring extremely low particle counts at the work surface. Flanders (now part of AAF International) has been a major supplier of VLSI and ULPA grade filters to the semiconductor industry since the 1980s and 1990s, when VLSI chip geometries drove rapid development of more stringent cleanroom standards.

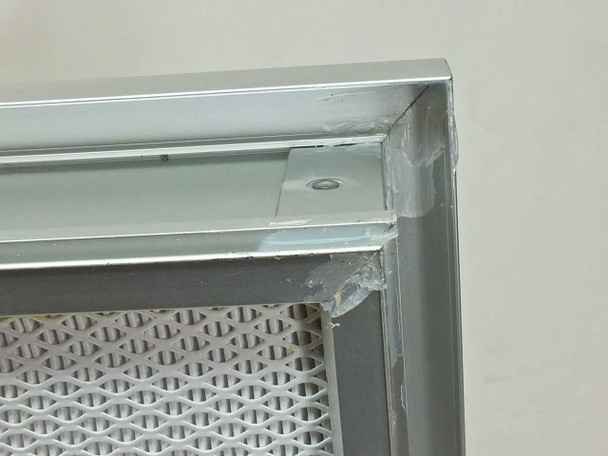

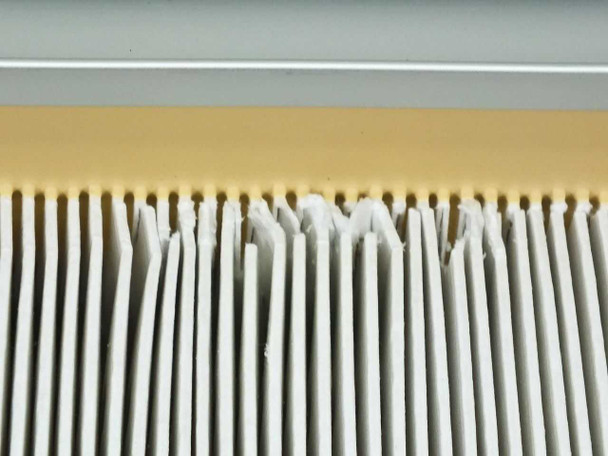

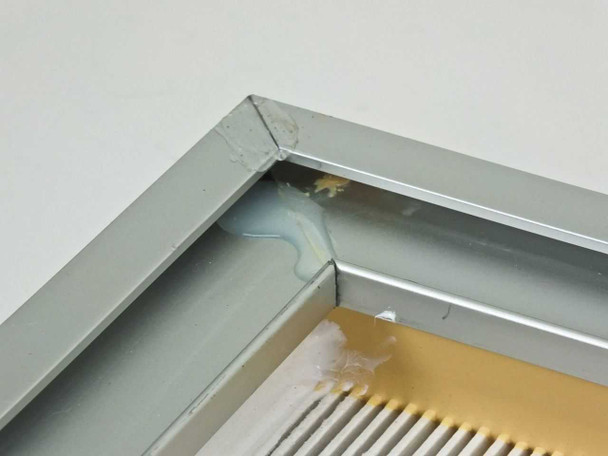

This Flanders Laminar Flow Grade VLSI HEPA Filter (PN 0-009-2-19-07-SU-00-F2-22J22J) is in used condition and shows visible signs of prior service. The aluminum frame has chipped and crumbling sealant at two of the corners, as shown in the detail photos. The pleated filter media shows dust accumulation at the tops of the pleats, consistent with prior use in a cleanroom environment. The filter has not been re-tested for efficiency after removal from service. Please review all photos carefully — this filter is sold as-is in its current state. Contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Flanders |
Model: |
0-009-2-19-07-SU-00-F2-22J22J |
MPN: |
0-009-2-19-07-SU-00-F2-22J22J |
Type: |
HEPA Filter |
SKU: |
44941 |
Size Designator: |
F0609719 |
Nominal Size: |
22.500 x 22.500 in |
Actual Size: |
22.500 x 22.500 in |
Rated Flow: |
255 CFM |
Filter Efficiency: |
99.999% |
Initial Resistance: |
0.56 in WG |
Filter Grade: |
Laminar Flow Grade VLSI |
Application: |
Laminar Flow Hood / Cleanroom |
Cleanroom Class: |
VLSI / Class 10 (ISO 4) |
Frame Material: |
Aluminum |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Filter only — no additional hardware included. |
Condition Notes: |
This Flanders VLSI HEPA Filter (PN 0-009-2-19-07-SU-00-F2-22J22J) is used with visible wear: chipped sealant at frame corners and dust accumulation in the pleats. Not re-tested after removal. Please review photos carefully. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
