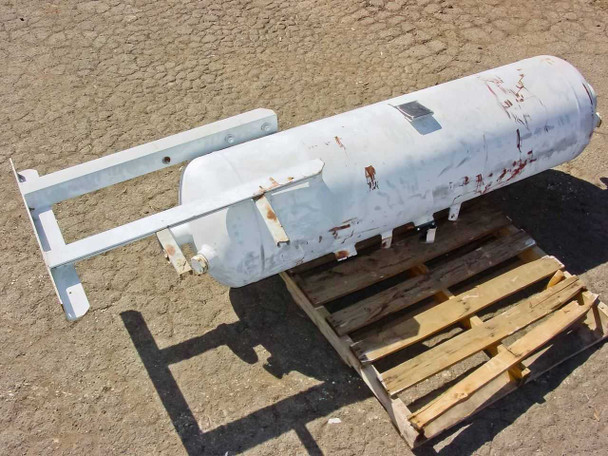

This Flair carbon adsorber tank is a pressure vessel used as the adsorption chamber in a compressed air drying system. Manufactured by Flair of Ocala, FL and certified to ASME standards (National Board No. 25708), it holds an activated carbon or desiccant bed that removes moisture, hydrocarbons, and contaminants from compressed air as it passes through. The tank measures approximately 80 × 20 inches and holds 21 gallons (82 liters) of adsorbent media.

Specifications & What's Included

• Manufacturer: Flair, Ocala, FL
• Model / CRN No.: F9582.1627534
• Flair Serial No.: 031414
• National Board No.: 25708
• Year Built: 1995
• Capacity: approximately 21 gallons (82 liters)
• Max Allowable Working Pressure: 150 PSIG @ 450°F
• Minimum Metal Design Temperature: -20°F @ 150 PSIG
• Tank Dimensions: 80 inches long × 20 inches diameter (6.9 ft × 1.6 ft)
• Main Port Dimensions (top and bottom openings): 3-5/8 inch flow opening, sealed by a 7-inch mounting lip with 3/4-inch bolt holes
• ASME-certified pressure vessel construction
• Mounting brackets included (attached to tank)
• Tank only — no valves, piping, fittings, or adsorbent media included

Applications

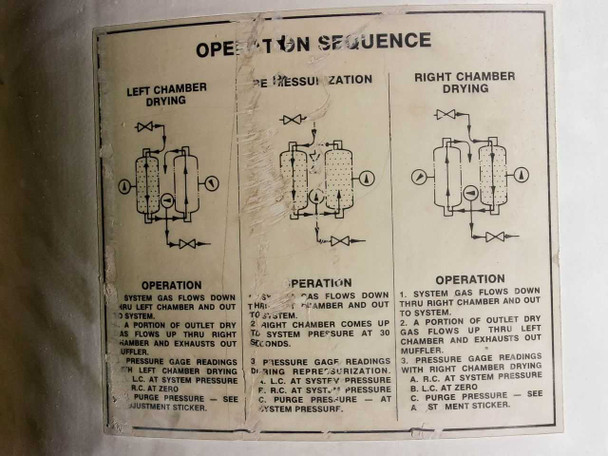

Carbon adsorber tanks like this one are a key component in two-tower or multi-vessel compressed air purification systems, commonly found in manufacturing plants, industrial facilities, and process air applications. In a typical heatless or heated purge desiccant dryer system, one vessel adsorbs moisture and hydrocarbon vapors from the compressed air stream while the other regenerates offline — the operation sequence label visible on this tank illustrates exactly this left-chamber/right-chamber alternating drying and repressurization cycle. These vessels are also used as activated carbon beds for hydrocarbon and oil-vapor removal downstream of compressors. Common applications include instrument air systems, pneumatic control systems, pharmaceutical-grade air, food-grade air, and industrial process lines where dry, clean compressed air is required. The 150 PSIG working pressure rating suits most standard industrial compressed air systems.
