F&K Delvotec 6320 Automatic Gold Wire Bonder Nikon SMZ-1B CCD 1-2 Mil AS-IS
Automatic wire bonder for semiconductor IC packaging and microelectronics assembly. Performs thermosonic and thermocompression bonding with gold and aluminum wire at 1-2 mil sizes.
Specifications & What's Included

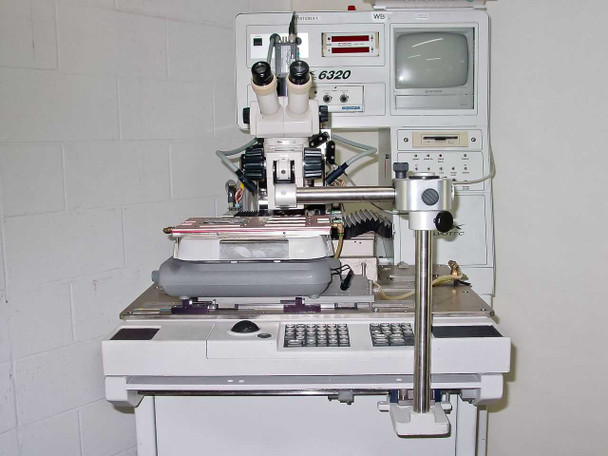

- F&K Delvotec Model 6320 with SC-02 controller and numeric keypad
- Nikon SMZ-1B stereo zoom microscope with 2x Unitron HWF 10x eyepieces
- CCD video camera module, Hitachi and Philips monitors
- Corning hot plate (small cosmetic crack)
- K-Sine 1410 power supply
- Wire capability: 1-2 mil gold or aluminum

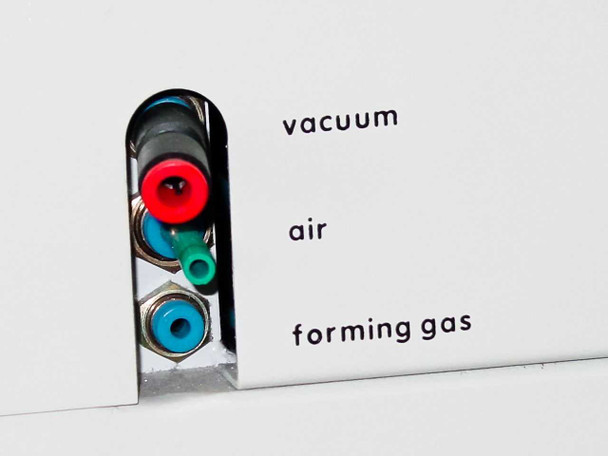

- Gas connections: vacuum, air, forming gas
- Power: 220V, 6A; X/Y linear encoder connectors present

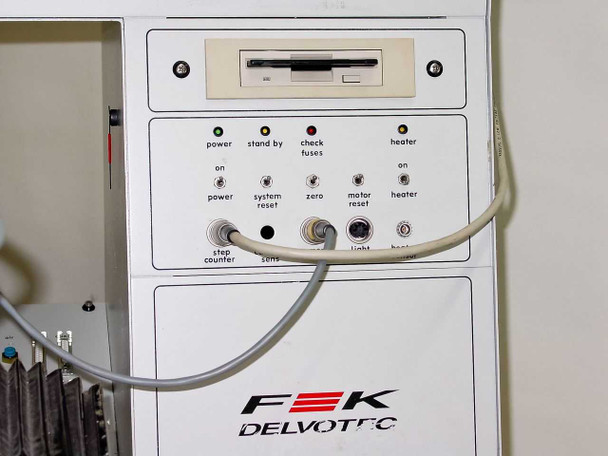

- Integrated floppy disk drive on control cabinet
Applications
Wire bonding equipment is used in semiconductor die attachment, IC packaging, and microelectronics assembly operations. The Delvotec 6320 is suited for production and research environments requiring precision gold or aluminum wire connections on integrated circuits and microelectronic components.
Condition: For Parts or Not Working
This F&K Delvotec 6320 Automatic Gold/Aluminum Wire Bonder is being sold AS-IS for parts or repair. The system powers on and appears to be complete with its peripherals, but the computer cannot communicate with the linear controllers — this fault prevents normal bonding operation and is the primary reason for the as-is designation. There is also a small crack in the Corning hot plate, which appears to be cosmetic. The system came from an R&D facility in Silicon Valley. Per the manufacturer, the bonder is approximately 16–20 years old with a wire size capability of roughly 1 to 2 mil. Included with the system are a Nikon SMZ-1B stereo zoom microscope with two Unitron HWF 10x eyepieces, a CCD video camera module, a Corning hot plate, a Hitachi monitor, a Philips monitor, and a K-Sine 1410 power supply. The rating plate on the main cabinet shows 220V / 6A. No functionality is guaranteed. Please view our photo set and contact us if you have any questions.
This F&K Delvotec 6320 Automatic Gold/Aluminum Wire Bonder is being sold AS-IS for parts or repair. The system powers on and appears to be complete with its peripherals, but the computer cannot communicate with the linear controllers — this fault prevents normal bonding operation and is the primary reason for the as-is designation. There is also a small crack in the Corning hot plate, which appears to be cosmetic. The system came from an R&D facility in Silicon Valley. Per the manufacturer, the bonder is approximately 16–20 years old with a wire size capability of roughly 1 to 2 mil. Included with the system are a Nikon SMZ-1B stereo zoom microscope with two Unitron HWF 10x eyepieces, a CCD video camera module, a Corning hot plate, a Hitachi monitor, a Philips monitor, and a K-Sine 1410 power supply. The rating plate on the main cabinet shows 220V / 6A. No functionality is guaranteed. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
F&K Delvotec |
Model: |
6320 |
MPN: |
6320.00.1648 |
Type: |
Automatic Gold/Aluminum Wire Bonder |
SKU: |
37228 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes Nikon SMZ-1B scope, CCD camera, hot plate, Hitachi monitor, Philips monitor, K-Sine 1410 power supply |
Country/Region of Manufacture: |
Germany |
Power Requirements: |
220V, 6A |
Wire Size Capability: |
1 to 2 mil (approx.) |
Wire Material: |
Gold, Aluminum |
Bonding Method: |
Thermosonic / Thermocompression |
Form Factor: |
Benchtop / Cabinet System |
Included Scope: |
Nikon SMZ-1B Stereo Zoom Microscope |
Scope Eyepieces: |
2x Unitron HWF 10x |
Imaging: |
CCD Video Camera Module |
Monitors Included: |
Hitachi Monitor, Philips Monitor |
Hot Plate: |
Corning Hot Plate (small crack, likely cosmetic) |
Power Supply: |
K-Sine 1410 |
Control Interface: |
F&K Delvotec SC-02 controller, numeric keypad |
Gas Connections: |
Vacuum, Air, Forming Gas |
Linear Encoders: |
X and Y linear encoder connectors present (not communicating with PC) |
Floppy Drive: |
Integrated floppy disk drive on control cabinet |
Application: |
Semiconductor wire bonding, IC packaging, R&D, microelectronics |
Compatible With: |
Semiconductor die bonding, IC packaging, R&D assembly |
Serial Number: |
6320.00.1648 |
Condition Notes: |
F&K Delvotec 6320 Wire Bonder sold AS-IS for parts/repair. Powers on but computer cannot communicate with linear controllers. Cosmetic crack in hot plate. Includes Nikon SMZ-1B scope, CCD camera, 2 monitors, hot plate, K-Sine 1410 PSU. 220V/6A. |
