Fiberglass Silver Recovery Tank 43x21 Mixer Circulator w/ Stand Film Processing

Fiberglass Silver Recovery Tank 43x21 Mixer Circulator w/ Stand Film Processing

This is a fiberglass silver recovery tank measuring approximately 43 inches long by 21 inches wide, fitted with two drum-style mixer circulator assemblies driven by single-phase gearmotors. The tank sits in a welded steel frame stand. The circulator motor assemblies are physically mounted on the unit; however, control electronics and power input wiring are not included — buyers will need to supply their own electrical controls to put the circulators into operation. The tank only (with stand and motor assemblies) is what ships.

Specifications & What's Included

• Tank material: Fiberglass
• Tank dimensions: Approx. 43 inches long x 21 inches wide
• Number of circulator/mixer assemblies: 2 (one at each end)

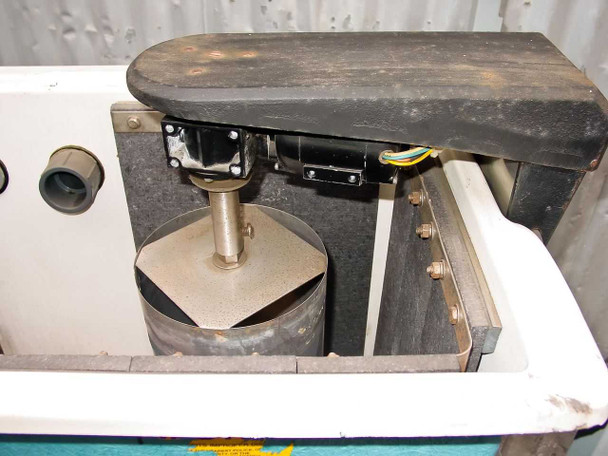

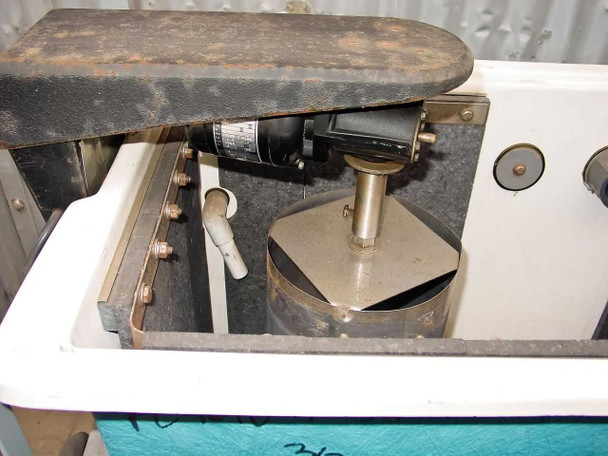

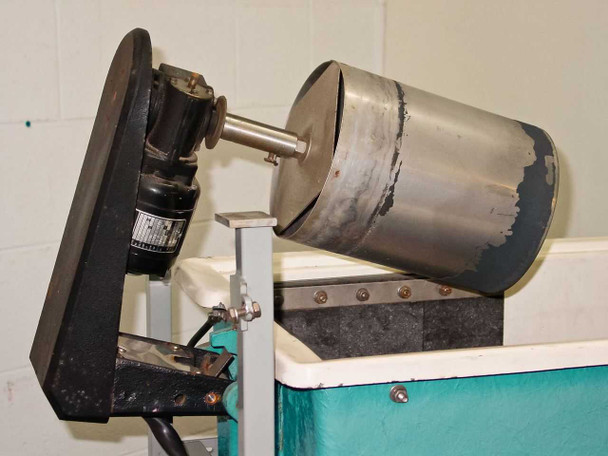

• Circulator drum style: Stainless steel cylindrical drum with paddle impeller on shaft

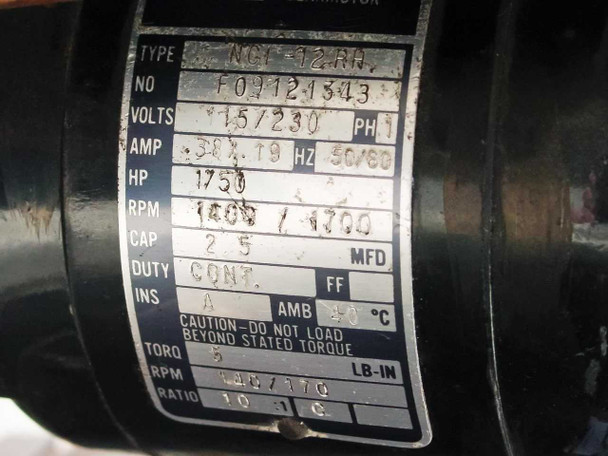

• Gearmotor type: NCF-72-RH (per nameplate)
• Motor serial number: F09121343
• Motor voltage: 115/230V, Single Phase, 50/60Hz
• Motor amperage: 3.8A at 115V / 1.9A at 230V
• Motor RPM: 1400/1700 input; 10:1 gear ratio output
• Motor capacitor: 2.5 MFD
• Motor duty rating: Continuous (CONT)
• Motor insulation class: A; ambient rating 40°C

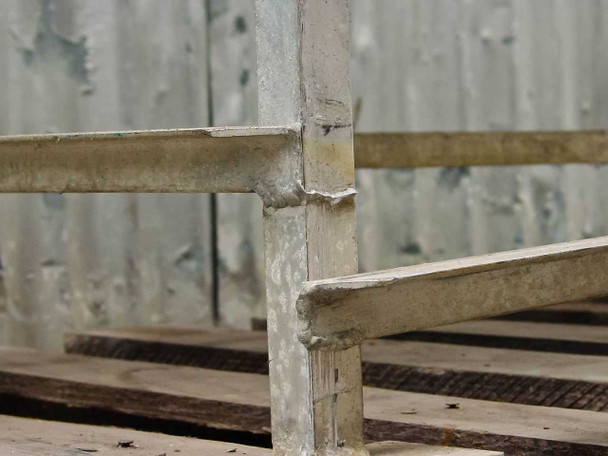

• Stand: Welded steel frame — included

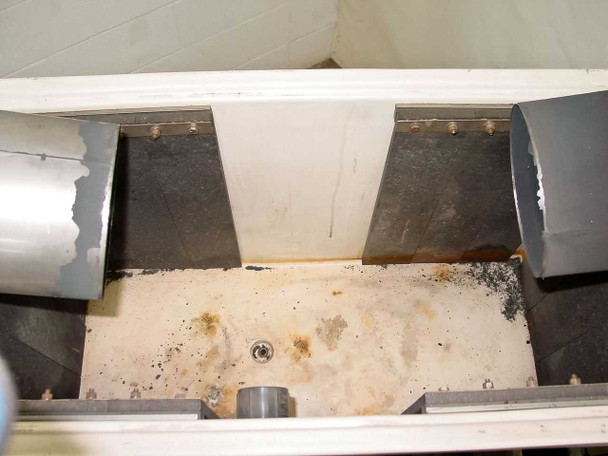

• Interior: Divided tank with center baffle, drain fitting at bottom
• Included: Tank body, steel stand, two circulator motor assemblies
• Not included: Control electronics, power input wiring, or electrical controls
• Shipping: Palletized freight required

Applications

Silver recovery tanks like this one are used in photographic and film processing labs to reclaim dissolved silver from spent fixer and other chemical baths. In traditional film and print darkroom workflows, fixer solution accumulates silver ions stripped from the photographic emulsion during processing — this silver has recoverable value and must be managed for both economic and environmental compliance reasons. Circulator or mixer tanks agitate the recovery solution to keep it in contact with a metallic silver collection element (such as a steel wool cartridge or electrolytic cell), improving recovery efficiency. This type of equipment was common in professional film labs, photofinishing operations, x-ray processing facilities, and large-format print darkrooms from the mid-20th century through the decline of wet-process photography. Some smaller specialty labs, x-ray departments, and film archiving facilities still operate wet silver-based processes and use equipment of this type today.
