Description
Fiber Optic Microscope Light Source Flex Cable Split Dual Output 44" 15mm Tip

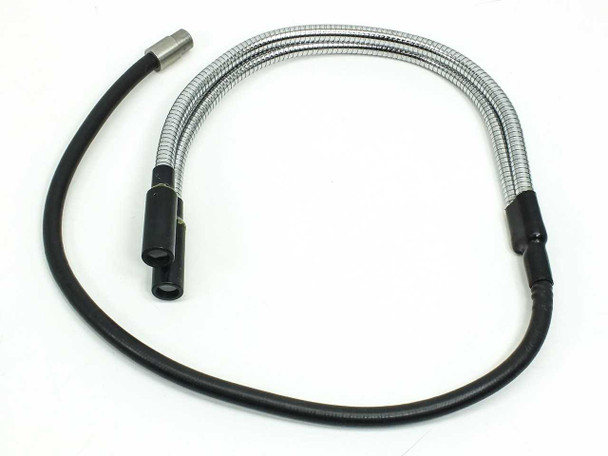

This is a fiber optic light guide cable with a split dual output configuration, designed for use with fiber optic microscope illuminators and light sources. The single input end accepts a light source, and the fiber bundle splits into two flexible gooseneck output arms that direct light precisely onto a specimen — a common arrangement in stereo microscope and inspection microscope setups. The cable body is enclosed in a flexible stainless coil-armored gooseneck that holds its position when bent.
Specifications & What's Included
- Type: Fiber optic light guide cable — split / dual output (bifurcated)
- Total overall length: 44 inches
- Input / single cable length: 22 inches
- Input tip diameter: 15mm
- Input tip length: 13mm

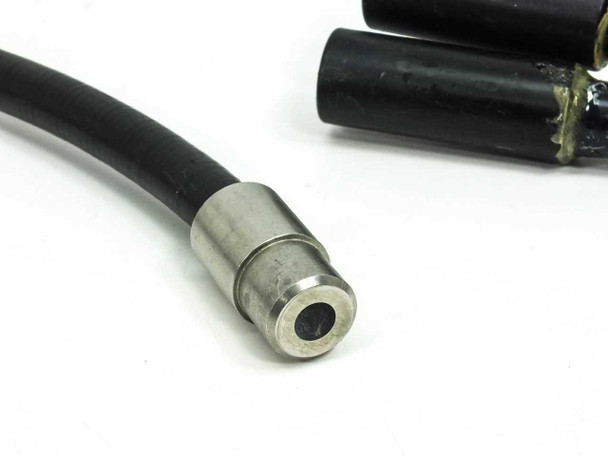

- Input connector: Stainless steel barrel with hollow bore
- Output / dual arm length: 15.5 inches each
- Output tip diameter: 19mm
- Output tip length: 43mm

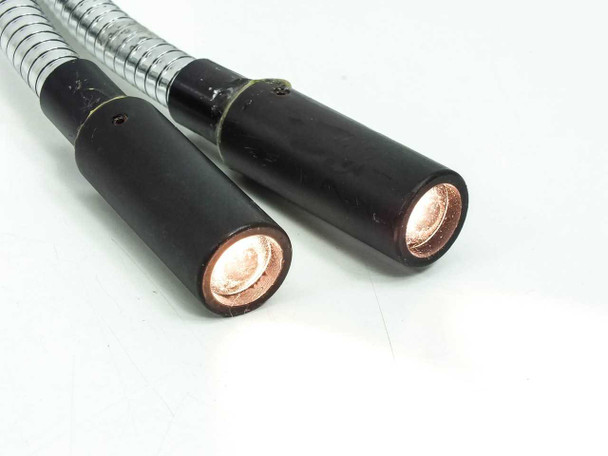

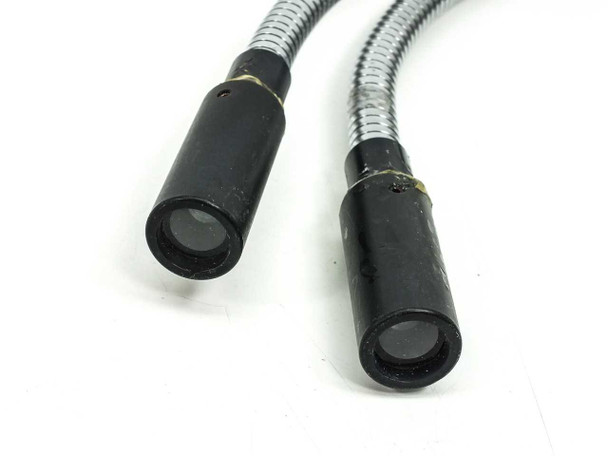

- Output tips: Circular fiber bundle lens face visible in each cylindrical housing
- Jacket: Flexible metal gooseneck (stainless spiral-wound coil armor)
- Light source / power supply: NOT included — cable only
Applications
Bifurcated fiber optic light cables like this one are standard accessories for stereo microscopes, inspection microscopes, and precision assembly workstations. The dual-arm arrangement delivers balanced illumination to both sides of a specimen, reducing shadows and improving contrast — particularly useful in circuit board inspection, gemology, biological specimen work, and quality control applications. The gooseneck arms allow the operator to position each output precisely and independently. This cable connects between a halogen, LED, or mercury fiber optic light source unit and the microscope stage, and is compatible with a wide range of illuminator brands and microscope setups that accept a standard barrel-style input connector. These cables remain in everyday active use in research labs, manufacturing inspection lines, and university settings.
This fiber optic microscope light source flex cable with split dual output is in good used condition. It shows normal handling wear including some minor surface marks on the black tip housings and gooseneck armor, consistent with previous lab use. The fiber bundles are intact and visible at both output tips. No light source or power supply is included — the cable was illuminated in the photos for display purposes only. Please review our full photo set and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
Fiber Optic Dual Output Light Guide 44in |
Type: |
Fiber Optic Light Guide Cable |
SKU: |
46741 |
Configuration: |
Split / Dual Output (bifurcated) |
Total Length: |
44 inches |
Input Cable Length: |
22 inches |
Input Tip Diameter: |
15mm |
Input Tip Length: |
13mm |
Output Arm Length: |
15.5 inches each |
Output Tip Diameter: |
19mm |
Output Tip Length: |
43mm |
Jacket Style: |
Flexible metal gooseneck (stainless coil armor) |
Compatible With: |
Fiber optic microscope light sources / illuminators |
Seller Notes: |
Cable only — light source / power supply not included. |
Condition Notes: |
This fiber optic microscope dual-output light guide cable is in good used condition with normal handling wear. Fiber bundles are intact. No light source included — cable only. Please view photos and contact us with any questions. |
