Description
Fiber Optic Light Source Flex Cable 27" Chrome Microscope 0.25 Thread Lens

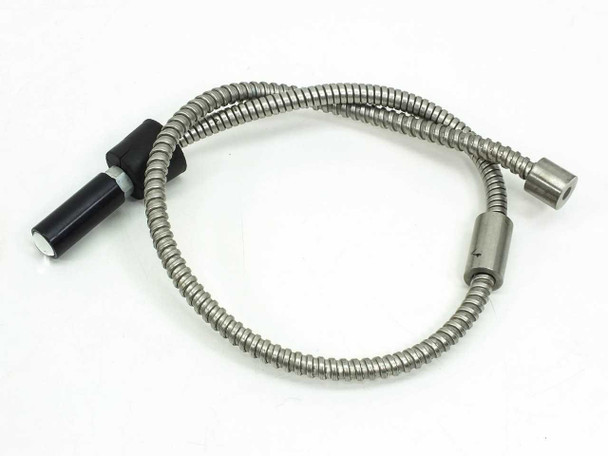

This is a 27-inch chrome-armored fiber optic flex cable designed to carry light from an external illuminator to a microscope or precision inspection setup. The cable consists of a flexible stainless steel spiral-wound sheath housing the fiber bundle, with a black rubber-mounted cylindrical input tip on one end and a threaded chrome output tip on the other. The output tip accepts optional dispersing lenses via 0.25-inch threading, and a dispersing lens is included with this listing. A light source or power supply is not included.
Specifications & What's Included
- Overall cable length: 27 in (686 mm)
- Sheath: chrome / stainless steel spiral-wound flexible armor

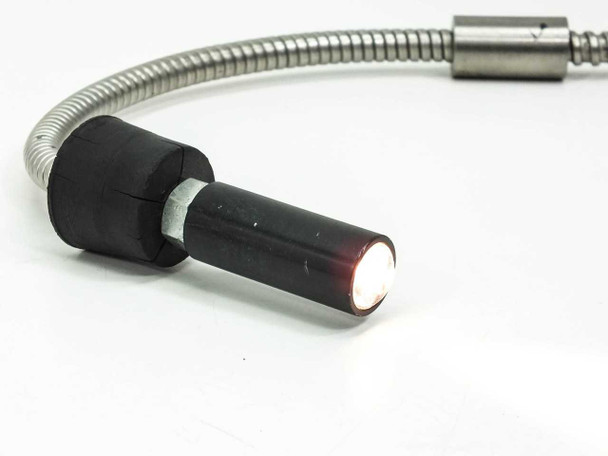

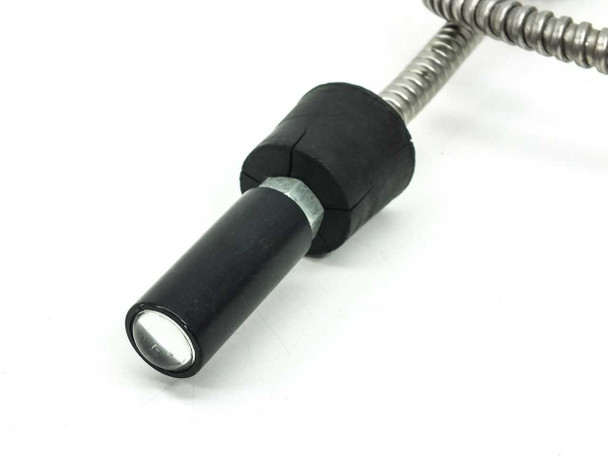

- Input light tip: 15 mm long × 15 mm diameter, black rubber-mounted cylindrical body

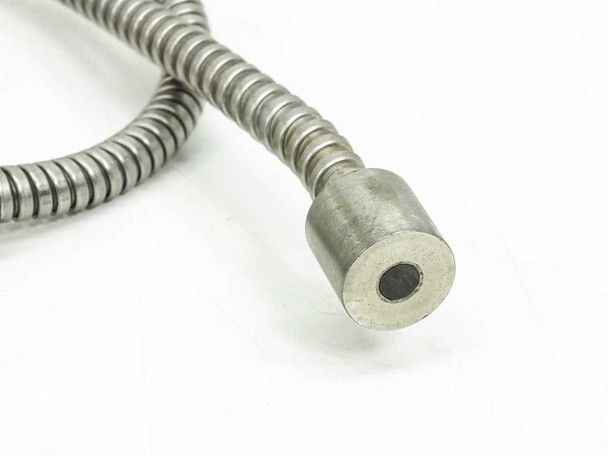

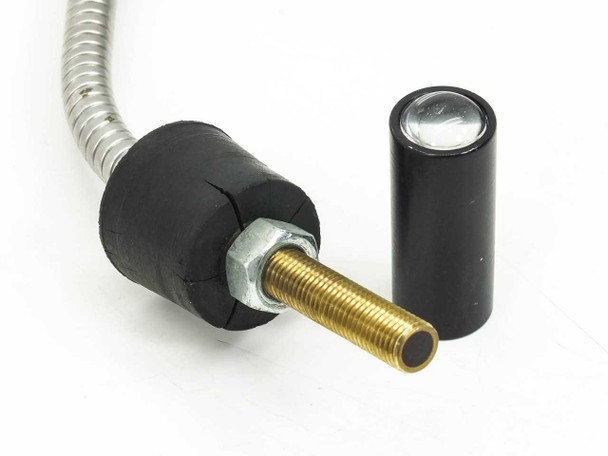

- Output tip: 0.25 in threaded shaft, 1.5 in shaft length — accepts dispersing or focusing lenses
- Dispersing lens: 1.5 in long × 0.625 in diameter — included
- Fiber bundle aperture visible at both ends (small central core, as seen in photos)
- Light source / power supply: NOT included
Applications
Fiber optic flex cables like this one are standard accessories for stereo and biological microscopes equipped with fiber optic illumination ports, as well as for bench-top inspection systems, dental equipment, and precision assembly workstations. The flexible armored sheath lets the operator position the light output at any angle without repositioning the light source itself, making them especially useful for oblique or incident lighting techniques on a microscope stage. The threaded output tip with interchangeable dispersing lenses gives the user control over the spread and intensity of the delivered beam. These cables are compatible with most fiber optic cold-light illuminators from manufacturers such as Schott, Volpi, Fostec, and similar brands that use a standard barrel-style input coupling. They remain in active everyday use in research labs, quality control stations, electronics inspection, and educational microscopy settings.
This fiber optic microscope light source flex cable has been inspected and is in good used condition. The chrome armored sheath is intact with no kinks or breaks, and the rubber coupling at the input tip shows light wear consistent with normal use. The output tip and 0.25-threaded shaft are clean and undamaged. The dispersing lens is included. Note that a light source or power supply is not included — the cable was illuminated for documentation purposes only. Please review our photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
Fiber Optic Microscope Flex Cable 27in |
Type: |
Fiber Optic Light Guide / Flex Cable |
SKU: |
46743 |
Seller Notes: |
Includes dispersing lens. Light source/power supply not included. |
Cable Length: |
27 in (686 mm) |
Input Tip Diameter: |
15 mm |
Input Tip Length: |
15 mm |
Output Tip Thread: |
0.25 in threading on 1.5 in shaft |
Dispersing Lens Dimensions: |
1.5 in long x 0.625 in diameter |
Housing Material: |
Chrome / Stainless Steel Flex Armor |
Compatible With: |
Fiber optic microscope illuminators and light sources |
Includes: |
Fiber optic flex cable, dispersing lens |
Does Not Include: |
Light source / power supply |
Form Factor: |
Flexible Arm / Cable |
Application: |
Microscope illumination, fiber optic light guide |
Condition Notes: |
This fiber optic microscope flex cable is in good used condition. Chrome sheath is intact, input and output tips are undamaged, and the dispersing lens is included. No light source included. Please view photos and contact us with questions. |
