Festo CPV-10-VI0782 CPV Valve Terminal Controller 4x Micro Valve Sub-Bases M602

(No reviews yet) Write a Review
SKU:
46169
MPN:
CPV-10-VI0782
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • Festo CPV-10-VI0782 valve terminal controller front-left view showing 4 blue micro valve sub-bases and push-in pneumatic fittings with inline filter assembly attached
  • Festo CPV-10-VI0782 CPV valve terminal controller rear-left view showing M12 circular electrical connectors and pneumatic supply inlet with filter/regulator
  • Festo CPV-10-VI0782 rating plate label showing model number 18200, M602, pressure ratings 1:-0.9 to 10 bar and 14:3.0 to 8 bar, HW and SW version dates, UL and CE marks
  • Festo CPV-10-VI0782 bottom view showing 4 micro valve sub-bases with 8 push-in pneumatic output fittings arranged in two rows
  • Festo CPV-10-VI0782 top-down close-up of 4 solenoid valve coils labeled FESTO, showing part numbers 161 415 M602 (x2) and 161 416 M502 (x2) with J and C indicator markings

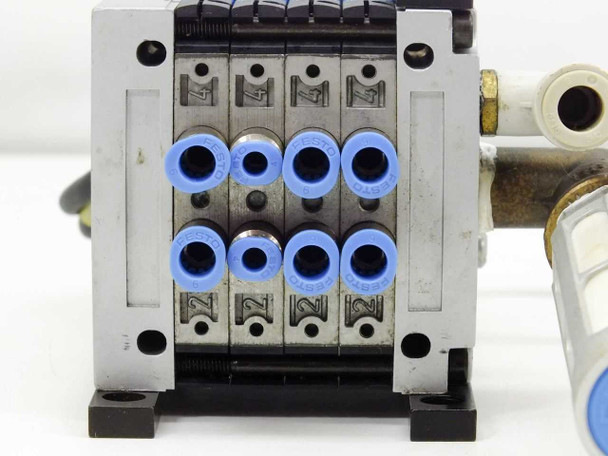

  • Festo CPV-10-VI0782 front face view showing 8 blue push-in pneumatic output ports in two rows across 4 sub-base positions

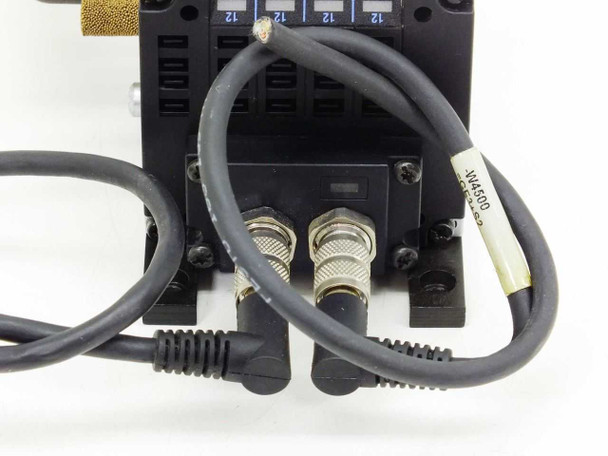

  • Festo CPV-10-VI0782 bottom electrical connection view showing two M12-style circular connectors and cable harness attached to controller base
$110.00
Was: $225.00
Current Stock: 1

Sold Out

Description

Festo CPV-10-VI0782 CPV Valve Terminal Controller 4x Micro Valve Sub-Bases M602

Pneumatic valve terminal controller from Festo's CPV series, designed to manage multiple solenoid-operated micro valve sub-bases for industrial pneumatic automation. Operates with 4 integrated M602 valve sub-bases and associated M502 solenoid valves.

Specifications & What's Included

  • Model: CPV-10-VI0782 | Hardware: HW 10.01.97 | Software: SW 01.12.95
  • 4x Micro valve sub-bases (M602 and M502 solenoids)
  • Supply pressure: -0.9 to 10 bar | Working pressure: 3.0 to 8 bar
  • Dual M12-style multi-pin electrical connectors with attached cables
  • 10mm push-in pneumatic fittings with integrated filter/regulator assembly
  • Certifications: UL, CE | Made in Germany

Applications

Used in industrial pneumatic automation systems requiring multi-channel valve control. Typical applications include machine tool automation, packaging equipment, assembly line controls, and process automation where compact valve manifolds manage multiple pneumatic actuators. Compatible with standard 24 VDC industrial control systems via the M12 connectors.

Condition: Used
This Festo CPV-10-VI0782 CPV Valve Terminal Controller has been inspected and is in good used condition. The unit includes all 4 micro valve sub-bases with M602 and M502 solenoid coils, push-in pneumatic fittings, the inline filter/regulator assembly, and the attached multi-pin electrical cables. Photos show normal surface wear consistent with prior industrial use; no cracks, broken fittings, or damaged connectors are observed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Festo
Model:
CPV-10-VI0782
MPN:
CPV-10-VI0782
Secondary Model:
18200
Type:
Pneumatic Valve Terminal Controller
SKU:
46169
Condition:
Used – Inspected and in Good Condition
Number of Valve Sub-Bases:
4
Sub-Base Model:
M602
Solenoid Valve Part Numbers:
161 415 M602 (x2), 161 416 M502 (x2)
Supply Pressure Range (Port 1):
-0.9 to 10 bar
Working Pressure Range (Port 14):
3.0 to 8 bar
Valve Size:
10mm Micro
Hardware Version:
HW 10.01.97
Software Version:
SW 01.12.95
Electrical Connection:
Multi-pin connector (2x M12-style circular connectors)
Pneumatic Connection:
Push-in fittings, 10mm tube OD
Certifications:
UL, CE
Form Factor:
Manifold / Module
Series:
CPV (Compact Performance Valve)
Application:
Industrial Pneumatic Automation
Country/Region of Manufacture:
Germany
Seller Notes:
Includes 4 micro valve sub-bases, integrated push-in pneumatic fittings, inline filter/regulator assembly, and attached multi-pin electrical cables.
Condition Notes:
Festo CPV-10-VI0782 CPV Valve Terminal Controller, inspected and in good used condition. Includes 4 micro valve sub-bases (M602/M502 solenoids), push-in fittings, filter assembly, and cables. Normal surface wear; no damage observed.
