F&B/CECO Vintage 35mm Film Splicer Motion Picture Equipment Pedestal Stand

F&B/CECO Vintage 35mm Film Splicer Motion Picture Equipment Pedestal Stand

This is a vintage pedestal-mounted 35mm film splicer produced under the F&B/CECO Inc. brand, the well-known New York City motion picture equipment dealer that operated at 315 West 43rd Street in the heart of Manhattan's film industry district. The splicer is a heavy, floor-standing unit built on a cast iron base with a tall vertical column, spring-loaded arms, a motorized or mechanically actuated splicing head, a splicing gate with registration block, and a foot pedal control — the configuration typical of professional cinema lab and editing room splicers from the mid-20th century. A red component label is visible on the splicing head assembly.

Specifications & What's Included

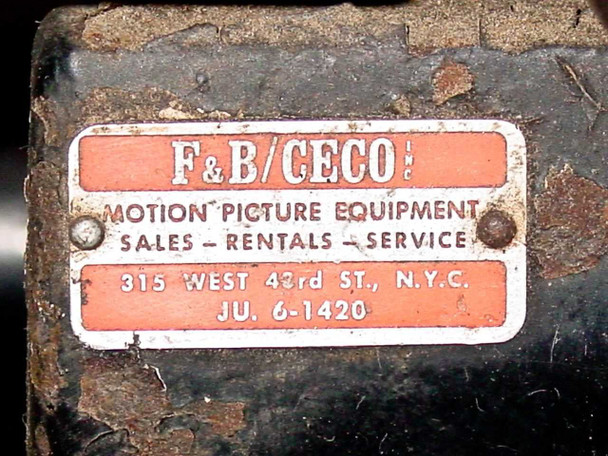

• Brand: F&B/CECO Inc., 315 West 43rd St., New York City (JU. 6-1420)
• Type: Pedestal-mount 35mm film cement splicer
• Film format: 35mm motion picture film
• Form factor: Floor-standing pedestal with heavy cast iron base
• Construction: Cast iron column, arms, and base; brass and steel splicing mechanism
• Spring-loaded tensioning arms on vertical column
• Upper splicing head with adjustable guide carriage and registration block
• Splicing gate aperture visible in lower mid-column
• Foot pedal control with attached cable

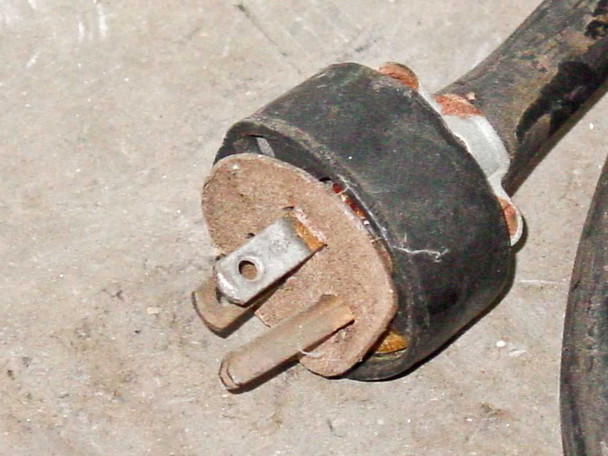

• Power cord with 3-prong plug included (attached to unit)

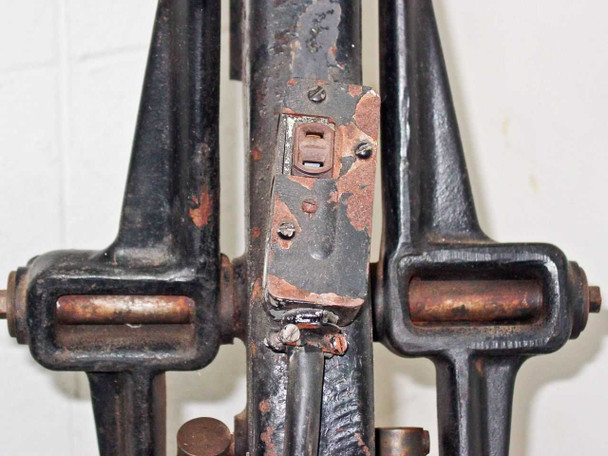

• Toggle switch on lower column
• Shipping: Local pickup or freight only — not shippable via standard parcel carriers

Applications

Film splicers of this type were standard equipment in professional motion picture labs, editing rooms, and post-production facilities from the 1930s through the 1970s. They were used to join cut sections of 35mm film using cement splicing — a technique where a small overlap of film is scraped, coated with film cement, and pressed together under heat and pressure to form a permanent bond. Pedestal-style splicers like this one were common in high-volume lab environments where editors and negative cutters worked standing at the machine rather than seated at a flatbed editing table. F&B/CECO Inc. was one of the premier motion picture equipment dealers and rental houses in the United States, serving the New York film industry from their 43rd Street location; equipment bearing their nameplate was used in professional production and post-production throughout the mid-20th century. Today, these machines are sought by film collectors, cinematography historians, prop collectors, working film archivists, and institutions maintaining 35mm projection and preservation capabilities. The unit's pedestal construction, cast iron build quality, and complete mechanical assembly make it a substantial and representative example of professional film editing infrastructure from Hollywood's classical era.
