Description
Farallon EtherMac NuBus Adapter 896071 4-00-02 Mac Ethernet NuBus Card
The Farallon EtherMac NuBus Adapter is a 10Mbps Ethernet network interface card designed for Apple Macintosh computers equipped with NuBus expansion slots. Manufactured by Farallon Computing in 1994–1995, this card adds Ethernet connectivity to NuBus-based Macs that lack built-in networking, supporting both 10Base-T twisted-pair and AUI connections from a single bracket. The assembly number on the board reads 896071 4-00-02, with a secondary sticker labeled 5000115-00-01.
Specifications & What's Included
- Manufacturer: Farallon Computing Inc.
- Product: EtherMac NuBus NSC

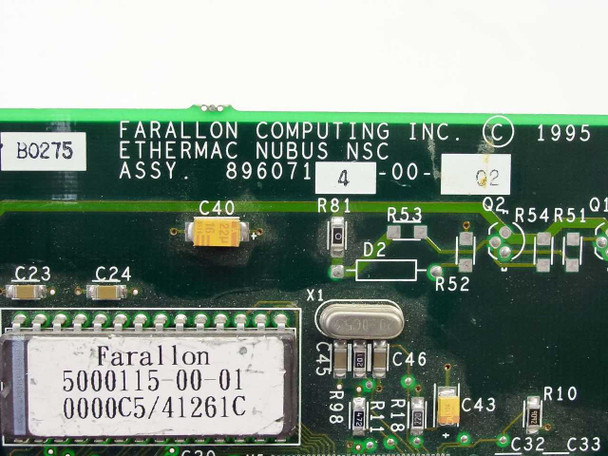

- Assembly Part Number: 896071 4-00-02
- Secondary Part Number: 5000115-00-01
- PCB Number: 1T68342-00-02, Rev 1.2
- Bus Interface: NuBus (96-pin NuBus edge connector)
- Network Standard: Ethernet 10Mbps (10Base-T and AUI)

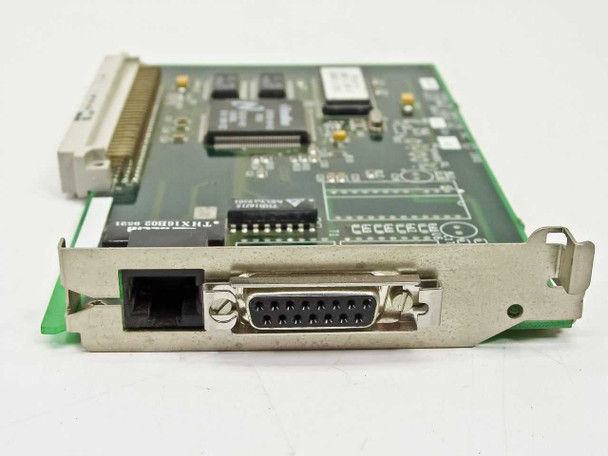

- Bracket Connectors: RJ-45 (10Base-T) and DB-15 AUI port

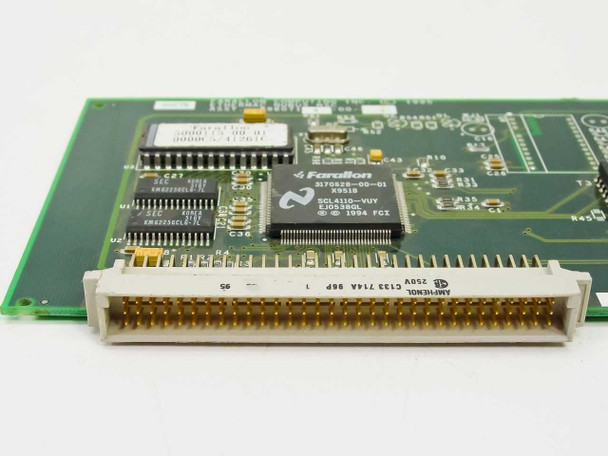

- Main Controller IC: Farallon 870825-00-01 (SCL4110-VUY), dated 1994
- Board Copyright: Farallon Computing Inc. © 1995
- Included: Card only — no cables, driver software, or documentation
Applications
NuBus was Apple's proprietary expansion bus used in Macintosh computers from the late 1980s through the mid-1990s, including the Mac II, IIx, IIcx, IIci, IIfx, and the early Quadra and Centris lines. In that era, many of these machines shipped without built-in Ethernet, and third-party NuBus cards from vendors like Farallon were the standard way to add wired network access. Farallon Computing was one of the most widely used networking brands in the Apple ecosystem during this period — their EtherMac cards are commonly found in legacy Mac IIx, IIfx, and Quadra systems still maintained for retro computing, classic Mac OS software preservation, and educational environments running vintage software. The dual RJ-45/AUI bracket allows connection to both modern 10Base-T hubs and older AUI (thicknet/thinnet transceiver) infrastructure. These cards are sought after today for restoring NuBus Macs to network functionality.
This Farallon EtherMac NuBus Adapter (896071 4-00-02) has been inspected and appears to be in good used condition. The card was pulled from a working Macintosh environment where it was previously in use. It has not been powered up or tested at our facility. The PCB is clean with no visible damage, broken traces, or missing components; normal handling and storage wear is present consistent with a used card of this era. Please view our photos and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Farallon Computing |
Model: |
EtherMac NuBus NSC |
MPN: |
896071 4-00-02 |
Secondary Model: |
5000115-00-01 |
SKU: |
42681 |
Type: |
NuBus Ethernet Network Adapter Card |
Interface: |
NuBus |
Network Standard: |
Ethernet 10Base-T / AUI (10Mbps) |
Connector Type: |
RJ-45 (10Base-T) and DB-15 AUI |
Compatible With: |
Apple Macintosh NuBus systems (Mac II, IIx, IIcx, IIfx, IIci, Quadra) |
PCB Revision: |
PCB 1T68342-00-02 |
Manufacturer Year: |
1994–1995 |
Form Factor: |
NuBus Card |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Card only — no cables, software, or documentation included. |
Condition Notes: |
This Farallon EtherMac NuBus Adapter (896071 4-00-02) is in good used condition, pulled from a working Mac environment. Not tested at our facility. PCB is clean with no visible damage. Normal age-related wear. |
