Fafnir RA103RRB+COL AG 1-1/4" Wide Inner Ring Bearing Insert Sealed Torrington

Fafnir RA103RRB+COL AG 1-1/4" Wide Inner Ring Bearing Insert Sealed Torrington

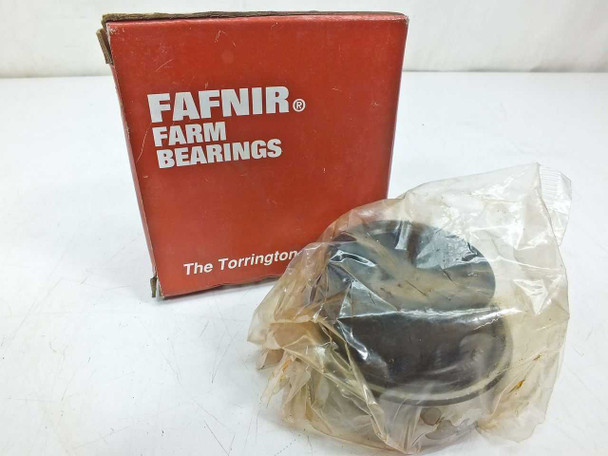

The Fafnir RA103RRB+COL AG is a wide inner ring bearing insert from Fafnir's agricultural (AG) product line, sold under the Fafnir Farm Bearings brand by The Torrington Company. The RA103RRB designation indicates a 1-1/4" bore, double-sealed (RRB) ball bearing insert with a wide inner ring for added axial load capacity. The COL suffix indicates the package includes a matched locking collar for secure shaft mounting. This is new old stock, in its original poly wrap and original red Fafnir Farm Bearings box.

Specifications & What's Included

• Model: RA103RRB + COL AG
• Brand: Fafnir (The Torrington Company)
• Series: RA100 Agricultural Series
• Bore: 1-1/4 in (1.250 in)
• Outer Diameter: 62 mm
• Width: 1-13/32 in
• Inner Ring: Wide inner ring design
• Seal Type: Sealed both sides (RRB — rubber contact seals)
• Includes: Bearing insert + locking collar (COL)
• Application Grade: Agricultural (AG)
• Condition: New old stock — original poly wrap, original box

Applications

Wide inner ring bearing inserts like the Fafnir RA103RRB are designed to mount directly into cast iron or pressed-steel pillow block, flanged, and take-up housings. The wide inner ring extends beyond the outer race on both sides, providing a larger contact surface for the locking collar and better resistance to axial loads and shaft misalignment. These bearings are standard components in agricultural machinery — including combine harvester drives, grain augers, planters, hay balers, and other power transmission shafts exposed to dirt, moisture, and vibration. The double-rubber-contact seals (RRB) keep lubricant in and contaminants out, which is especially important in field and farmyard environments. Fafnir's agricultural line was developed specifically for the demanding duty cycles found in farm equipment and remains a well-recognized choice for replacement and maintenance applications on older and current machinery.
