FW Bell

F.W. Bell 620 Gaussmeter STB4-0404 Hall Probe Gauss Meter Magnetic Field

(No reviews yet) Write a Review
SKU:
44770
MPN:
620
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
15.00 LBS
Shipping:
Calculated at Checkout

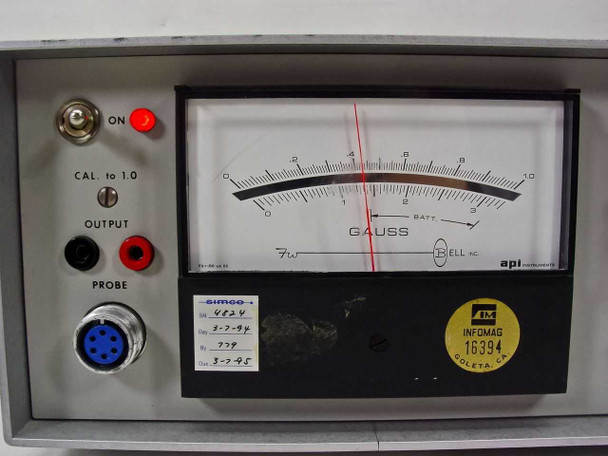

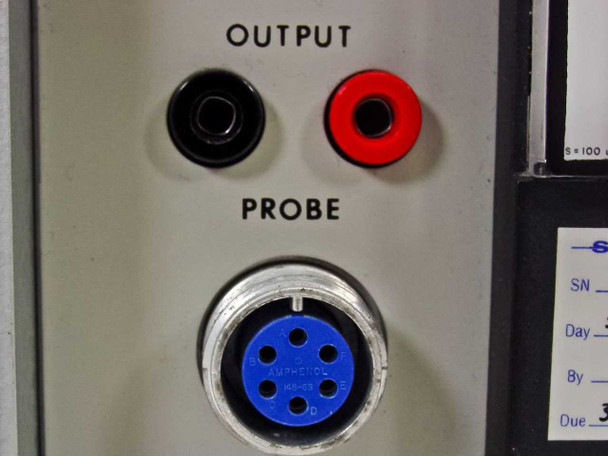

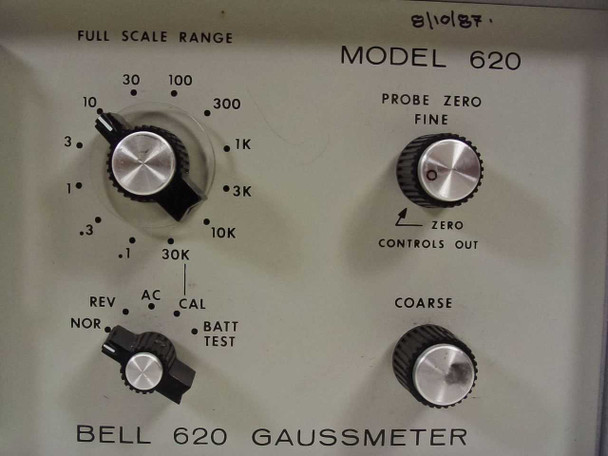

  • F.W. Bell Model 620 Gaussmeter front panel with analog meter and controls, STB4-0404 probe and foam case shown below

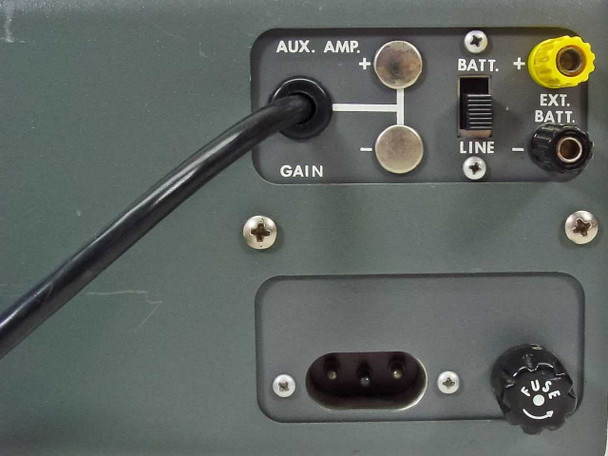

  • F.W. Bell 620 Gaussmeter rear panel showing AUX AMP banana jacks, IEC AC inlet, battery terminals, and AC power cord
  • White foam-lined probe storage case closed, showing Caution Fragile label and blue inventory sticker
  • F.W. Bell STB4-0404 Hall effect probe with cable laid out in open foam storage case
  • F.W. Bell Inc. model and serial number label on instrument chassis — Model 620, Ser. 184824, Orlando FL, Made in USA
  • F.W. Bell STB4-0404 Hall effect probe with black cable, cylindrical connector body, and warning tag

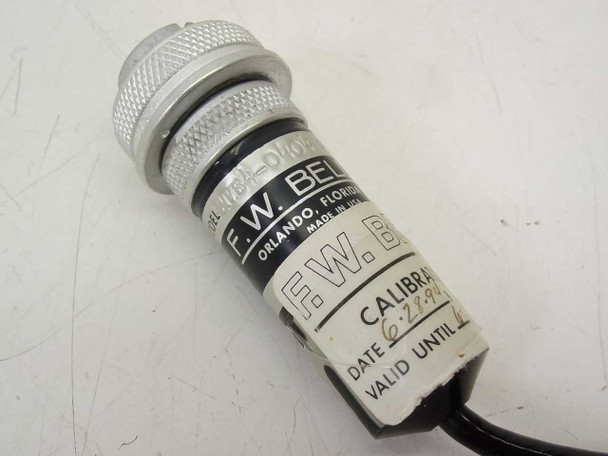

  • F.W. Bell STB4-0404 probe showing cylindrical connector end, blue label, and Hall sensor tip
  • Close-up of STB4-0404 probe tip showing Hall sensor element removed from protective sleeve alongside probe body and connector
  • Close-up of blue probe label reading FW Bell 1x on STB4-0404 Hall effect probe cable

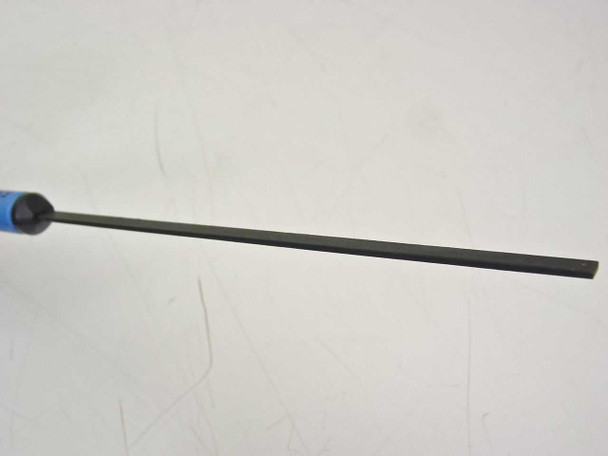

  • Close-up of STB4-0404 Hall effect probe flat sensing element / Hall chip on tip
  • F.W. Bell Model 620 Gaussmeter with STB4-0404 Probe - Gauss Meter - AS IS
  • F.W. Bell Model 620 Gaussmeter with STB4-0404 Probe - Gauss Meter - AS IS
  • F.W. Bell Model 620 Gaussmeter with STB4-0404 Probe - Gauss Meter - AS IS
  • F.W. Bell Model 620 Gaussmeter with STB4-0404 Probe - Gauss Meter - AS IS
  • F.W. Bell Model 620 Gaussmeter with STB4-0404 Probe - Gauss Meter - AS IS
  • F.W. Bell Model 620 Gaussmeter with STB4-0404 Probe - Gauss Meter - AS IS
  • F.W. Bell Model 620 Gaussmeter with STB4-0404 Probe - Gauss Meter - AS IS
  • F.W. Bell Model 620 Gaussmeter with STB4-0404 Probe - Gauss Meter - AS IS
  • F.W. Bell Model 620 Gaussmeter with STB4-0404 Probe - Gauss Meter - AS IS
  • F.W. Bell Model 620 Gaussmeter with STB4-0404 Probe - Gauss Meter - AS IS
$470.00
Was: $1,000.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

F.W. Bell 620 Gaussmeter STB4-0404 Hall Probe Gauss Meter Magnetic Field

The F.W. Bell Model 620 is an analog benchtop/portable gaussmeter designed to measure DC and AC magnetic field strength using an interchangeable Hall effect probe. It features a moving-coil analog meter display with multiple full-scale ranges, probe zero and probe range controls, and both AC mains and battery-backup operation. This unit includes the F.W. Bell STB4-0404 Hall effect probe with cable and the original foam-lined probe storage case.

Specifications & What's Included

  • Make / Model: F.W. Bell Model 620 Gaussmeter
  • Display: Analog moving-coil needle meter with multiple full-scale ranges (visible range selector knob on front panel)
  • Measurement type: DC/AC magnetic field (Gauss / Tesla)
  • Probe included: F.W. Bell STB4-0404 Hall effect probe with black cable; labeled
    Condition: For Parts or Not Working
    This F.W. Bell Model 620 Gaussmeter powers on and the analog needle responds to magnetic fields, but we were unable to calibrate the instrument and are selling it as-is with no functionality guarantee. It is being sold for parts, repair, or as a donor unit for someone with the calibration equipment to bring it into spec. The unit includes the F.W. Bell STB4-0404 Hall effect probe with cable and original foam-lined probe storage case. Cosmetically the instrument appears in good shape with normal age-related wear on the chassis. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
F.W. Bell
Model:
620
MPN:
620
Type:
Gaussmeter / Magnetic Field Meter
SKU:
44770
Seller Notes:
Includes STB4-0404 Hall probe with cable and original foam-lined probe storage case.
Country/Region of Manufacture:
United States
Form Factor:
Benchtop / Portable
Display Type:
Analog Needle (Moving-Coil Meter)
Probe Included:
Yes — F.W. Bell STB4-0404 Hall Effect Probe
Probe Model:
STB4-0404
Probe Marking:
FW Bell 1x
Measurement Type:
DC/AC Magnetic Field (Gauss / Tesla)
Probe Type:
Hall Effect
Probe Case Included:
Yes — white foam-lined storage case
Power:
AC mains via IEC inlet; battery backup option (rear BATT terminals)
Rear Connectors:
AUX AMP output (banana jacks), IEC AC inlet, battery terminals
Compatible With:
F.W. Bell gaussmeter Hall effect probes
As-Is Note:
Powers on; needle responds to field. Unable to calibrate — sold as-is.
Condition Notes:
F.W. Bell 620 Gaussmeter powers on and needle responds to magnetic fields, but calibration could not be confirmed. Sold as-is for parts or repair. Includes STB4-0404 probe and foam storage case.
