Eye Graphics UE041-401-05C UV Curing Lamp Housing 4000W Lamp V350 04-L41

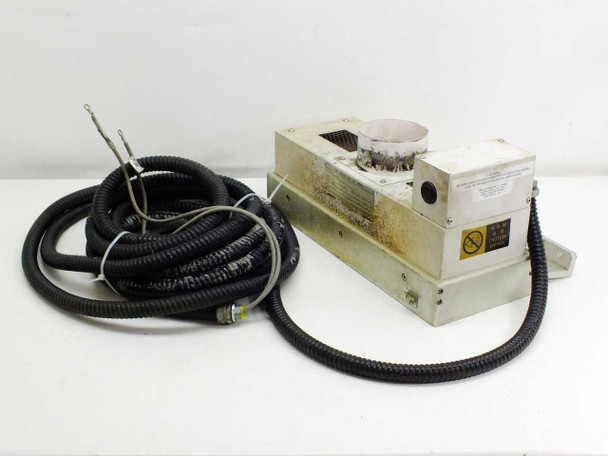

The Eye Graphics Co UE041-401-05C is a lamp housing assembly designed for UV curing applications, rated for a 4000W UV lamp (Lamp V350, Lamp H(M) 04-L41). The housing features a cylindrical lamp aperture with a flanged reflector collar and ventilation mesh panels on either side of the lamp opening to manage heat. A flexible multi-conductor cable harness is permanently attached to the unit and terminates in bare wires with ring-terminal crimp connectors. A sliding bracket/tray assembly is mounted on the underside of the housing. No UV lamp is included — housing only.
Specifications & What's Included
- Model: UE041-401-05C
- Manufacturer: Eye Graphics Co
- Type: UV Curing Lamp Housing
- Lamp Voltage Rating: V350
- Lamp Wattage: W4000 (4000W)
- Compatible Lamp Type: H(M) 04-L41
- Lamp aperture with cylindrical reflector collar and internal lamp tube/reflector assembly
- Ventilation mesh panels on both sides of lamp aperture
- Attached flexible conduit cable harness with ring-terminal wire ends
- Sliding mounting bracket/tray on underside
- UV safety warning label and Japanese-language caution labels affixed to housing
- No UV lamp included — lamp housing only
Applications
UV curing lamp housings like the UE041-401-05C are used in industrial UV curing systems common to the graphic arts, printing, and converting industries. In these systems, the housing holds and aims a high-wattage UV lamp — typically a mercury-vapor or metal-halide arc lamp — and directs UV energy at a substrate to cure inks, coatings, adhesives, or varnishes as they pass beneath the lamp. The reflector geometry inside the housing concentrates UV output onto a defined focal zone on the substrate. Eye Graphics Co equipment was used in flatbed and web-fed UV curing configurations for commercial printing, screen printing, and label production. The 4000W rating places this housing in the range typical of production-speed UV curing systems. Replacement or spare housings like this are sought for servicing existing UV curing lines where the original housing has sustained reflector degradation or mechanical damage.

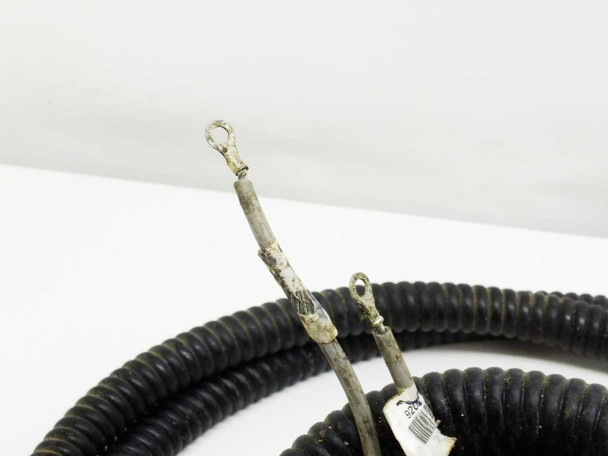

This Eye Graphics Co UE041-401-05C UV Curing Lamp Housing has been inspected and appears to be in good used condition. The housing body shows general surface soiling, scuffing, and paint wear consistent with industrial use. The lamp aperture area shows some oxidation and residue around the reflector collar. The attached flexible cable harness is included; the bare wire ends show corrosion and wear at the ring-terminal crimp points. A sliding tray/bracket assembly on the underside is present and intact. Japanese-language warning labels are affixed to the top of the unit. No lamp is included — housing only. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Eye Graphics Co |
Model: |
UE041-401-05C |
MPN: |
UE041-401-05C |
Type: |
UV Curing Lamp Housing |
SKU: |
46897 |
Lamp Voltage Rating: |
V350 |
Lamp Wattage: |
4000W |
Lamp Type: |
04-L41 (Lamp H(M) 04-L41) |
Application: |
UV Curing |
Includes: |
Lamp housing with attached flexible cable harness |
Condition: |
Used – Inspected and in good condition |
Seller Notes: |
Includes attached multi-conductor flexible cable harness with ring-terminal leads |
Condition Notes: |
Eye Graphics Co UE041-401-05C UV Curing Lamp Housing inspected and in good used condition. Shows surface soiling and paint wear. Cable harness included; wire ends show corrosion at terminals. No lamp included. Please contact us with any questions. |
