Exlar

Exlar KM60-0150-05-NF-ISC-N34-L2 Linear Actuator 2-Phase Stepper Roller Screw

(No reviews yet) Write a Review
SKU:
53240
MPN:
KM60-0150-05-NF-ISC-N34-L2
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
25.00 LBS
Shipping:
Calculated at Checkout

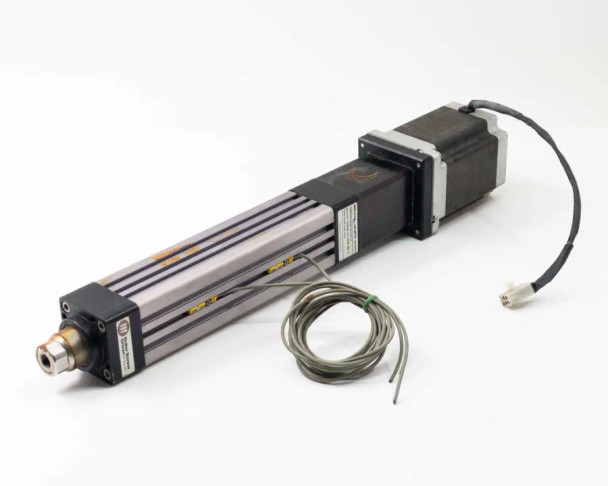

  • Exlar KM60-0150-05-NF-ISC-N34-L2 linear actuator full unit overview with Turck sensor cable and motor connector
  • Exlar KM60 roller screw linear actuator side view showing full body, stepper motor, and sensor cable
  • Exlar KM60 stepper linear actuator three-quarter view showing extruded aluminum body and NEMA 34 motor
  • Exlar KM60 actuator rod end close-up showing threaded female output fitting and flange mount plate
  • Exlar KM60 actuator output end close-up showing roller screw exit and threaded fitting with light surface rust
  • Exlar KM60 actuator rod-end flange showing Roller Screw Driven by Exlar logo label
  • Exlar KM60 NEMA 34 stepper motor rear view showing significant rust and corrosion on motor body
  • Exlar KM60 motor end showing 6-pin Molex-style connector on motor cable
  • Exlar KM60 stepper motor mount view showing rust on motor face and motor-to-actuator interface bracket
  • Exlar KM60 motor shaft end close-up showing corrosion and rust on motor housing and mounting plate
  • Exlar KM60 motor top view showing surface rust across motor body
  • Exlar KM60-0150-05-NF-ISC-N34-L2 product label showing model number, serial number, roller screw lead 5mm, Rev A
  • Exlar KM60 actuator rail detail showing yellow Turck magnetic sensors mounted in T-slot channel
  • Exlar KM60 actuator sensor cable coiled separately showing loose wire ends
  • Exlar KM60 actuator motor connector close-up showing 6-pin white Molex-style plug
$850.00
Was: $1,700.00
Current Stock: 1

Sold Out

Description

Exlar KM60-0150-05-NF-ISC-N34-L2 Linear Actuator 2-Phase Stepper Roller Screw

A NEMA 34 stepper-driven linear actuator with roller screw drive. Delivers 160 mm of travel with 5 mm screw lead and operates on 12V minimum using an external stepper driver.

Specifications & What's Included

  • Drive Type: Roller Screw
  • Motor Type: 2-Phase Stepper, NEMA 34 frame
  • Stroke: 160 mm
  • Screw Lead: 5 mm
  • Operating Voltage: 12V minimum (stepper driver required)
  • End-of-Travel Sensors: Two Turck 4685746 PNP N.C. magnetic sensors
  • Motor Connector: 6-pin Molex-style
  • Output: Female threaded rod end with flange mount
  • Includes motor cable with 6-pin connector

Applications

Roller screw linear actuators are used in laboratory automation, precision positioning equipment, assembly machinery, and telecommunications infrastructure. The stepper motor design suits applications requiring discrete positioning steps without feedback. Compatible with systems using NEMA 34 stepper drivers and standard stepper control protocols.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Exlar KM60-0150-05-NF-ISC-N34-L2 roller screw linear actuator has been tested and confirmed in working order. The 2-phase stepper motor actuates the roller screw drive and the unit travels the full 160 mm stroke. The stepper engages with 12V actuation and produces strong output torque. Both Turck 4685746 PNP N.C. magnetic end-of-travel sensors are included and set for the travel extremes. Note: the exact screw lead pitch was not confirmed during testing — the label indicates 5 mm lead. Cosmetically, the unit shows significant use: the NEMA 34 stepper motor body has heavy surface rust and corrosion visible across all faces and the mounting interface, and the rod-end output fitting shows rust around the threaded area. The aluminum actuator body and rail are in comparatively better shape with normal scratches and wear. The 6-pin motor connector and sensor cable are present and included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Exlar
Model:
KM60-0150-05-NF-ISC-N34-L2
MPN:
KM60-0150-05-NF-ISC-N34-L2
Type:
Roller Screw Linear Actuator
SKU:
53240
Series:
KM Series
Drive Type:
Roller Screw
Motor Type:
2-Phase Stepper
Motor Frame Size:
NEMA 34 (N34)
Stroke / Travel:
160 mm (16 cm)
Screw Lead:
5 mm
Actuation Voltage:
12V minimum (stepper driver required)
End-of-Travel Sensors:
Turck 4685746 PNP N.C. magnetic sensors
Sensor Configuration:
Set for travel extremes (2 sensors included)
Motor Connector:
6-pin Molex-style connector
Output End:
Female threaded rod end / flange mount
Hardware Revision:
Rev A
Condition:
Used – Inspected and Tested
Seller Notes:
Includes Turck 4685746 magnetic sensors and motor cable with 6-pin connector
Country/Region of Manufacture:
United States
Condition Notes:
Exlar KM60-0150-05-NF-ISC-N34-L2 linear actuator tested and working. Full 160mm travel confirmed, stepper engages at 12V. Turck sensors included. Motor body has heavy rust/corrosion cosmetically. Functional.
