Description
Exide PowerWare PowerPass Cabinet UPS 208:120 L5-30R 4000W 43.3A No Battery
This is a bypass/PowerPass cabinet designed to work with Exide PowerWare UPS systems. It provides power distribution and switching capability between utility and UPS sources.
Specifications & What's Included
- Input: 208 VAC, 24A max, L5-30R twist-lock connector
- Output: 120 VAC, 43.3A max, 4000W total power rating
- Eight NEMA 5-20R receptacles on rear panel
- Single phase, 50/60 Hz, 0.90 power factor
- Compatible with Exide PowerWare 4500P6HV and 6000P6HV UPS models

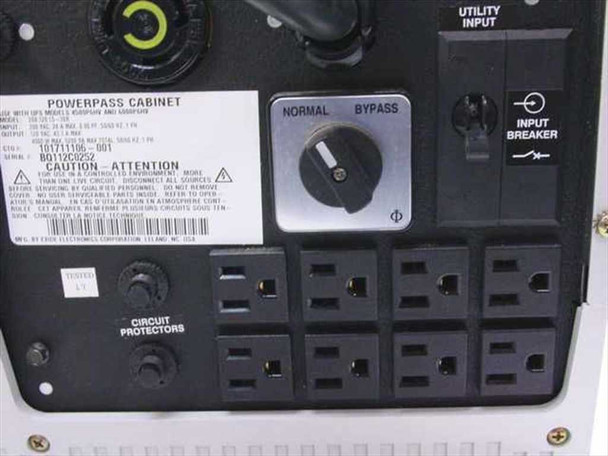

- Normal/Bypass rotary switch; rear-mounted input breaker

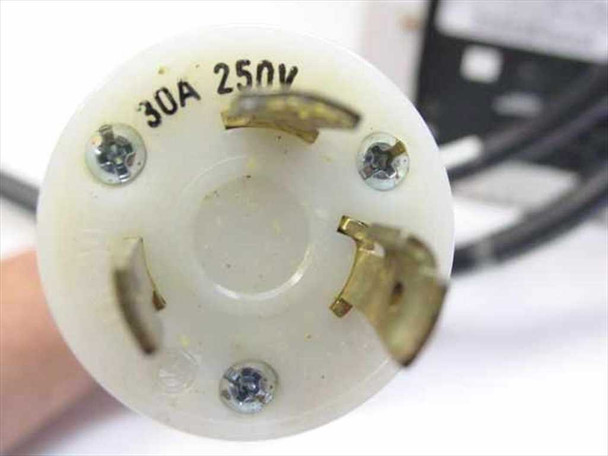

- Includes power cable with L5-30P plug (30A 250V)
- Dimensions: 40 x 14 x 10 inches
Applications
PowerPass cabinets distribute power from UPS systems to multiple outlets in telecom and industrial environments. This unit integrates with PowerWare high-voltage UPS models to provide step-down distribution to standard 120V equipment. Typically used in data centers, server rooms, and critical infrastructure installations requiring redundant power paths and load distribution.
Condition: For Parts or Not Working

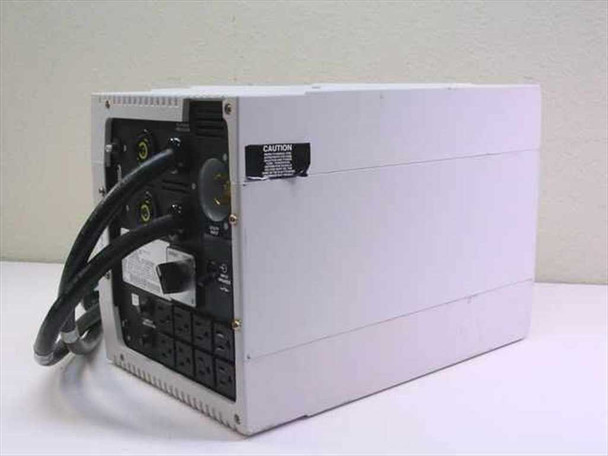

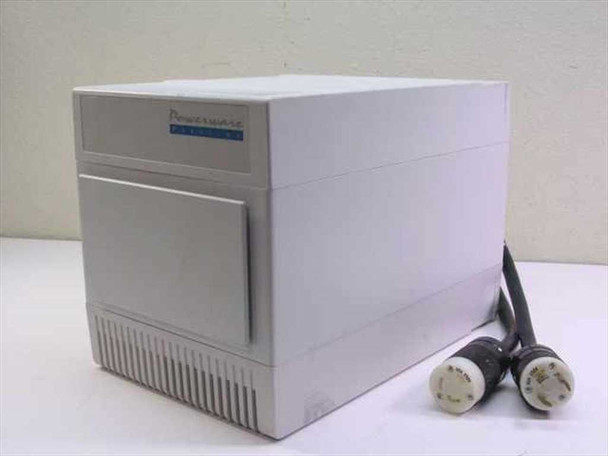

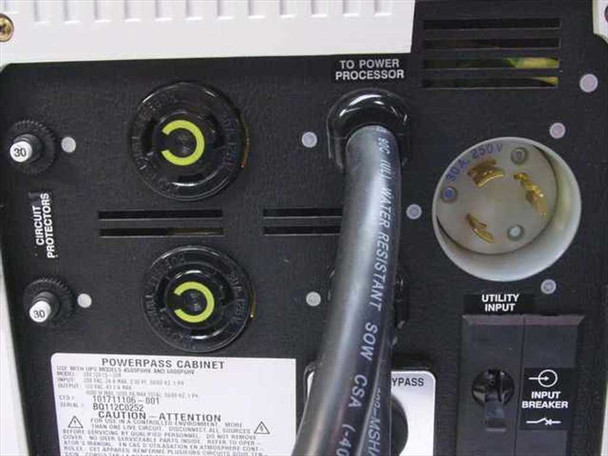

This Exide PowerWare PowerPass Cabinet UPS (Model 208:120 L5-30R) is being sold as-is for parts or repair. It does not include batteries and we were unable to fully test it at our facility. The cabinet itself appears intact with no significant physical damage; the rear panel rotary bypass switch, circuit protectors, output receptacles, and input breaker are all visible and present. A power cable with 30A 250V twist-lock plug is included. Please view our photo set and contact us if you have any questions.
This Exide PowerWare PowerPass Cabinet UPS (Model 208:120 L5-30R) is being sold as-is for parts or repair. It does not include batteries and we were unable to fully test it at our facility. The cabinet itself appears intact with no significant physical damage; the rear panel rotary bypass switch, circuit protectors, output receptacles, and input breaker are all visible and present. A power cable with 30A 250V twist-lock plug is included. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Exide Electronics (PowerWare) |
Model: |
208:120 L5-30R |
MPN: |
101711106-001 |
SKU: |
31632 |
Type: |
UPS Bypass / PowerPass Cabinet |
Compatible With 1: |
Exide PowerWare UPS Model 4500P6HV |
Compatible With 2: |
Exide PowerWare UPS Model 6000P6HV |
Input Voltage: |
208 VAC |
Input Current: |
24 A Max |
Output Voltage: |
120 VAC |
Output Current: |
43.3 A Max |
Power Rating: |
4000 W Max Total |
Phase: |
Single Phase (1 PH) |
Frequency: |
50/60 Hz |
Power Factor: |
0.90 PF |
Input Connector: |
L5-30R Twist-Lock |
Output Receptacles: |
Multiple NEMA 5-20R (8 visible on rear panel) |
Circuit Protectors: |

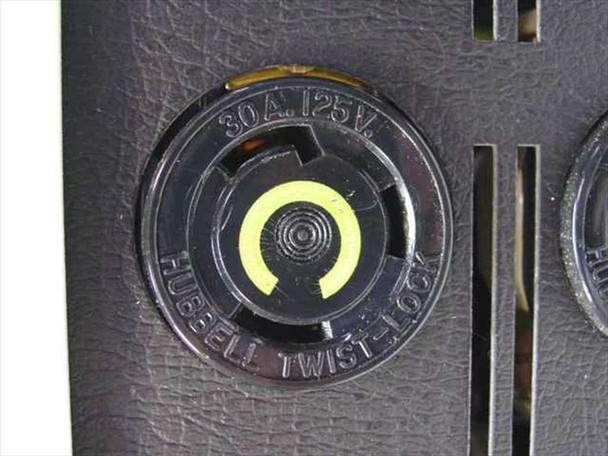

Hubbell Twist-Lock 30A 125V (2 visible) |
Bypass Switch: |
Normal / Bypass rotary switch |
Input Breaker: |
Yes — rear panel mounted |
Batteries Included: |
No |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
No batteries included. Sold as-is for parts or repair. Includes power cable with L5-30P plug (30A 250V). |
Country/Region of Manufacture: |
United States (Leland, NC) |
Form Factor: |
Desktop Cabinet |
Dimensions: |
40 in x 14 in x 10 in |
Condition Notes: |
Exide PowerWare PowerPass Cabinet UPS 208:120 L5-30R sold as-is for parts or repair. No batteries included; could not be fully tested. Cabinet and hardware appear intact. Power cable with L5-30P plug included. |
