Everex EV-815 MCA Tape Controller Card PWA-00246 Everex Systems MCA Bus

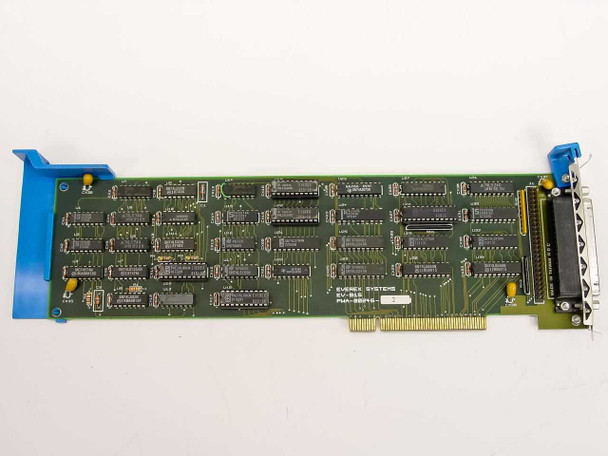

The Everex EV-815 is a Micro Channel Architecture (MCA) tape controller card designed for use in IBM PS/2 and compatible systems equipped with the MCA bus. It provides a dedicated interface for connecting tape backup drives to MCA-based systems, handling data transfer and control functions between the host system and the attached tape device. The board carries the part number PWA-00246 and is silkscreened with the Everex Systems branding.
Specifications & What's Included
- Manufacturer: Everex Systems
- Model: EV-815
- Part Number: PWA-00246
- Bus Interface: MCA (Micro Channel Architecture) — full-length card
- External Connector: 50-pin high-density D-sub tape interface connector on rear bracket
- Onboard ICs: SN74LS688N, DM74LS245N logic ICs and additional DIP logic array (visible on PCB)
- Form Factor: Full-length MCA expansion card with blue card brackets
- Included: Card only — no cables or accessories
Applications
The EV-815 was designed for IBM PS/2 computers and other systems using IBM's proprietary Micro Channel Architecture bus, introduced in the late 1980s. MCA replaced the older ISA bus in IBM's PS/2 line and offered bus mastering and improved data throughput. Tape controller cards like the EV-815 were used to connect QIC or other tape backup drives to PS/2 workstations and servers for data backup and archival purposes. This card is relevant today for legacy PS/2 system maintenance, retrocomputing projects, and restoration of period-correct IBM PS/2 configurations.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

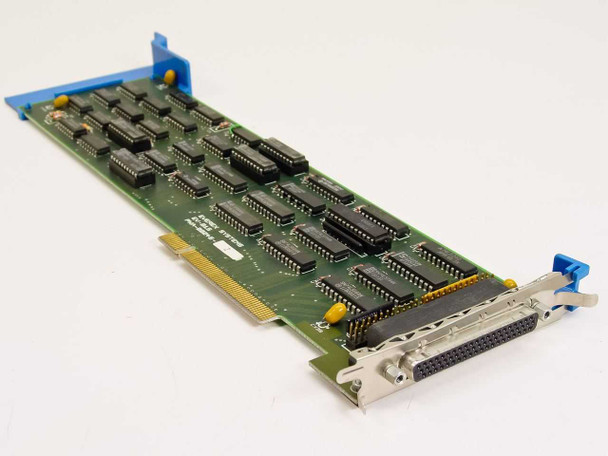

This Everex EV-815 MCA Tape Controller Card (PWA-00246) has been inspected and appears to be in good used condition. The PCB is clean with no visible cracked traces, burnt components, or physical damage. The MCA edge connector gold fingers are intact and show normal oxidation consistent with prior installation. The external 50-pin D-sub tape interface connector is present and in good shape. Minor surface dust and light handling marks are visible on the board, consistent with normal prior use. This card has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Everex Systems |
Model: |
EV-815 |
MPN: |
PWA-00246 |
Type: |
MCA Tape Controller Card |
SKU: |
7538 |
Bus Interface: |
MCA (Micro Channel Architecture) |
Form Factor: |
MCA Full-Length Card |
Compatible With: |
IBM PS/2 Micro Channel Architecture systems |
Connector Type: |
50-pin D-sub (high-density) tape interface connector |
Condition: |
Used – Inspected |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Card only; no cables or accessories included. |
Condition Notes: |
Everex EV-815 MCA Tape Controller Card PWA-00246. Inspected; PCB clean, MCA edge connector and 50-pin D-sub intact. Shows light use wear. Not bench-tested. Card only, no cables. |
