Everex

Everex EV-170 8-Bit ISA I/O Controller Card Parallel Serial Ports PWA00021

(No reviews yet) Write a Review
SKU:
23027
MPN:
EV-170
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

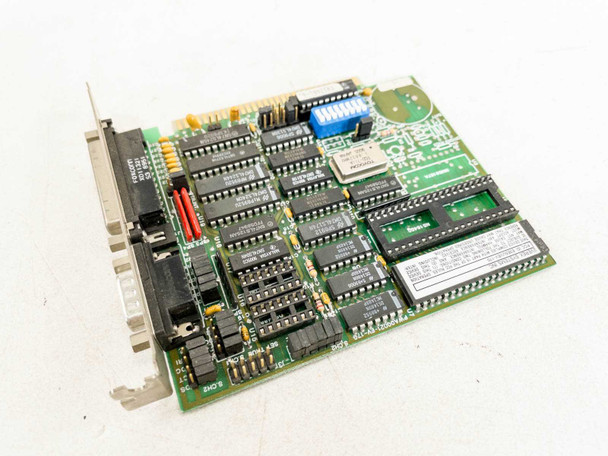

  • Everex EV-170 PWA00021 8-bit ISA I/O controller card – top component side view showing full PCB layout with ICs and ISA edge connector
  • Everex EV-170 PCB close-up showing Motorola MC1489AN and MC1488P RS-232 line driver chips and PWA00021 EV-170 board marking
  • Everex EV-170 ISA I/O card – reverse-angle top view showing chip arrangement, blue DIP switch bank, and ISA bus edge connector

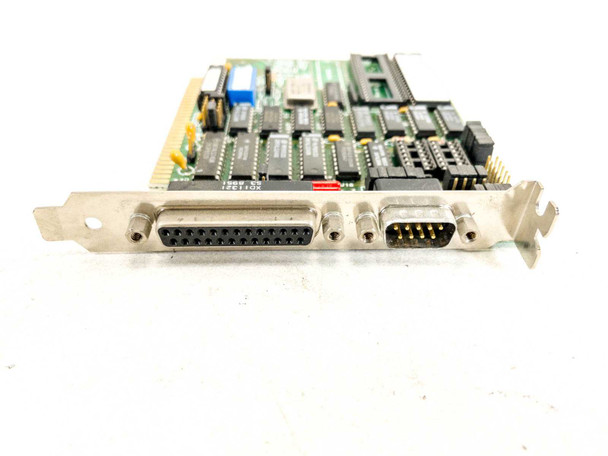

  • Everex EV-170 card bracket view showing DB25 parallel port connector and DB9 serial port connector on the rear bracket

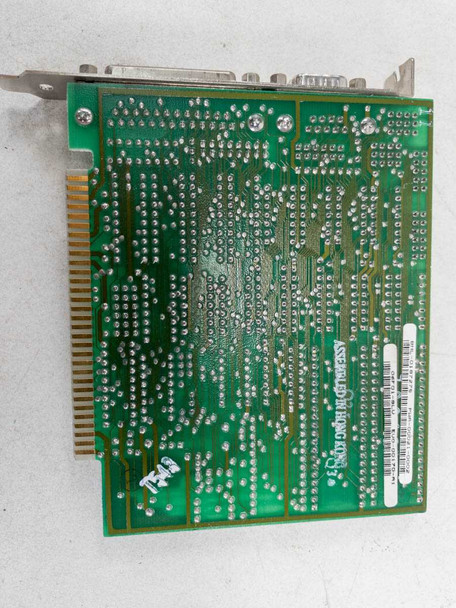

  • Everex EV-170 ISA I/O card – PCB solder side showing ISA gold-finger edge connector and 'Assembled in Hong Kong' marking
$22.00
Was: $40.00
Current Stock: 11

Sold Out

Description

Everex EV-170 8-Bit ISA I/O Controller Card Parallel Serial Ports PWA00021

8-bit ISA expansion card that adds parallel and serial port connectivity to legacy computer systems. Features one DB25 parallel port and one DB9 RS-232 serial port with Motorola line driver/receiver chips.

Specifications & What's Included

  • Brand: Everex | Model: EV-170 | MPN: PWA00021
  • Bus Interface: 8-Bit ISA (full-length card)
  • Ports: 1x DB25 Parallel, 1x DB9 Serial (RS-232)
  • Controller Chips: Motorola MC1488P, MC1489AN
  • Manufactured: Hong Kong
  • Card only; no cables or accessories

Applications

This card type was used to expand I/O capabilities in IBM PC, PC/XT, and compatible systems running on 8-bit ISA architecture. It provided connectivity for parallel printers, modems, and serial peripherals. Compatible with systems from the 1980s through early 1990s that required additional or replacement serial and parallel ports.

Condition: Used
This Everex EV-170 8-bit ISA I/O controller card has been inspected and is in good condition. The PCB is clean with no visible damage, broken traces, or missing components. The DB25 parallel and DB9 serial port bracket connectors are intact and undamaged. The ISA gold-finger edge connector shows normal oxidation consistent with age but no significant corrosion. The board shows light shelf wear typical of a vintage card of this era. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Everex
Model:
EV-170
MPN:
PWA00021
SKU:
23027
Type:
8-Bit ISA I/O Controller Card
Bus Interface:
8-Bit ISA
Ports:
1x DB25 Parallel, 1x DB9 Serial (RS-232)
Form Factor:
Full-Length ISA Card
Controller Chips:
Motorola MC1488P, MC1489AN (RS-232 line drivers/receivers)
PCB Number:
PWA00021
Country/Region of Manufacture:
Hong Kong
Compatible With:
IBM PC, PC/XT, and compatible 8-bit ISA systems
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; no cables or accessories included.
Condition Notes:
Everex EV-170 8-bit ISA I/O card has been inspected and is in good condition. PCB is clean, no visible damage, connectors intact. Normal age-related wear on ISA edge connector. Card only, no cables.
