The Eventide WPB-109 is a 4-port IEEE-488/GPIB Intelligent Buffer from Eventide's Expressway line, designed to extend and isolate IEEE-488 instrument buses in test and measurement environments. It allows a controller to communicate with instruments across longer cable runs or larger device counts than the IEEE-488 standard permits natively, effectively boosting bus drive capability and reducing loading on the controller.

Specifications & What's Included

• Brand: Eventide Inc., Little Ferry, NJ — Made in USA
• Model: WPB-109 (also labeled WPB109)
• Series: Expressway
• Type: GPIB / IEEE-488 Intelligent Buffer
• Ports: 4 rear-panel ports (PORT 0 – PORT 3) with Centronics 24-pin IEEE-488 connectors

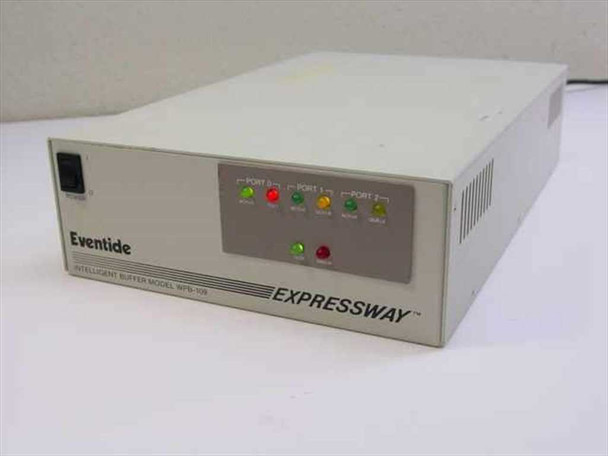

• Front panel: 3-zone LED status array (PORT 0, PORT 1, PORT 2) with green, yellow, and red indicators
• Power: 115/230 VAC switchable, IEC C14 inlet
• Voltage configured: 115V
• Fuse: ¼A @ 230V / ⅜A @ 115V
• Memory option installed: 2MB
• Front-panel power switch (rocker, I/O)
• Form factor: Desktop
• Unit only — no cables or accessories included

Applications
