Description
Eurotherm 847 Temperature Controller 0-1200C PL2 Thermocouple DC Out 105197
The Eurotherm 847 is a compact horizontal-mount panel temperature controller designed for precise process temperature management in industrial furnace and heating applications. This unit carries part number 105197 and was pulled from a Lindberg furnace. It accepts a PL2 thermocouple input and provides a DC control output over a 0–1200°C range.
Specifications & What's Included
- Manufacturer: Eurotherm Controls Inc (Reston, VA)
- Model: 847
- Part Number: 105197

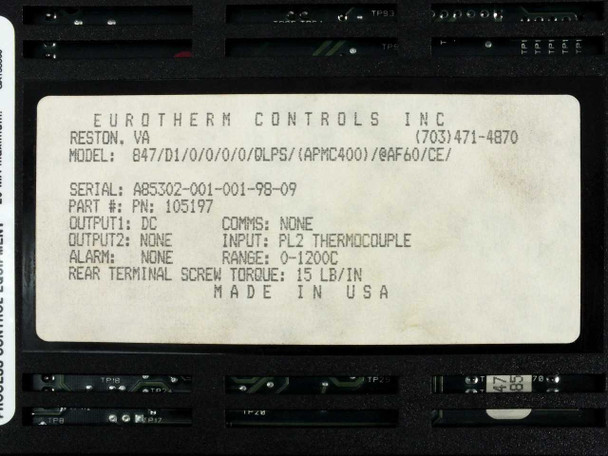

- Full Model Code: 847/D1/0/0/0/0/QLPS/(APMC400)/@AF60/CE
- Temperature Range: 0–1200°C
- Input: PL2 Thermocouple
- Output 1: DC
- Output 2: None
- Communications: None
- Alarm: None

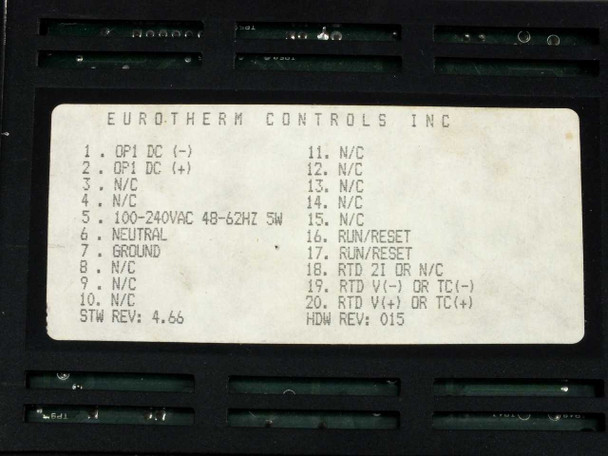

- Supply Voltage: 100–240VAC, 48–62Hz, 5W
- Mounting: Horizontal / panel mount
- Rear terminal screw torque: 15 LB/IN
- Software Revision: STW Rev 4.66
- Hardware Revision: HDW Rev 015
- Country of Manufacture: USA
- Previously installed in a Lindberg furnace
Applications
The Eurotherm 847 series is a PID-based temperature controller widely used in laboratory and industrial furnaces, kilns, ovens, and heat-treatment systems. Eurotherm has long been a standard supplier of process controllers for high-temperature applications in materials science, metallurgy, ceramics, and semiconductor processing environments. The 847 fits standard panel cutouts in a horizontal orientation, making it a direct-fit replacement for existing Eurotherm installations in equipment like Lindberg tube furnaces and box furnaces. The PL2 (Type B platinum-rhodium) thermocouple input is specifically suited for very high temperature ranges, typical of the 1200°C-capable furnaces this controller was designed to work with. Controllers of this type are still actively used in both production and research settings for maintaining tight temperature profiles and setpoints.
This Eurotherm 847 Temperature Controller (PN 105197) was pulled from a Lindberg furnace in a working environment where it was previously in service. It has been visually inspected and shows normal wear consistent with industrial use. The front panel display, buttons, and labels are intact and legible. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Eurotherm |
Model: |
847 |
MPN: |
105197 |
Secondary Model: |
847/D1/0/0/0/0/QLPS/(APMC400)/@AF60/CE |
SKU: |
51587 |
Type: |
Temperature Controller |
Mounting Style: |
Horizontal / Panel Mount |
Temperature Range: |
0-1200°C |
Input Type: |
PL2 Thermocouple |
Output 1: |
DC |
Output 2: |
None |
Communications: |
None |
Alarm: |
None |
Supply Voltage: |
100-240VAC, 48-62Hz, 5W |
Software Revision: |
STW Rev 4.66 |
Hardware Revision: |
HDW Rev 015 |
Rear Terminal Screw Torque: |
15 LB/IN |
Compatible With: |
Lindberg Furnace |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Controller only — no mounting hardware or cables included. |
Condition Notes: |
This Eurotherm 847 Temperature Controller (PN 105197) was pulled from a Lindberg furnace. Visually inspected; shows normal industrial wear. Front panel and labels are intact. Not bench-tested at our facility. Please contact us with any questions. |
