Description
Eureka Superflex 150 KVP X-Ray Cable Assembly 21 ft Shockproof 6525-386-9941

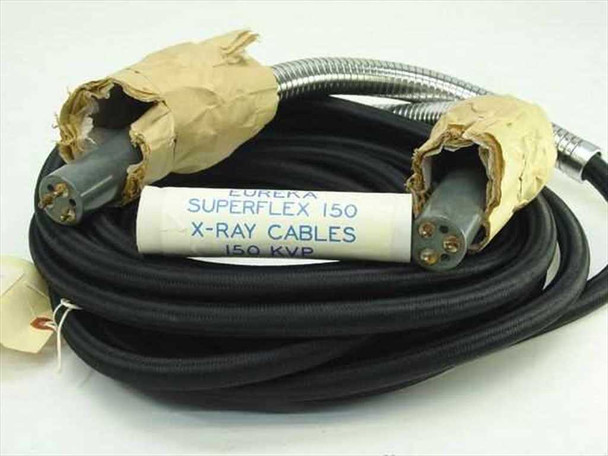

This is a new old stock Eureka X-Ray Tube Corp Superflex 150 KVP special purpose electrical shockproof X-ray cable assembly, 21 feet in length. Manufactured by Eureka X-Ray Tube Corp of Chicago, Illinois, this cable assembly was procured under U.S. government contract DSA 120-67-C-3313 and carries National Stock Number (NSN) 6525-386-9941. It is unused and retains its original protective paper wrapping on both connector ends along with its original procurement label tag.
Specifications & What's Included
- Manufacturer: Eureka X-Ray Tube Corp, Chicago, Illinois
- Cable designation: Superflex 150
- Voltage rating: 150 KVP (kilovolt peak)
- Cable type: Special Purpose Electrical Shockproof X-Ray Cable Assembly
- Length: 21 feet (approximately 6.4 meters)
- Connectors: 4-pin high-voltage X-ray tube connectors, both ends
- Outer jacket: Black braided flexible jacket
- End termination: Metal flexible conduit armor at each connector end
- NSN: 6525-386-9941
- Contract number: DSA 120-67-C-3313
- Quantity: 1 cable assembly
- Condition: New old stock — unused, original wrapping intact
Applications
High-voltage X-ray cable assemblies like the Eureka Superflex 150 are used to connect X-ray tube heads to their high-voltage generators in medical radiography, fluoroscopy, and industrial or military NDT (non-destructive testing) X-ray systems. The 150 KVP rating indicates the cable is designed to safely carry voltages up to 150 kilovolts peak — the level required for diagnostic and many industrial X-ray applications. The shockproof construction and flexible braided jacket allow safe routing from the generator to the tube housing, protecting personnel and equipment from the high voltages involved. Cables meeting government NSN specifications were commonly used in military field radiography equipment, VA and military hospital X-ray systems, and government-contracted NDT inspection programs. This type of cable remains relevant for legacy military and older medical X-ray equipment still in service, as well as for industrial radiography systems requiring a 4-pin 150 KVP interconnect.
This Eureka Superflex 150 KVP X-Ray Cable Assembly is new old stock — unused and in its original, uninstalled state. The cable retains its original protective paper wrapping on both connector ends and carries its original government procurement label tag (NSN 6525-386-9941, DSA 120-67-C-3313). The black braided outer jacket and metal-armored flex conduit at each end appear clean with no cuts, kinks, or abrasion. Both 4-pin high-voltage connector ends are intact. Some age-related discoloration on the connector bodies and wrapping paper is consistent with storage and does not affect the cable itself. Please view our photo set and contact us if you have any questions.
Thanks for your interest. Recycled Goods Inc., Ventura, CA.
FDA Regulation and Certification: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not purchase this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping.
Upon receipt, it is the BUYER'S responsibility to have this instrument checked and certified for use by a qualified Technician prior to placing it into use or service.
Warranty Information
Additional Information
Brand: |
Eureka X-Ray Tube Corp |
Model: |
Superflex 150 |
MPN: |
6525-386-9941 |
Type: |
Special Purpose Electrical Shockproof X-Ray Cable Assembly |
SKU: |
33809 |
NSN: |
6525-386-9941 |
Contract Number: |
DSA 120-67-C-3313 |
Voltage Rating: |
150 KVP |
Cable Length: |
21 ft (approximately 6.4 m) |
Cable Type: |
High Voltage Shockproof X-Ray Cable |
Connector Type: |
4-pin X-ray tube connector (both ends) |
Jacket / Armor: |
Black braided outer jacket with metal-armored flex conduit ends |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Cable assembly only — 1 ea., as described on original label tag. |
Application: |
Medical / industrial X-ray tube high-voltage interconnect |
Standards / Specification: |
U.S. Military / Government procurement (NSN, DSA contract) |
Condition Notes: |
This Eureka Superflex 150 KVP X-Ray Cable Assembly (NSN 6525-386-9941) is new old stock — unused, with original paper wrapping on connectors and label tag intact. Jacket and connectors appear clean. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
