Esterline Angus L1102S Strip Chart Recorder Rackmount Multi-Channel

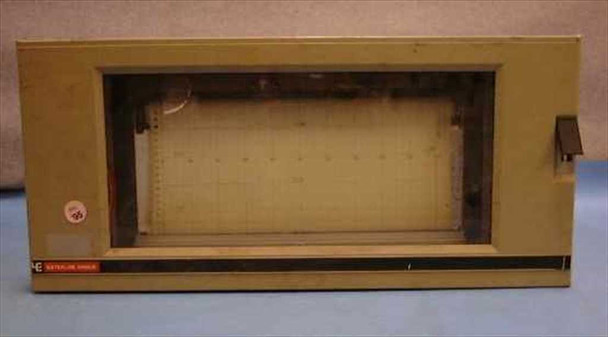

The Esterline Angus L1102S is a rackmount analog strip chart recorder designed for continuous multi-channel data recording on paper roll stock. The unit accepts plug-in input modules on both the left and right sides of the chassis, allowing flexible channel configuration for monitoring voltage, current, temperature, or other process signals over time. The front door features a full-width glass window for viewing the chart paper without interrupting the recording process.
Specifications & What's Included
- Manufacturer: Esterline Angus
- Model: L1102S
- Type: Rackmount strip chart recorder
- Form factor: Rackmount (horizontal chassis)
- Input modules: 2 plug-in modules installed (red binding post inputs, one per side)
- Recording medium: Paper roll / strip chart
- Front door: Full-width glass viewing window with latch
- Paper roll: Installed and present (supply and take-up rolls visible)
- Internal mechanism: Paper transport motor and ink delivery system visible in photos
- Included: Unit with two installed input modules and paper roll
Applications
Strip chart recorders like the Esterline Angus L1102S are used in industrial process monitoring, laboratory environments, and utility/power generation facilities to create a continuous, time-stamped paper record of analog signals — such as temperature, pressure, voltage, or current — over hours, days, or longer periods. Esterline Angus was a well-regarded American manufacturer of recording instruments, and their rackmount L-series recorders were commonly deployed in power plants, industrial control rooms, and research facilities from the 1970s through the 1990s. The plug-in module architecture allowed operators to configure the recorder for different input signal types without replacing the whole unit. Today these instruments are sought by facilities maintaining older process monitoring systems, as well as collectors and restorers of vintage instrumentation.
This Esterline Angus L1102S Strip Chart Recorder was removed from a working environment and is in good cosmetic condition overall. The unit powers up but has not been tested beyond that at our facility, so it is being sold as-is with no warranty. The exterior shows typical wear for a unit of its age, and the chart paper and internal transport mechanism appear intact as shown in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Esterline Angus |
Model: |
L1102S |
MPN: |
L1102S |
Type: |
Strip Chart Recorder |
SKU: |
12995 |
Form Factor: |
Rackmount |
Recording Medium: |
Paper Roll / Strip Chart |
Number of Channels: |
2 (dual input modules visible) |
Input Module Configuration: |
2 plug-in input modules (red binding post inputs) |
Seller Notes: |
Includes installed paper roll and two plug-in input modules |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Esterline Angus L1102S strip chart recorder removed from working environment. Powers up but not further tested. Sold as-is, no warranty. Good cosmetic condition. Please contact us with any questions. |
