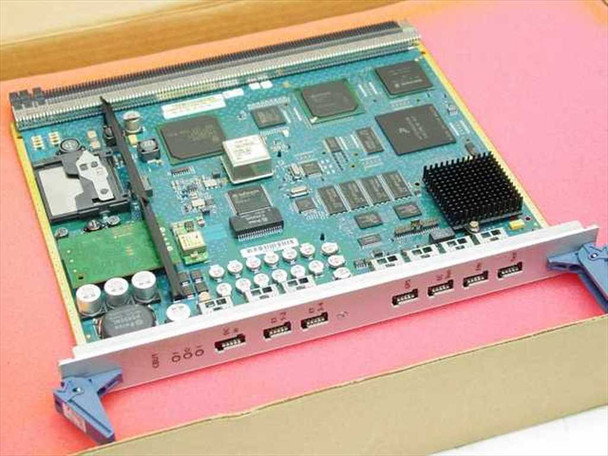

Ericsson ROJ1192209/1 CBU1 Control Base Unit Card R4B TU89000739
Control Base Unit Card for Ericsson RBS telecom base stations. This PCB module manages system control, timing, and communications functions within the RBS radio base station architecture.
Specifications & What's Included
- Model: ROJ1192209/1 | Hardware Revision: R4B
- Manufacture Date: June 2011

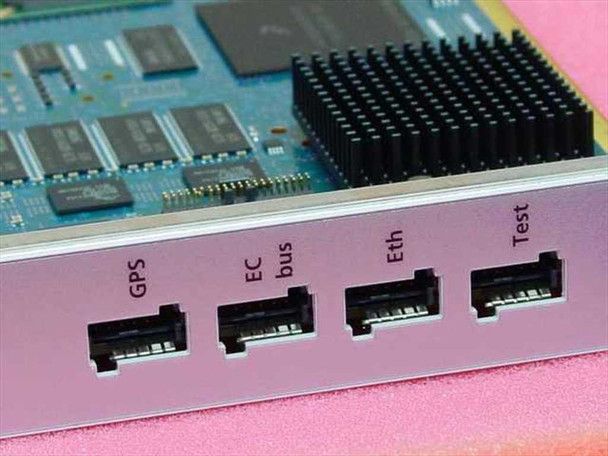

- Interfaces: GPS, EC bus, Ethernet, DC input, Test

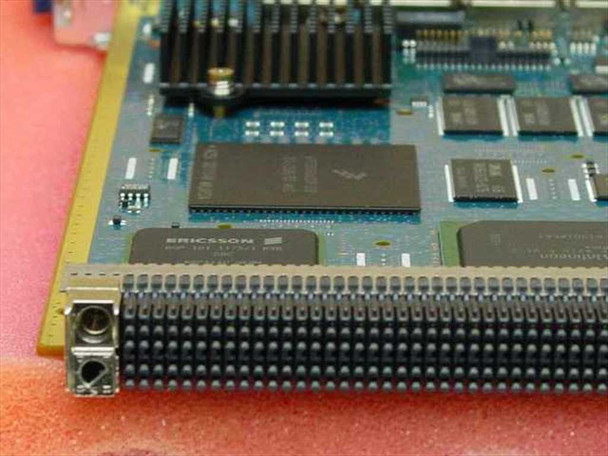

- Connectors: Four mini DisplayPort-style headers (front), backplane edge connector

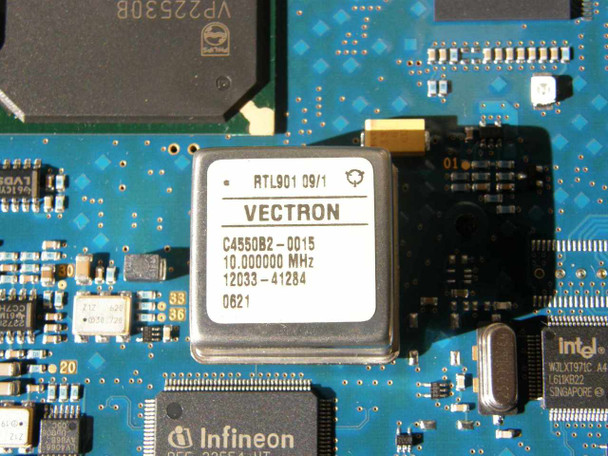

- Oscillator: Vectron C4550B2-0015, 10 MHz reference

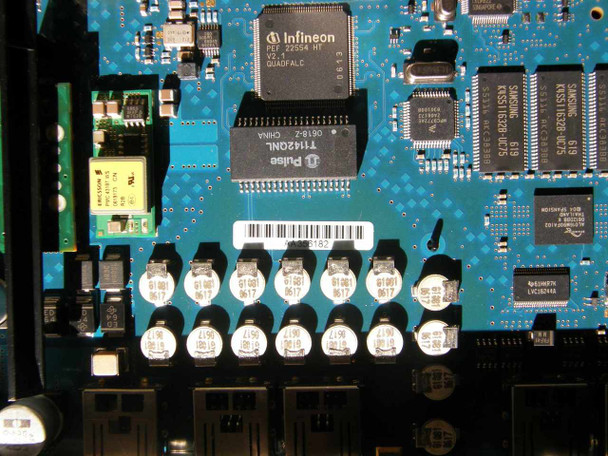

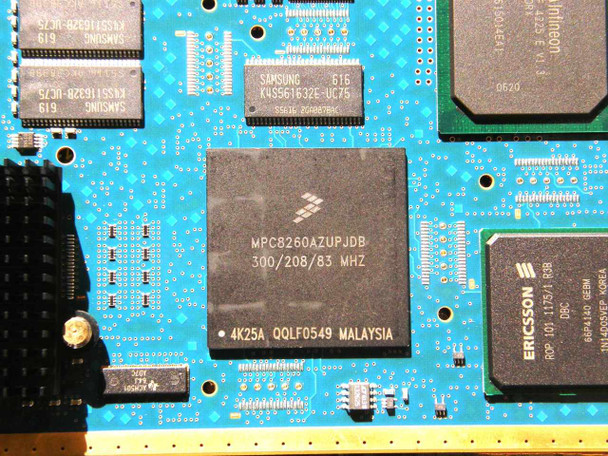

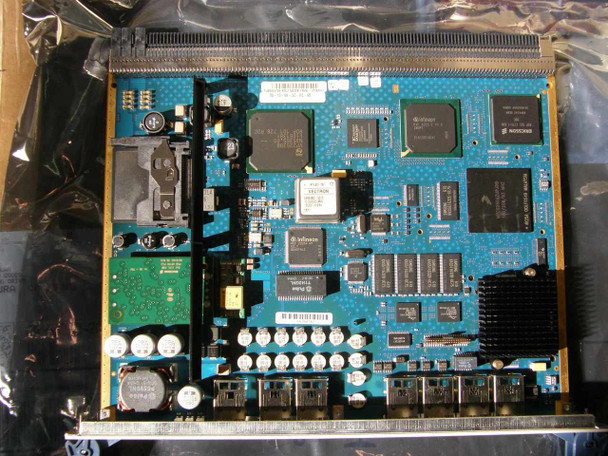

- Notable components: Infineon (x2), Intel processors
Applications
This CBU1 card served as the control module in Ericsson RBS base station systems, coordinating timing synchronization, baseband processing, and network communications. CBU cards are fundamental control elements in 2G/3G RBS deployments, handling GPS timing distribution and inter-module communication via the EC bus and Ethernet interfaces.
Condition: For Parts or Not Working
This Ericsson ROJ1192209/1 CBU1 Control Base Unit Card is being sold as-is for parts or repair. It has not been tested and no functionality is guaranteed. The card appears physically intact with no obvious board damage visible in photos. The front panel faceplate, port headers, and ejector handles are all present. Please review our full photo set for a close look at the board condition and contact us with any questions before purchasing.
This Ericsson ROJ1192209/1 CBU1 Control Base Unit Card is being sold as-is for parts or repair. It has not been tested and no functionality is guaranteed. The card appears physically intact with no obvious board damage visible in photos. The front panel faceplate, port headers, and ejector handles are all present. Please review our full photo set for a close look at the board condition and contact us with any questions before purchasing.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Ericsson |
Model: |
ROJ1192209/1 |
MPN: |
ROJ1192209/1 |
Secondary Model: |
TU89000739 |

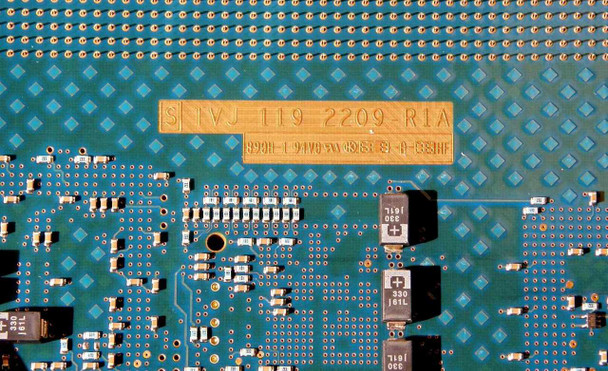

PCB Reference: |
SIVJ-119-2209-RIA |
Type: |
Control Base Unit Card |
Product Code: |
CBU1 |
Hardware Revision: |
R4B |
Manufacture Date Code: |
20060611 |
SKU: |
35093 |
Condition: |
As-Is / For Parts or Not Working |
Form Factor: |
Card/Module |
Interface Type: |
GPS, EC bus, Ethernet, DC-in, Test |
Connector Types: |
Mini DisplayPort-style header connectors (x4 front), backplane edge connector |
Front Panel Ports: |
DC in, ET 1-2, ET 3-4, GPS, EC bus, Eth, Test |
Oscillator: |
Vectron C4550B2-0015, 10.000000 MHz |
Notable ICs: |
Infineon (x2), Intel, Vectron oscillator module |
Application: |
Ericsson RBS telecom base station control |
Country/Region of Manufacture: |
Sweden |
Seller Notes: |
Sold as-is for parts or repair. No functionality guaranteed. |
Condition Notes: |
Ericsson ROJ1192209/1 CBU1 Control Base Unit Card sold as-is for parts or repair. Not tested; no functionality guaranteed. Appears physically intact. Please review photos and contact us with questions. |
