Epson

Epson PII-M1 PANT-SP I/O Board Serial Parallel Interface Card DB9 DB25

(No reviews yet) Write a Review
SKU:
41070
MPN:
PII-M1
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

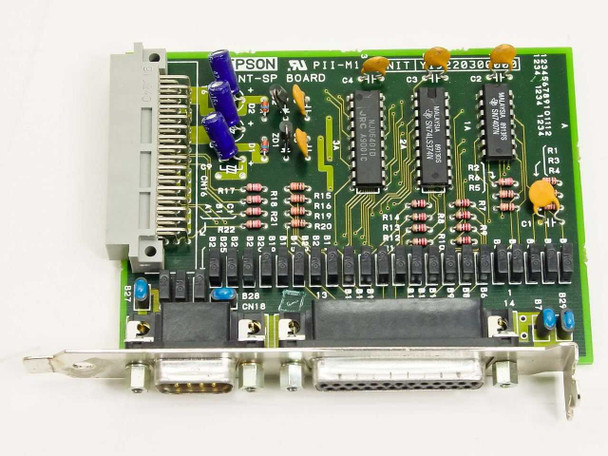

  • Epson PII-M1 PANT-SP I/O board top view showing green PCB, DB9 and DB25 connectors on bracket

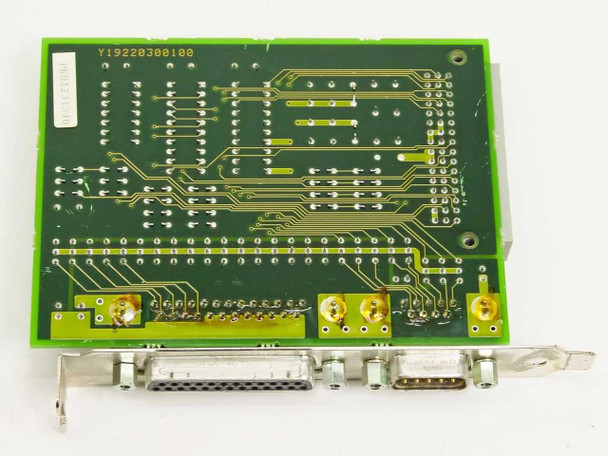

  • Epson PII-M1 PANT-SP I/O board solder side showing trace layout and DB25 connector

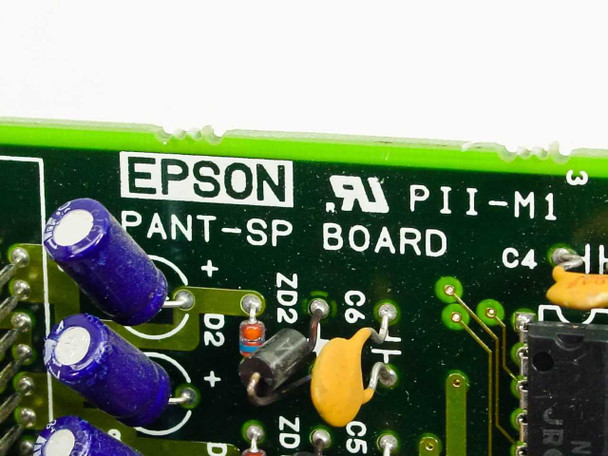

  • Close-up of Epson PII-M1 PANT-SP board silkscreen label showing brand, model, and board designation

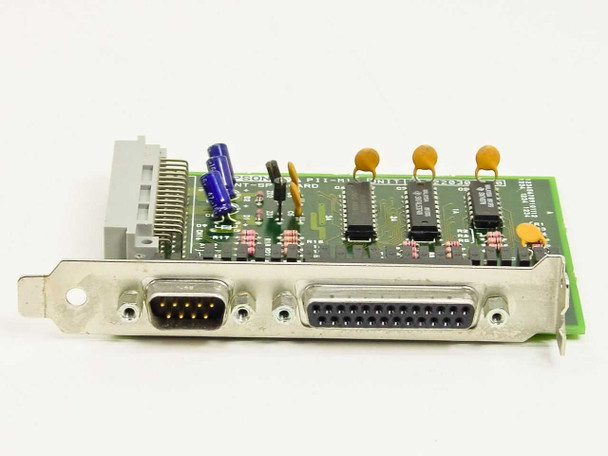

  • Epson PII-M1 PANT-SP board side view showing DB9 serial and DB25 parallel bracket connectors

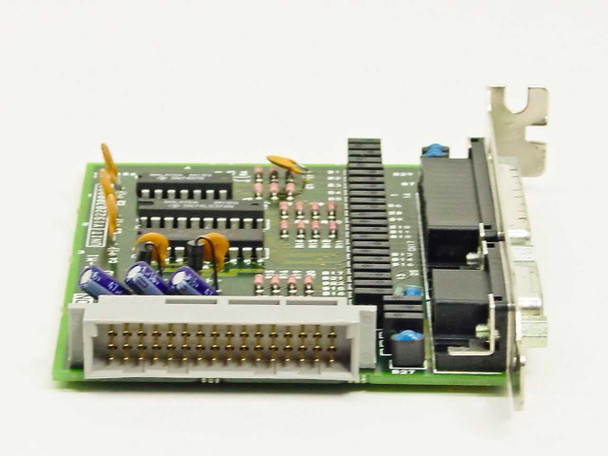

  • Epson PII-M1 PANT-SP board angled view showing 40-pin expansion header edge connector and components
$25.00
Was: $50.00
Current Stock: 1

Sold Out

Description

Epson PII-M1 PANT-SP I/O Board Serial Parallel Interface Card DB9 DB25

Serial and parallel interface expansion board for Epson PII-M1 compatible systems. Provides dual connectivity via DB9 serial and DB25 parallel connectors through a 40-pin expansion header.

Specifications & What's Included

  • Brand: Epson
  • Model: PII-M1 PANT-SP
  • Type: Serial Parallel I/O Interface Board
  • Serial Interface: DB9 connector
  • Parallel Interface: DB25 connector
  • Expansion Header: 40-pin edge connector
  • Manufactured: Japan

Applications

This interface board was used in Epson printer systems and industrial computer platforms requiring simultaneous serial and parallel connectivity. The PII-M1 series supported legacy communication protocols common in telecommunications and printing equipment from the 1980s–1990s. Typical installations included networked printer configurations, industrial data acquisition systems, and point-of-sale terminals requiring mixed-protocol device interfacing.

Condition: Used
This Epson PII-M1 PANT-SP Serial Parallel I/O Board has been inspected and is in good condition. The PCB is clean with no visible damage, cracked traces, or missing components. The DB9 serial and DB25 parallel bracket connectors are intact and appear undamaged. Normal light handling marks consistent with previous installation. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Epson
Model:
PII-M1
MPN:
PANT-SP
Type:
Serial Parallel I/O Interface Board
SKU:
41070
Interface:
Serial (DB9), Parallel (DB25)
Connector 1:
DB9 (Serial)
Connector 2:
DB25 (Parallel)
Form Factor:
Expansion Card / PCB Module
Edge Connector:
40-pin expansion header
Compatible With:
Epson printers and computer systems using PII-M1 I/O
Condition:
Used – Inspected
Seller Notes:
Board only; inspected and in good condition.
Country/Region of Manufacture:
Japan
Condition Notes:
Epson PII-M1 PANT-SP Serial Parallel I/O Board. Inspected and in good condition. PCB is clean, no visible damage. DB9 and DB25 connectors intact. Normal light handling wear.
