Eppendorf 5415B Brinkmann Microcentrifuge 14,000 RPM 16,000xg Variable Speed

Eppendorf 5415B Brinkmann Microcentrifuge 14,000 RPM 16,000xg Variable Speed

The Eppendorf 5415B is a compact benchtop microcentrifuge capable of reaching a maximum speed of 14,000 RPM and a relative centrifugal force (RCF) of 16,000 x g. It features a variable speed control dial, a separate timer dial, and a green power indicator on the front panel. Marketed and distributed in the United States as the Brinkmann Centrifuge 5415C, this unit was manufactured in 1991 at Eppendorf-Netheler-Hinz GmbH in Hamburg, Germany. Note: the rotor cap is missing and will need to be replaced before use.

Specifications & What's Included

• Manufacturer: Eppendorf (Eppendorf-Netheler-Hinz GmbH); distributed in the US by Brinkmann Instruments, Inc.
• Model: 5415B (Eppendorf) / Centrifuge 5415C (Brinkmann US designation)
• Maximum speed: 14,000 RPM
• Maximum RCF: 16,000 x g
• Speed control: variable (dial adjustment)

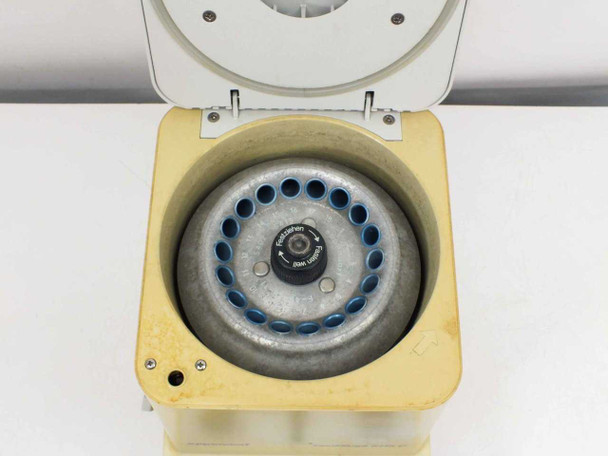

• Rotor: 24-position fixed-angle rotor, installed — rotor cap is missing
• Voltage: 115V
• Frequency: 60 Hz
• Power consumption: 250W
• Maximum sample liquid density: 1.2 kg/dm³
• Power inlet: IEC C14 (standard IEC power cord)
• UL Listed (File 829F)
• Year of manufacture: 1991
• Made in Germany
• Replacement motor brushes: Brinkmann order no. 22 36 527-4

Applications

The Eppendorf 5415 series is one of the most widely used microcentrifuges in molecular biology, biochemistry, and clinical laboratory settings. These compact benchtop centrifuges are designed to spin standard 1.5 mL and 2.0 mL microtubes (Eppendorf tubes), and are used routinely for pelleting cells and bacteria, precipitating proteins and nucleic acids, quick-spin clarification of lysates, and separating phases in standard extraction protocols such as phenol-chloroform DNA purification. The 5415 series was introduced in the 1980s and became a staple instrument in research labs throughout the 1990s; the 5415B/5415C variant, manufactured from the late 1980s through the early 1990s, is an analog-controlled version with a separate speed dial and timer. Many labs still operate 5415-series centrifuges today due to their straightforward mechanical simplicity and durable construction. Brinkmann Instruments served as Eppendorf's exclusive US distribution partner for decades, so US-sourced units often carry both the Eppendorf and Brinkmann model designations.
