EOSI ECU-2010A External Cavity Tunable Diode Laser 2010-ECU GPIB Environmental
The EOSI ECU-2010A is an external cavity tunable diode laser (ECDL) system made by Environmental Optical Sensors, Inc. (EOSI) of Boulder, Colorado. It pairs a compact external-cavity laser head with the 2010-ECU controller/power supply unit, which provides temperature control, current drive, piezo tuning, wavelength readout, and full GPIB remote control in a single integrated package. The laser achieves narrow linewidth through a Littrow or Littman-type external cavity configuration using a precision diffraction grating as the wavelength-selective feedback element.
Specifications & What's Included
- Model: EOSI ECU-2010A (2010-ECU controller + external cavity laser head)
- Laser diode module: EOSI DMD-852-015 (max Iop 75mA, SN 00-482) — visible internally in photos
- Diffraction grating: GRAT 1800 (mounted; GRAT 950 also supported per spec sheet)
- Fine tuning range (piezo): 70 GHz @ 1550nm; 150 GHz @ 620nm
- Max wavelength modulation rate (piezo): 1 kHz
- Max amplitude modulation rate (current): 1 MHz
- Amplitude modulation rate (Bias-T input): 500 kHz – 1 GHz
- Wavelength readout resolution: 0.1 nm
- Wavelength accuracy: 800nm ±2nm; user calibration improves accuracy by a factor of 10
- Wavelength repeatability: 800nm ±0.2nm/day
- Beam divergence: diffraction unlimited
- Current driver output: 0–350mA
- Typical operating point (per front-panel sticker): 55mA / 23.6°C / 60V
- Max scanning speed — GRAT 1800: 12 nm/sec; GRAT 950: 24 nm/sec
- Laser head dimensions: 150mm × 110mm × 290mm
- Power supply/controller dimensions: 165mm × 123mm × 285mm

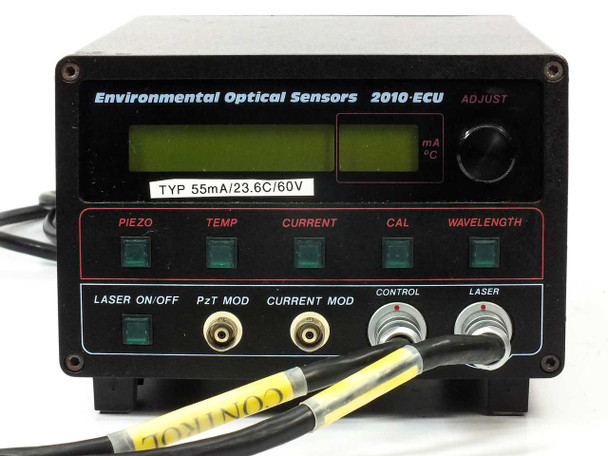

- Front panel: dual LCD displays (mA and °C), PIEZO / TEMP / CURRENT / CAL / WAVELENGTH function buttons, ADJUST knob, LASER ON/OFF switch
- Front panel BNC connectors: PZT MOD, CURRENT MOD, CONTROL, LASER

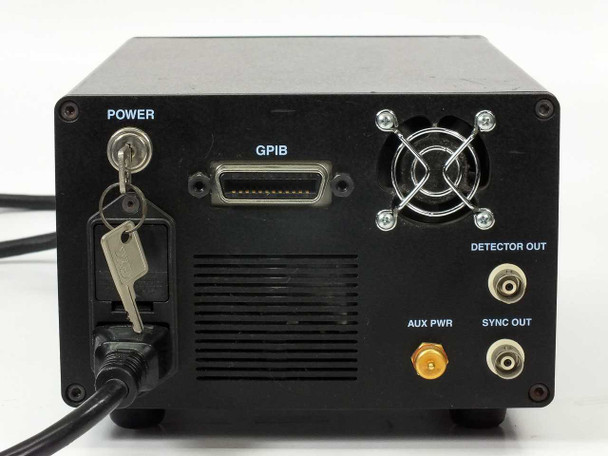

- Rear panel: GPIB (IEEE-488) interface, POWER key switch, exhaust fan, DETECTOR OUT (×2), AUX PWR (SMA), SYNC OUT
- Laser head connectors: CONTROL (BNC) and LASER (BNC) labeled cables
- Laser head output: single circular beam aperture on rear face of head
- Includes: EOSI ECU-2010A laser head, 2010-ECU controller/power supply, original control and laser interconnect cables, and original Owner's Manual (2010F External Cavity Diode Laser)
Applications
External cavity diode lasers of this type are used wherever a narrow-linewidth, continuously tunable coherent light source is required. The ECU-2010A is well suited for laser absorption spectroscopy — including trace gas detection and atmospheric or environmental sensing (the application its manufacturer, Environmental Optical Sensors, was founded around). Other common uses include atomic and molecular physics experiments, optical frequency metrology, optical coherence characterization, pump-probe spectroscopy, and laser cooling and trapping research. The GPIB interface allows full computer control of wavelength, current, temperature, and modulation parameters, making it straightforward to integrate into automated spectroscopy or characterization setups. External cavity lasers achieve much narrower linewidths and wider continuous tuning ranges than free-running diode lasers by using optical feedback from a diffraction grating to select a single longitudinal mode; coarse wavelength tuning is done by rotating the grating (via piezo or stepper), while fine and fast tuning is done by modulating the diode current or the piezo. This combination of narrow linewidth, wide tunability, and GPIB programmability made instruments like the ECU-2010A standard tools in spectroscopy labs and environmental monitoring research throughout the 1990s and 2000s.

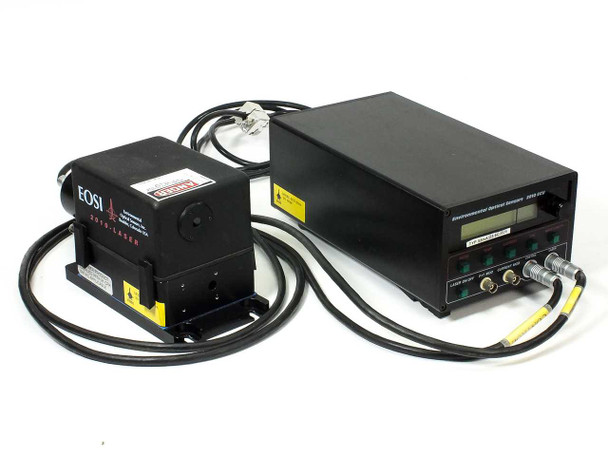

This EOSI ECU-2010A External Cavity Tunable Diode Laser system has been pulled from a working optical research environment and is being offered in used condition. The unit includes the laser head and the 2010-ECU controller/power supply, connected by the original control and laser interconnect cables. The owner's manual is also included, as shown in the photos. Cosmetically, both the laser head and controller show light wear consistent with lab use — minor scuffing on the enclosures, with no significant damage observed. The internal optical cavity, visible in our photos with the laser head cover removed, shows the diffraction grating, prism, beam splitter, and diode module assembly, which appear intact and undamaged. A sticker on the front panel indicates a typical operating point of 55mA / 23.6°C / 60V, consistent with the laser diode module (EOSI DMD-852-015, Iop max 75mA). This system has not been powered on or bench-tested at our facility. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Environmental Optical Sensors (EOSI) |
Model: |
ECU-2010A |
Secondary Model: |
2010-ECU |
MPN: |
ECU-2010A |
SKU: |
50175 |
Type: |
External Cavity Tunable Diode Laser |
Seller Notes: |
Includes laser head, 2010-ECU controller/power supply, interconnect cables, and owner's manual. |
Laser Type: |
External Cavity Diode Laser (ECDL) |
Tuning Method: |
Piezo (coarse) and current modulation (fine) |
Fine Tuning Range (Piezo): |
70 GHz @ 1550nm; 150 GHz @ 620nm |
Max Wavelength Modulation Rate (Piezo): |
1 kHz |
Max Amplitude Modulation Rate (Current): |
1 MHz |
Amplitude Modulation Rate (Bias-T): |
500 kHz – 1 GHz |
Wavelength Readout Resolution: |
0.1 nm |
Wavelength Accuracy: |
800nm ±2nm; user calibration improves by 10x |
Wavelength Repeatability: |
800nm ±0.2nm/day |
Current Driver Output: |
0–350 mA |
Max Scanning Speed (GRAT 1800): |
12 nm/sec |
Max Scanning Speed (GRAT 950): |
24 nm/sec |
Laser Diode Module: |
EOSI DMD-852-015 (Iop max 75mA) |
Interface: |
GPIB |
Rear Panel Connectors: |
GPIB, Detector Out, AUX PWR (SMA), Sync Out, Power (key switch) |
Front Panel Connectors: |
PZT MOD (BNC), Current MOD (BNC), Control (BNC), Laser (BNC) |
Front Panel Controls: |
Piezo, Temp, Current, Cal, Wavelength buttons; Adjust knob; Laser On/Off |
Front Panel Display: |
Dual LCD (mA and °C readout) |
Laser Head Dimensions: |
150mm x 110mm x 290mm |
Power Supply Dimensions: |
165mm x 123mm x 285mm |
Beam Divergence: |
Diffraction unlimited |
Country/Region of Manufacture: |
United States |
Application: |
Spectroscopy, environmental sensing, laser research, metrology |
Compatible With: |
GPIB (IEEE-488) controllers and instruments |
Condition Notes: |
This EOSI ECU-2010A External Cavity Tunable Diode Laser with 2010-ECU controller was pulled from a working lab. Includes laser head, controller, cables, and owner's manual. Not powered or tested at our facility. Please contact us with questions. |
