Description
Envirco M424 Vertical Fume Hood 115V 8.2A 60Hz Single Phase w/ Stand 51W

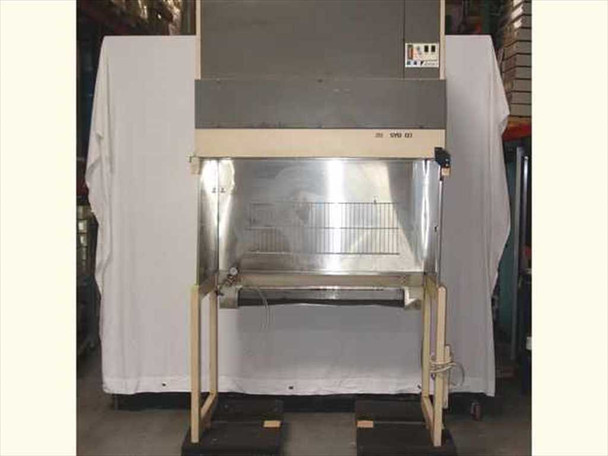

The Envirco M424 is a vertical-sash fume extraction hood designed for laboratory environments where chemical fumes, vapors, and particulates must be safely drawn away from the work area. The unit features a stainless steel back panel, a color-coded airflow meter for monitoring air velocity, fluorescent lighting to illuminate the work surface, and separate toggle controls for the fan and lights. This unit is listed complete with its matching floor stand.
Specifications & What's Included
- Manufacturer: Envirco (subsidiary of Bio-Dynamics Inc., Albuquerque, NM)
- Model: M424

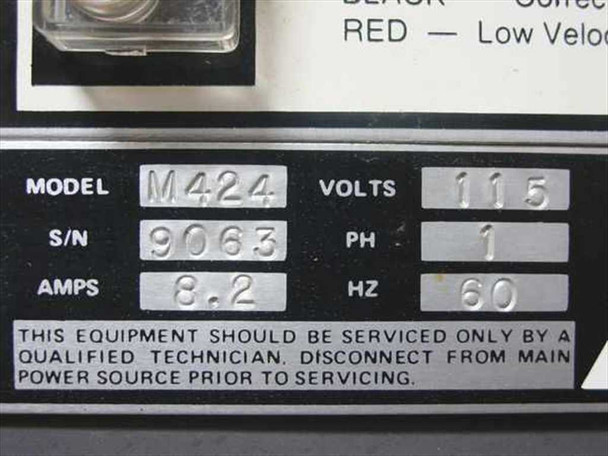

- Voltage: 115V
- Phase: Single Phase (1PH)
- Amperage: 8.2A
- Frequency: 60 Hz
- Hood dimensions: 34"D x 51"W x 90"H
- Stand dimensions: 34"D x 51"W x 32"H
- Back panel: Stainless steel
- Work surface lighting: Fluorescent
- Airflow indicator: Color-coded rotameter (Green = High Velocity, Black = Correct Velocity, Red = Low Velocity)
- Controls: Toggle switches for Fan and Lights; airflow meter on front panel
- Ventilation: Ducted vertical exhaust (external duct connection required for installation)
- Includes: Fume hood unit and matching floor stand on casters
- Not included: Manual, ductwork, or peripheral accessories
Applications
Fume hoods like the Envirco M424 are standard safety equipment in chemical, biological, and materials science laboratories. They protect users from inhaling hazardous vapors, fumes, and fine particulates generated during experiments or chemical handling by drawing contaminated air up through the hood and into an exhaust duct connected to the building's ventilation system. The color-coded airflow meter on the M424 gives operators a quick visual check that face velocity is within the safe operating range — a practical feature in busy lab settings where airflow can be affected by HVAC changes or filter loading. Units of this type and era were widely used in university research labs, industrial QA/QC labs, pharmaceutical research, and semiconductor fabrication support areas. The wheeled floor stand makes this unit repositionable, which is useful in shared or reconfigured lab spaces.
This Envirco M424 Vertical Fume Hood has been tested at our facility and is in good working order — the fan powers on and draws air up into the hood, and the fluorescent lights turn on. The unit was previously in active lab service and shows the normal scuffs and scrapes you'd expect on used equipment of this age. No manual or accessories are included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Envirco |
Model: |
M424 |
MPN: |
M424 |
Type: |
Vertical Fume Hood |
SKU: |
17501 |
Voltage: |
115V |
Amperage: |
8.2A |
Phase: |
Single Phase |
Frequency: |
60 Hz |
Hood Width: |
51 inches |
Hood Dimensions (D x W x H): |
34" D x 51" W x 90" H |
Stand Dimensions (D x W x H): |
34" D x 51" W x 32" H |
Airflow Indicator: |
Yes — color-coded airflow meter (Green/Black/Red) |
Lighting: |
Fluorescent |
Back Panel Material: |
Stainless Steel |
Ventilation Type: |
Ducted (vertical exhaust) |
Controls: |
Toggle switches for Fan and Lights; airflow meter |
Includes Stand: |
Yes |
Seller Notes: |
Includes fume hood and floor stand only. No manual or accessories included. |
Country/Region of Manufacture: |
United States |
Manufacturer Location: |
Albuquerque, New Mexico |
Parent Company: |
Bio-Dynamics Inc. |
Condition Notes: |
This Envirco M424 Vertical Fume Hood has been tested and works — fan runs and draws air, fluorescent lights turn on. Shows normal wear with minor scuffs and scrapes. No manual or accessories included. |
