Enphase ET3C-G2-06 860-00022 208V Trunk Cable 3x D380 Inverter Drops ~20 Ft

Enphase ET3C-G2-06 860-00022 208V Trunk Cable 3x D380 Inverter Drops ~20 Ft

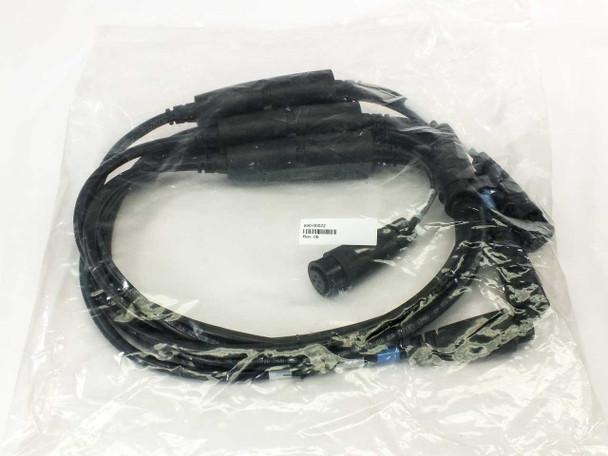

The Enphase ET3C-G2-06 is a 208V AC trunk cable assembly designed for use with Enphase D380 microinverters in commercial solar photovoltaic installations. The trunk cable runs along the rafter or rail and provides three pre-wired drop connections that plug directly into D380 microinverters, simplifying AC wiring on the array. This is the G2 generation of the ET3C trunk cable family.

Specifications & What's Included

• Model: ET3C-G2-06
• Part Number: 860-00022
• Voltage: 208V AC
• Generation: G2
• Number of inverter drops: 3 (D380 compatible)
• Drop spacing: 6 feet between drops
• Overall length: approximately 20 feet
• Cable: Lappkabel Stuttgart Olflex TC 600 (as printed on jacket)

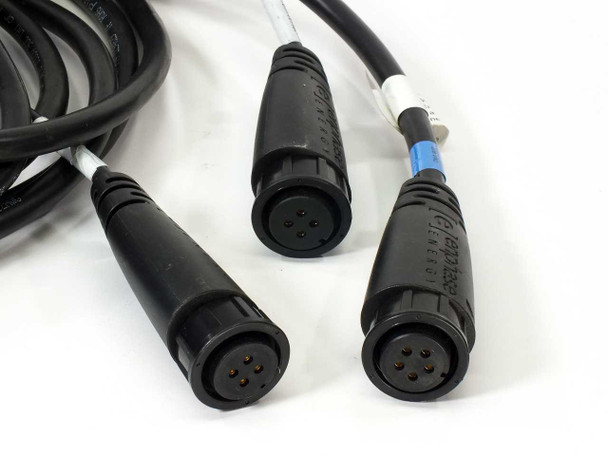

• Connectors: Enphase proprietary multi-pin locking connectors — male trunk end and female drop ends with weatherproof overmolded bodies
• Includes: trunk cable assembly only

Applications

Enphase trunk cables are used in commercial and residential solar array installations where Enphase microinverters are mounted beneath individual panels. Rather than running individual AC home runs from each inverter, the trunk-and-drop system lets installers snap each microinverter into a pre-wired drop along the trunk cable, which then carries the combined AC output back to the interconnection point. The ET3C-G2-06 is specifically designed for three-phase 208V commercial systems — common in light commercial buildings, schools, and facilities where the utility service is 208/120V three-phase. The D380 microinverter was part of Enphase's earlier commercial microinverter line, and replacement or spare trunk cables like this are used when extending an existing array, replacing damaged wiring, or servicing an installed system.
