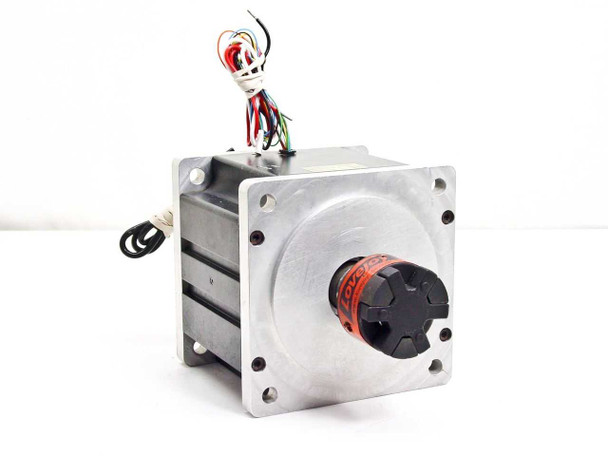

Emoteq Allied Motion QSO5600-B03-HE Brushless DC Servo Motor USA Made
The Emoteq QSO5600-B03-HE is a brushless DC servo motor manufactured by Emoteq Corp — now part of Allied Motion Technologies — in Tulsa, Oklahoma. Brushless DC servo motors of this type use electronic commutation via Hall effect sensors rather than mechanical brushes, providing longer service life, lower maintenance, and precise speed and torque control when paired with a compatible servo drive.
Specifications & What's Included
- Manufacturer: Emoteq Corp (Allied Motion Technologies)
- Model / Part Number: QSO5600-B03-HE
- Motor Type: Brushless DC Servo Motor
- Commutation Feedback: 3-phase Hall effect sensors
- Hall Sensor Wiring: Hall GND (GRN), Hall +5V (BLU), Hall 1 (BRN), Hall 2 (ORG), Hall 3 (YEL)
- Phase Wiring: Phase 1 (RED), Phase 2 (WHT), Phase 3 (BLK)
- Voltage Type: DC (voltage rating not printed on label)
- Country of Manufacture: USA
- Mounting: Square flange face-mount (NEMA-style), 4-bolt pattern
- Output Shaft: Fitted with Lovejoy jaw-style flexible coupling
- Lead Wires: Multi-color loose leads — unterminated (no connector)
- Includes: Motor with Lovejoy jaw coupling installed on output shaft
Applications
Brushless DC servo motors like the Emoteq QSO5600-B03-HE are used in precision motion control applications across industrial automation, robotics, semiconductor equipment, medical devices, and laboratory instrumentation. The Hall effect feedback variant (denoted by the

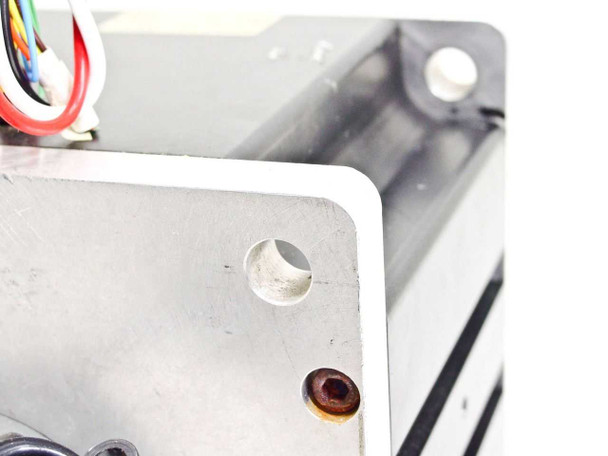

This Emoteq Allied Motion QSO5600-B03-HE Brushless DC Servo Motor has been inspected and appears to be in good used condition. The aluminum housing is clean overall with light handling marks consistent with prior use. A Lovejoy jaw-style coupling is installed on the output shaft. The multi-color Hall effect and phase lead wires are present and unterminated. One mounting screw hole in a corner shows minor surface oxidation, visible in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Emoteq |
Model: |
QSO5600-B03-HE |
MPN: |
QS05600-B03-HE |
Type: |
Brushless DC Servo Motor |
SKU: |
43915 |
Feedback Type: |
Hall Effect Sensors (3-phase) |
Phase Wiring: |
3-Phase (Phase 1, Phase 2, Phase 3) |
Hall Sensor Wiring: |
Hall GND, Hall +5V, Hall 1, Hall 2, Hall 3 |
Voltage Type: |
DC |
Country/Region of Manufacture: |
United States |
Manufacturer: |
Emoteq Corp (now Allied Motion Technologies) |
Form Factor: |
NEMA-style square flange mount |
Included Accessories: |
Lovejoy jaw-style shaft coupling installed |
Seller Notes: |
Includes Lovejoy jaw coupling on output shaft. Lead wires loose — no connector. |
Condition Notes: |
This Emoteq Allied Motion QSO5600-B03-HE Brushless DC Servo Motor has been inspected and appears to be in good used condition. Light handling wear on housing; minor oxidation at one corner. Lovejoy coupling installed. Lead wires unterminated. |
