Description
eMachines 304733 Socket 370 PGA Motherboard Cognac E-Tower 633IS Rev 1.02

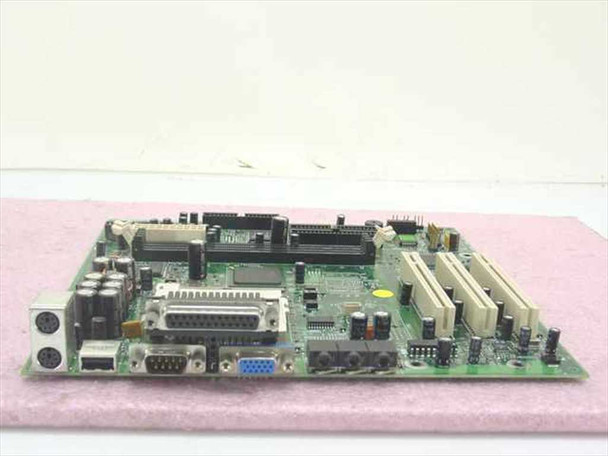

The eMachines 304733 is a Socket PGA 370 system board built for the eMachines E-Tower 633IS desktop PC. Known by the board name "Cognac," this revision 1.02 board supports Intel Socket 370 processors — including Celeron and Pentium III chips — and is a direct replacement board for that eMachines system. It has been tested at our facility and is in good working order.
Specifications & What's Included
- Part Number: 304733
- Board Name: Cognac
- Revision: Rev 1.02
- CPU Socket: Socket 370 (PGA 370) — supports Intel Celeron and Pentium III
- Memory: 2x DIMM slots, SDRAM
- Expansion Slots: 3x PCI, 1x ISA (visible in photos)
- Storage: IDE (40-pin) headers; floppy connector present
- Integrated Video: Yes — VGA output on rear I/O panel
- Rear I/O: PS/2 keyboard port, PS/2 mouse port, parallel (DB-25), VGA (DB-15), USB
- Power Connector: 20-pin ATX
- Compatible With: eMachines E-Tower 633IS
- What's Included: Motherboard only — no CPU, RAM, cables, or accessories
Applications
The eMachines E-Tower was a line of budget consumer desktop PCs sold primarily in the late 1990s and early 2000s, aimed at first-time buyers and the entry-level home computing market. The 304733 Cognac board is a purpose-built OEM system board for that platform and is most useful today as a direct replacement part for anyone maintaining or restoring an E-Tower 633IS unit. Socket 370 was Intel's mainstream desktop socket from roughly 1998 through 2002, supporting Celeron (Mendocino, Coppermine-128) and Pentium III (Coppermine) processors at speeds from 300 MHz up to 1.13 GHz. The integrated video output made this board a self-contained solution for basic desktop use, reducing cost in the consumer segment. These boards are now primarily sourced for legacy system repair, retro computing builds, or parts salvage.
This eMachines 304733 Socket PGA 370 Cognac system board has been tested at our facility and is in good working order. The board shows normal wear consistent with prior use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
eMachines |
Model: |
304733 |
MPN: |
304733 |
Type: |
Motherboard / System Board |
SKU: |
25207 |
Socket Type: |
Socket 370 (PGA 370) |
Form Factor: |
Micro ATX |
Chipset: |
Not legible in photos |
Compatible With: |
eMachines E-Tower 633IS |
Board Revision: |
Rev 1.02 |
Codename / Board Name: |
Cognac |
CPU Compatibility: |
Intel Celeron / Pentium III (Socket 370) |
Memory Type: |
SDRAM (DIMM) |
Memory Slots: |
2 DIMM slots (visible in photos) |
Expansion Slots: |
3x PCI, 1x ISA (visible in photos) |
Storage Interface: |
IDE (40-pin), Floppy connector |
Rear I/O Ports: |
PS/2 keyboard, PS/2 mouse, parallel, VGA, USB |
Integrated Video: |
Yes (VGA port visible on rear I/O) |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Tested and in working order. Board only — no CPU, RAM, or accessories included. |
Country/Region of Manufacture: |
Taiwan |
Condition Notes: |
eMachines 304733 Socket 370 Cognac motherboard. Tested and in working order. Shows normal wear from prior use. Board only — no CPU or RAM included. Please view photos and contact us with questions. |
