Description
Elkay ER10-1B ER101Y Remote Air-Cooled Water Chiller 115V 6A R-134A 5.88oz

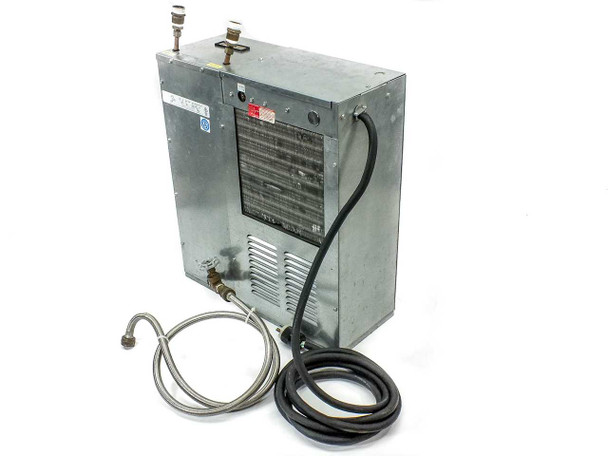

The Elkay ER10-1B is a self-contained remote air-cooled water chiller designed to cool potable water at the point of use in commercial drinking water systems. In a remote chiller setup, this unit is installed separately from the drinking fountain or faucet fixture — typically in a cabinet, mechanical room, or nearby chase — and circulates chilled water to the dispense point through insulated supply lines. The chiller uses R-134A refrigerant and connects to the building water supply and the remote dispenser via quick-connect brass fittings labeled Water In and Water Out. Power is supplied via a NEMA L5-15P twist-lock plug.
Specifications & What's Included
- Manufacturer: Elkay Manufacturing Co., Savanna, IL, USA
- Model: ER10-1B
- Part Number: ER101Y
- Voltage: 115V AC
- Frequency: 60 Hz
- Amperage: 6.0A
- Max Fuse: 15A
- Min Circuit Ampacity: 7.7A
- LRA (Locked Rotor Amps): 40.0A
- Refrigerant Type: R-134A
- Refrigerant Charge: 5.88 oz
- Design Pressure — High Side: 325 PSI
- Design Pressure — Low Side: 140 PSI
- Cooling Method: Air-Cooled
- Water Connections: 2 — brass quick-connect fittings (Water In / Water Out)
- Top refrigerant service fittings present
- Power Connector: NEMA L5-15P twist-lock plug
- Enclosure: Galvanized steel with louvered ventilation panels
- Includes: braided flex water supply line, power cord with twist-lock plug
Applications
Elkay remote chillers like the ER10-1B are standard components in commercial and institutional drinking water systems where a wall-mounted or countertop fountain needs chilled water but does not have a built-in refrigeration unit. Typical installations include office buildings, schools, hospitals, and manufacturing facilities where the chiller is tucked into a utility space or cabinet and plumbed to one or more remote drinking fountains or bottle-filling stations. The remote configuration keeps mechanical noise and heat out of the occupied space near the dispense point. Elkay has been a leading manufacturer of drinking water equipment in the United States for decades, and the ER series remote chillers have seen widespread use in institutional settings throughout the 1990s and 2000s and remain in service in many facilities today.
This Elkay ER10-1B ER101Y Remote Air-Cooled Water Chiller has been pulled from a working environment where it was previously in use. It has not been powered up or tested at our facility. The galvanized steel housing shows surface scuffs and general handling wear consistent with field service use. Both the Water In and Water Out brass quick-connect fittings are present and intact, and a braided flex water supply line is included. The power cord terminates in a NEMA L5-15P twist-lock plug. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Elkay |
Model: |
ER10-1B |
Secondary Model: |
ER101Y |
MPN: |
ER101Y |
SKU: |
46398 |
Type: |
Remote Air-Cooled Water Chiller |
Voltage: |
115V |
Amperage: |
6.0A |
Frequency: |
60 Hz |
Wattage: |
15W (max fuse 15A, min circuit 7.7A) |
Refrigerant Type: |
R-134A |
Refrigerant Charge: |
5.88 oz |
Design Pressure (High Side): |
325 PSI |
Design Pressure (Low Side): |
140 PSI |
LRA: |
40.0A |
Cooling Method: |
Air-Cooled |
Number of Water Ports: |
2 (Water In, Water Out) |
Connector Type: |
Quick-connect brass fittings |
Power Connector: |
NEMA L5-15P twist-lock plug |
Country/Region of Manufacture: |
USA |
Seller Notes: |
Includes flex braided water supply line and power cord with twist-lock plug. |
Condition Notes: |
This Elkay ER10-1B ER101Y Remote Air-Cooled Water Chiller was pulled from a working environment. Not powered or tested at our facility. Housing shows normal service wear. |
