Electro Medical Technology Wall Plug Power Supply 11V 0.7A DC 115V AC DIN

Electro Medical Technology Wall Plug Power Supply 11V 0.7A DC 115V AC DIN

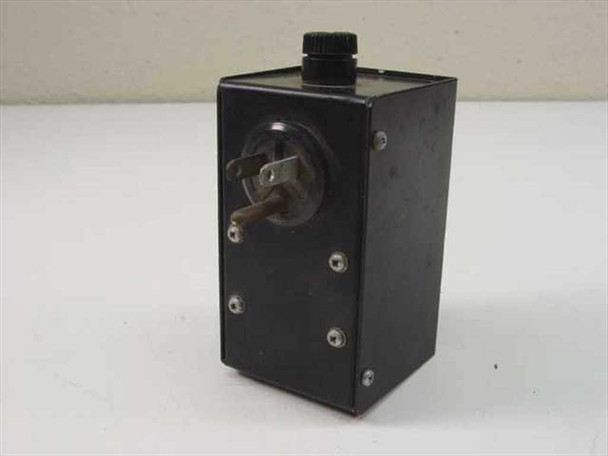

This is a compact AC-to-DC wall plug power supply made by Electro Medical Technology, based in Redding, California. It converts 115V AC mains power to a regulated 11V DC output at up to 0.7A, intended to power low-voltage DC equipment via a round multi-pin DIN connector. The unit is housed in a rugged black metal enclosure with an integrated 2-prong AC input plug and a fused internal circuit (3AG, 1/4A, 250V). The unloaded output voltage is approximately 15V DC, dropping to 11V under load as rated.

Specifications & What's Included

• Brand: Electro Medical Technology, Inc. — Redding, CA 96001
• Type: AC to DC wall plug power supply
• Input Voltage: 115V AC ±10% at 60Hz
• Input Current: 13A Max
• Output Voltage: 11V DC (unloaded: ~15V DC)
• Output Current: 0.7A Max
• Fuse: 3AG, 1/4 Amp, 250V
• Input Connector: Integrated 2-prong NEMA AC plug (wall plug style)
• Output Connector: Round multi-pin DIN (panel-mounted on top)
• Enclosure: Black metal box with top-mounted output port and bottom AC prongs
• Includes: Power supply unit only

Applications

Electro Medical Technology was a small U.S. manufacturer of specialty power supplies and related components, primarily serving the medical equipment and scientific instrument markets. Wall plug power supplies of this type were commonly used to power standalone medical devices, diagnostic instruments, or lab equipment requiring a low-voltage DC supply — typically in clinical, laboratory, or research settings from the 1970s through the 1990s. The round DIN output connector is a format historically used on a range of medical and scientific instruments of that era. This unit would be of interest to anyone maintaining or restoring legacy medical or laboratory equipment that originally shipped with a matching power supply.
