Description
Electro-Craft E650 0650-00-075 DC Brushed Servo Motor CNC Motion Control USA

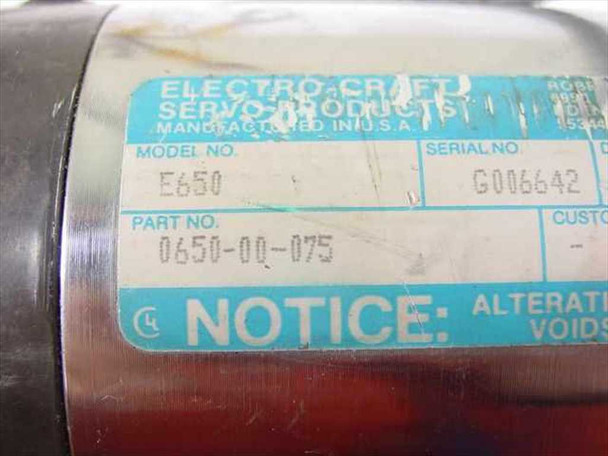

The Electro-Craft E650 is a permanent magnet DC brushed servo motor manufactured in the United States by Electro-Craft Servo Products — a well-known name in precision motion control. Part number 0650-00-075 identifies the specific winding configuration for this unit. The motor features a cylindrical body with black cast end bells and a polished aluminum/steel barrel, a round face-mount flange with bolt-hole pattern, and a single output shaft. Lead wires exit the body via a gray shielded cable along with a yellow pigtail (thermostat or thermistor).
Specifications & What's Included
- Brand: Electro-Craft Servo Products (Manufactured in U.S.A.)
- Model: E650
- Part Number: 0650-00-075
- Motor Type: Permanent Magnet DC Brushed Servo Motor
- Form Factor: Cylindrical, face/flange mount
- Mounting: Round flange with bolt-hole pattern (visible in photos)
- Output Shaft: Single shaft protruding from drive end
- Leads: Gray shielded cable + yellow thermostat/thermistor pigtail
- Electrical specs (voltage, amperage, RPM): not fully legible from label — consult Electro-Craft E650 datasheet for the 0650-00-075 winding variant
- Country of Manufacture: United States
- Includes: Motor only — no cables, servo drive, encoder, or mounting hardware
Applications
Electro-Craft servo motors were a leading choice for precision industrial motion control from the 1970s through the 1990s. The E650 series are used in CNC machine tool axes (milling machines, lathes, routers), robotic arms, automated assembly equipment, and other closed-loop servo positioning systems where smooth, accurate speed and torque control are required. These motors are typically paired with a compatible DC servo drive/amplifier and a feedback device such as a tachometer or encoder. Electro-Craft, originally an independent company and later acquired by Rockwell Automation and then Parker Hannifin, built a strong installed base in North American manufacturing — making these motors a common target for CNC retrofits and spare-parts sourcing. The E650 series remains sought after for legacy machine tool maintenance and servo system rebuilds.
This Electro-Craft E650 DC brushed servo motor (P/N 0650-00-075) has been pulled from a working industrial environment where it was previously in service. The motor has been visually inspected and photographed. The chrome barrel and black end caps are in good overall shape with light surface wear consistent with normal use. The lead wires and yellow thermostat/thermistor pigtail appear intact. The output shaft and mounting flange show no obvious damage. The motor has not been powered or tested at our facility. Cosmetic wear typical of used industrial equipment should be expected — please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Electro-Craft |
Model: |
E650 |
MPN: |
0650-00-075 |
Type: |
DC Brushed Servo Motor |
SKU: |
26748 |
Seller Notes: |
Motor only — no cables, drive, or mounting hardware included. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Cylindrical / NEMA Flange Mount |
Motor Type: |
Permanent Magnet DC Brushed Servo |
Application: |
CNC Machine Tools, Industrial Motion Control, Robotics |
Shaft Configuration: |
Single output shaft |
Mounting Style: |
Face / Flange Mount |
Lead / Wiring: |
Gray shielded cable + yellow thermostat/thermistor lead |
Condition Notes: |
This Electro-Craft E650 servo motor (P/N 0650-00-075) was pulled from a working environment and has been visually inspected. It has not been powered or tested at our facility. Lead wires and shaft appear intact. Normal used wear. |
