Description
EG&G PARC 1460 OMA III Multichannel Optical Analyzer Princeton Applied Research
Benchtop optical multichannel analyzer system for spectroscopic measurement and analysis. The OMA III uses simultaneous multichannel detection to capture optical spectra across a range of wavelengths in a single acquisition.
Specifications & What's Included
- Model 1460 OMA III mainframe with built-in CRT monitor and dual floppy disk drives
- EG&G 1420 UV non-gated detector
- Modules: CPU O, IO-A, CRT 2, 2x M1460 Shield, M1463 Analog, M1463 14-Bit A/D, M1463 Scan Control, M1460 DMA
- Power: 115V or 230V, 46–62 Hz, 260 VA maximum
- Connectivity: RS-232 interface, internal Deltron W300A power supply
Applications
The OMA III series was widely used in optical spectroscopy, ultraviolet-visible (UV-Vis) analysis, fluorescence detection, and Raman spectroscopy. These systems were deployed in research laboratories, quality control environments, and analytical chemistry applications where simultaneous multichannel detection provided advantages over scanning monochromators. The instrument interfaced with contemporary laboratory computers via RS-232 for data acquisition and processing.

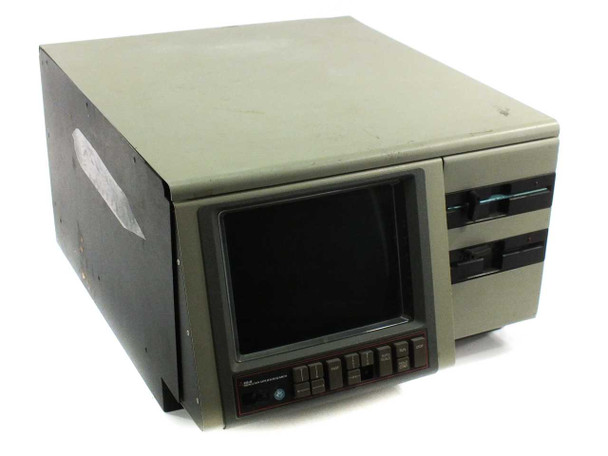

This EG&G PARC 1460 OMA III Multichannel Optical Analyzer powers on but produces no response from the built-in CRT display. Because we cannot confirm full functionality, it is being sold strictly as-is for parts or repair. The unit includes the EG&G 1420 UV non-gated detector and a full complement of modules: CPU O, IO-A, CRT 2, two M1460 Shield modules, M1463 Analog, M1463 14-Bit A/D, M1463 Scan Control, and M1460 DMA. Externally the unit shows moderate wear consistent with lab use — there is damage to the upper rear corner trim, and general scuffing and soiling on the case surfaces. The front-panel controls and floppy drive bays appear intact. The rear compliance label is legible and shows a manufacture date of 7/12/95; voltage selector is present and intact. The internal card cage, wiring, and Deltron W300A power module are all visible and appear physically complete. This item is not tested, not guaranteed functional, and is sold as-is with no warranty of operation. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
EG&G Princeton Applied Research |
Model: |
1460 |
MPN: |
1460 |
Type: |
Multichannel Optical Analyzer (OMA) |
SKU: |
34995 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes 1420 UV non-gated detector, CPU O, IO-A, CRT 2, 2x M1460 Shield, M1463 Analog, M1463 14-Bit A/D, M1463 Scan Control, M1460 DMA modules |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop / Mainframe |
Power Requirements: |
115V (100-130V) or 230V (200-260V), 46-62 Hz, 260 VA Max |
Fuse Rating (115V): |
3.0A S.B. |
Fuse Rating (230V): |
1.5A S.B. |
Detector Included: |
EG&G 1420 UV Non-Gated Detector |
Modules Included: |
CPU O, IO-A, CRT 2, M1460 Shield x2, M1463 Analog, M1463 14-Bit A/D, M1463 Scan Control, M1460 DMA |
Display Type: |
Built-in CRT Monitor |
Storage: |
Dual floppy disk drives (visible on front panel) |
Interface: |
RS-232 (visible on rear panel) |
Application: |
Optical spectroscopy, multichannel detection, spectral analysis |
System Series: |
OMA III (Optical Multichannel Analyzer III) |
Manufacturer Location: |
Princeton, NJ, USA |
Internal Power Supply: |
Deltron Inc. W300A (visible internally) |
Condition Notes: |
EG&G PARC 1460 OMA III Optical Analyzer powers on but CRT shows no response. Sold AS-IS for parts or repair — not guaranteed functional. Includes 1420 UV detector and full module set. Moderate exterior wear. Manufacture date 7/12/95. |
