ebm-papst W2E200-HH82-05 Industrial Tubeaxial Fan 115VAC 500 CFM 225mm 50/60Hz

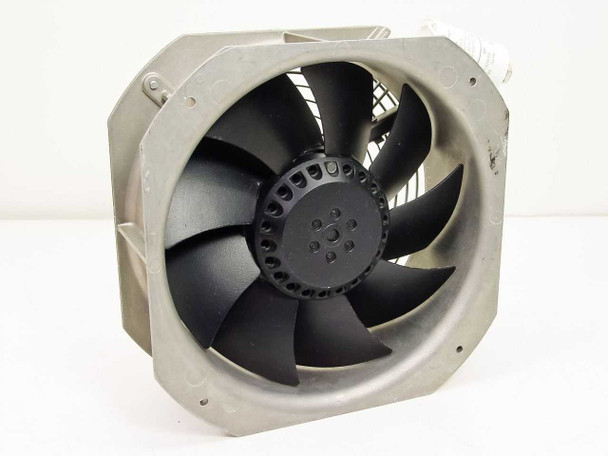

The ebm-papst W2E200-HH82-05 is a 225mm square-frame tubeaxial AC fan designed for continuous industrial cooling and ventilation service. Running on 115V AC at 50 or 60 Hz, it moves 500 CFM of air through a compact 225 × 225 × 80mm frame with a hardwire screw-terminal connection block. Manufactured in Germany in November 1993, this is a robust, long-running workhorse from ebm-papst's W2E200 series.
Specifications & What's Included
- Manufacturer: ebm-papst (ebm), Made in Germany
- Model: W2E200-HH82-05
- Fan type: Tubeaxial (axial impeller in square frame)
- Voltage: 115V AC
- Frequency: 50/60 Hz
- Power consumption: 48W at 50 Hz / 60W at 60 Hz
- Airflow: 500 CFM
- Frame dimensions: 225mm × 225mm × 80mm (square)
- Connection: Hardwire — PE, N, L screw terminal block

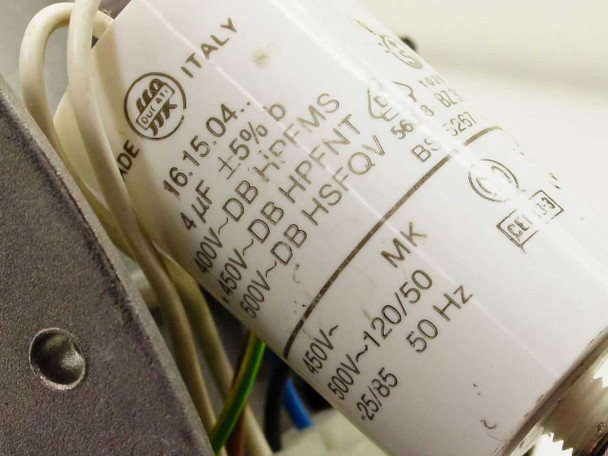

- Run capacitor: 4 µF ±5%, 400–500V AC (Italian-made, mounted on unit)
- Front wire guard included
- Date code: November 1993
Applications
The ebm-papst W2E200 series fans are a well-established family of industrial axial fans widely used in electronics cooling, industrial cabinet ventilation, HVAC air-handling equipment, medical and laboratory systems, and general machinery. The tubeaxial design — where the motor and impeller sit within a close-fitting circular housing inside a square mounting frame — delivers high-volume axial airflow suitable for both exhaust and supply applications. The hardwire terminal block (PE/N/L) and integral run capacitor make this a self-contained unit ready for direct panel or duct mounting. Units of this series have been specified by OEMs across industrial automation, power electronics, telecommunications infrastructure, and scientific instrumentation since the 1980s and 1990s, and remain in service and sought as replacements today.
This ebm-papst W2E200-HH82-05 Industrial Tubeaxial Fan has been inspected and appears to be in good used condition. The housing shows surface wear and scuffing consistent with prior service use. The impeller blades and wire guard are intact, and the hardwire terminal block with run capacitor are present. This is a 1993-manufactured unit pulled from a working environment. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
ebm-papst |
Model: |
W2E200-HH82-05 |
MPN: |
W2E200-HH82-05 |
SKU: |
40036 |
Type: |
Industrial Tubeaxial AC Fan |
Voltage: |
115V AC |
Frequency: |
50/60 Hz |
Power Consumption: |
48W (50Hz) / 60W (60Hz) |
Airflow: |
500 CFM |
Fan Size: |
225mm x 225mm x 80mm |
Frame Shape: |
Square |
Connection Type: |
Hardwire — PE, N, L screw terminal block |
Run Capacitor: |
4 µF ±5%, 400–500V AC (included) |
Country/Region of Manufacture: |
Germany |
Date Code: |
11/93 (November 1993) |
Seller Notes: |
Fan unit with run capacitor and wired terminal block. No mounting hardware included. |
Form Factor: |
Square Frame, 225mm |
Compatible With: |
Industrial equipment, HVAC systems, cabinet cooling |
Series: |
W2E200 |
Condition Notes: |
This ebm-papst W2E200-HH82-05 Tubeaxial Fan is in good used condition with normal surface wear from prior service use. Impeller, guard, terminal block, and run capacitor are all present. Pulled from a working environment. |
