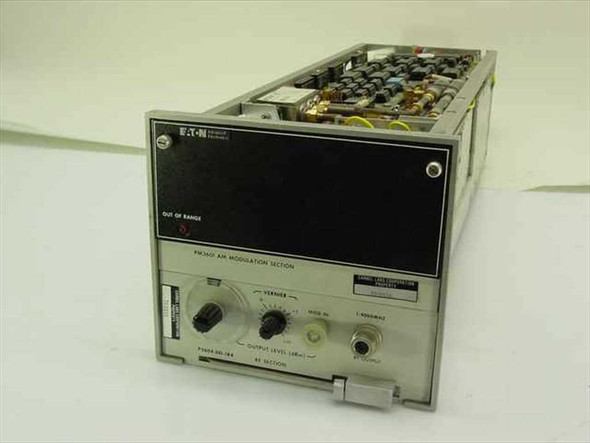

Eaton Electronics PM3601 AM Modulation Section RF Transmitter
The Eaton Electronics PM3601 is an AM modulation section component designed for use in RF transmission and satellite communications systems. This module handles amplitude modulation signal processing and preparation for RF carrier transmission in satcom earth stations and related transmission equipment. The PM3601 section integrates critical signal conditioning and modulation functions within larger transmitter chassis and systems.
Specifications & What's Included
- Manufacturer: Eaton Electronics
- Model: PM3601
- Function: AM Modulation Section
- Application: RF Transmitter Systems, Satellite Communications
- Form Factor: Modular / Card-Based Component
- Condition: Used, inspected
- Included: Unit only; no additional accessories documented
Applications
The PM3601 modulation section is part of the Eaton transmitter product family used in satellite ground stations, earth terminals, and RF transmission systems where amplitude modulation of baseband signals onto an RF carrier is required. These modules were commonly deployed in 1970s–1980s-era satcom and terrestrial RF transmission equipment. The AM modulation architecture supports voice, data, and analog signal transmission over satellite and microwave links. Eaton Electronics' modular transmitter design allowed operators to configure systems for specific frequency bands and modulation requirements, making these components valuable in legacy satcom deployments and restoration of vintage transmission systems.
This Eaton Electronics PM3601 AM Modulation Section has been inspected and is in good used condition. The unit shows cosmetic wear consistent with its age and prior use in a working RF transmission environment. All connectors and external components appear intact. Please contact us before purchasing for current photos and additional condition details.
Warranty Information
Additional Information
Brand: |
Eaton Electronics |
Model: |
PM3601 |
Type: |
AM Modulation Section / RF Transmitter Module |
SKU: |
24836 |
Form Factor: |
Module / Card |
Application: |
Satellite Communications / RF Transmission |
Condition: |
Used – Inspected |
Condition Notes: |
Eaton PM3601 AM Modulation Section — Used, inspected condition. Cosmetic wear present. All connectors intact. No photos available; contact us for details. |
