Description
Eaton 9395 Battery Cabinet Series 1085 480V DC 225A E39 HKD-DC 400A Breaker Lot
Lot of three floor-standing battery extension cabinets for Eaton 9395 UPS systems. These units housed 48V DC battery modules across ten trays per cabinet and connected to the main UPS via 500VDC nominal DC bus infrastructure.
Specifications & What's Included
- Model: Eaton 9395 Series 1085 (MPN: TL2253E39321200)
- Voltage Rating: 480V DC / 500VDC Nominal DC Bus
- Current Rating: 225A DC

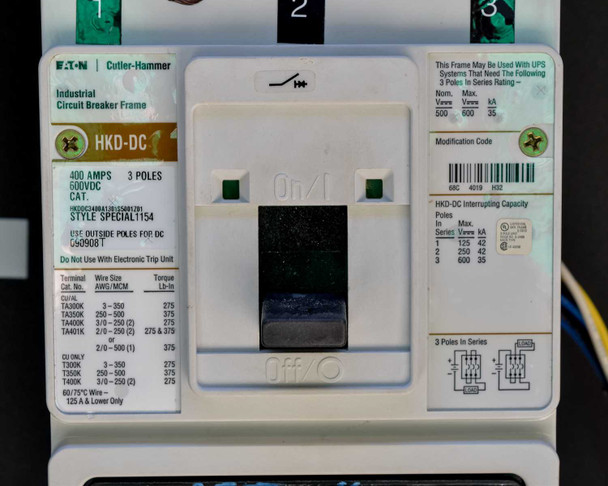

- Each cabinet includes Eaton Cutler-Hammer HKD-DC 400A 3-pole breaker (600VDC, 35kA)
- Battery Type: E39 (batteries removed; some connectors missing)

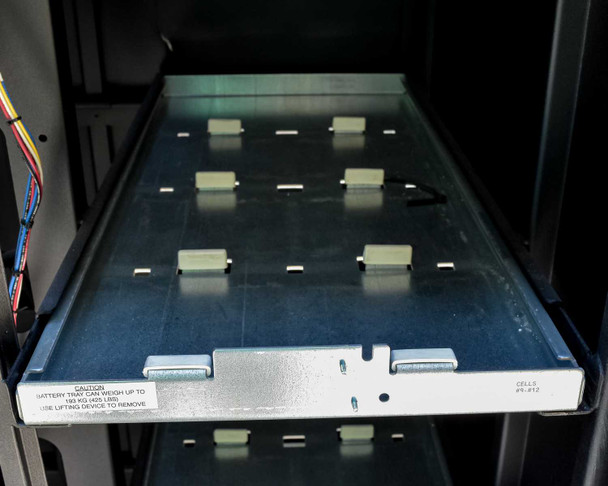

- Tray frames and internal wiring included
- Quantity: 3 cabinets (sold as lot)
Applications
These cabinets were used as battery extension modules for Eaton 9395 and 9395-275 UPS systems in data centers and computer rooms. They extend backup runtime by adding modular battery capacity to main UPS units. Compatible with systems requiring 480V DC battery strings and designed for mission-critical power applications where extended discharge times are necessary.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

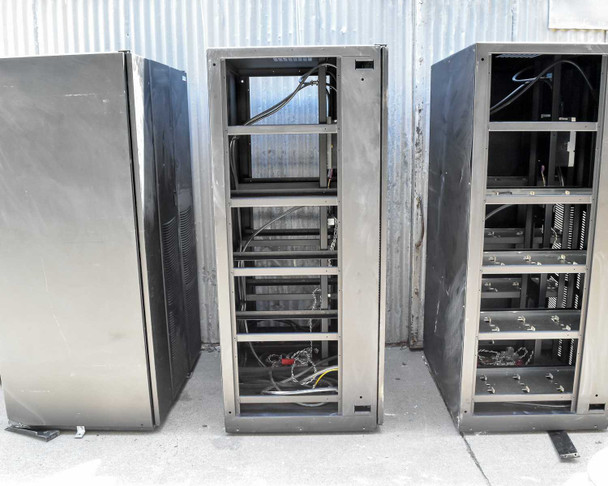

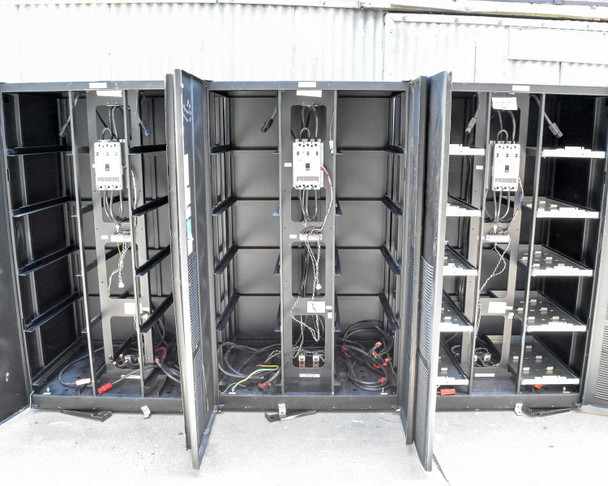

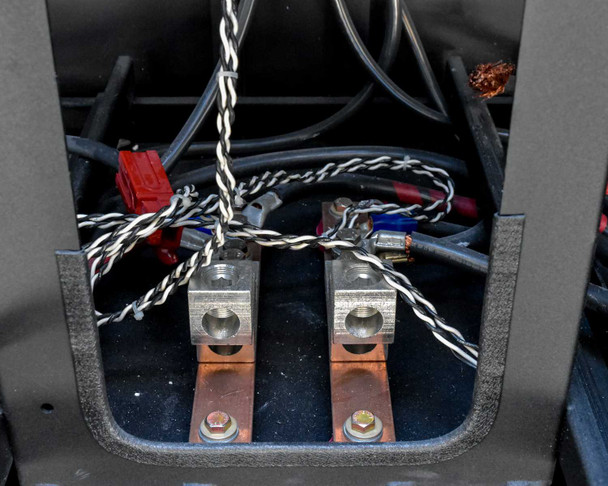

These three Eaton 9395 Power Xpert integrated battery cabinets (Series 1085, 480V DC / 225A) are being sold AS-IS for parts, reuse, or rebuild. They were recently deinstalled from a local datacenter that closed operations, where they were paired with a 225KVA Eaton 9395-275 UPS (not included). The batteries have been removed from all three cabinets, and some of the battery interconnect connectors are missing and will need to be replaced before the cabinets can be returned to service. Each cabinet retains its Eaton Cutler-Hammer HKD-DC 400A 3-pole 600VDC circuit breaker (Cat. HKDDC3400A1301S5001Z01, Style Special 1154, KT3400T trip unit), battery tray slide frames, interior wiring harnesses, DC bus copper lugs, and control terminal strips. Cosmetically, the cabinet exteriors show scuffing, surface marks, and minor scratches consistent with datacenter use and deinstallation handling — visible in the photo set. The cut DC bus cables visible in photos will require termination. These are sold strictly as-is with no functionality guarantee. Please view our full photo set and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Eaton |
Model: |
9395 |
Series: |
1085 |
MPN: |
TL2253E39321200 |
SKU: |
52908 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Lot of 3 cabinets; batteries removed; some battery connectors missing; HKD-DC 400A breakers included |
Form Factor: |
Floor-Standing Cabinet |
Quantity: |
3 Cabinets (sold as a lot) |
Battery Type: |
E39 |
Voltage Rating: |
480V DC |
Current Rating: |
225A DC |
Breaker Model: |
Eaton Cutler-Hammer HKD-DC |
Breaker Part Number: |
HKDDC3400A1301S5001Z01 |
Breaker Rating: |
400A, 3-Pole, 600VDC, 35kA |
Breaker Trip Unit: |
KT3400T Thermal Magnetic, 40°C |
DC Bus Voltage Nominal: |
500VDC Nominal |
DC Bus Voltage Max: |
600VDC Max |
Battery Tray Voltage: |

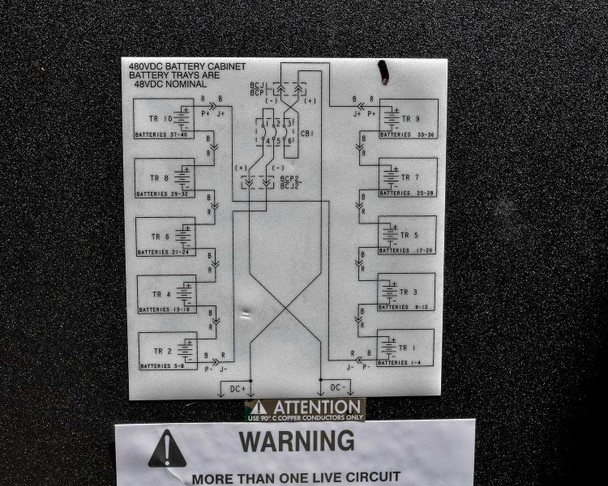

48V DC Nominal (10 trays per cabinet) |
Configuration Code: |
TL2253E39321200 |
Compatible With: |
Eaton 9395 UPS, 9395-275 |
Application: |
UPS Battery Extension, Computer Room / Data Center |
Country of Manufacture: |
USA |
Certifications: |
UL Listed (UPS Battery Duty) |
Condition Notes: |
Three Eaton 9395 Series 1085 battery cabinets sold AS-IS, for parts. Batteries removed; some battery connectors missing. Each cabinet includes HKD-DC 400A 3-pole DC breaker, tray frames, and wiring. No functionality guarantee. |
