Eastern Air Devices B63A34R-7 Centrifugal Blower 270/285 CFM 115V 1/6HP
The Eastern Air Devices (EAD) B63A34R-7 is a single-phase AC centrifugal blower rated for continuous duty service. It features a squirrel-cage impeller housed in a formed steel scroll casing with a rectangular discharge outlet, driven by an open-frame induction motor. Wire leads exit the motor for direct hardwire connection. Manufactured by Eastern Air Devices in Dover, New Hampshire, USA.
Specifications & What's Included

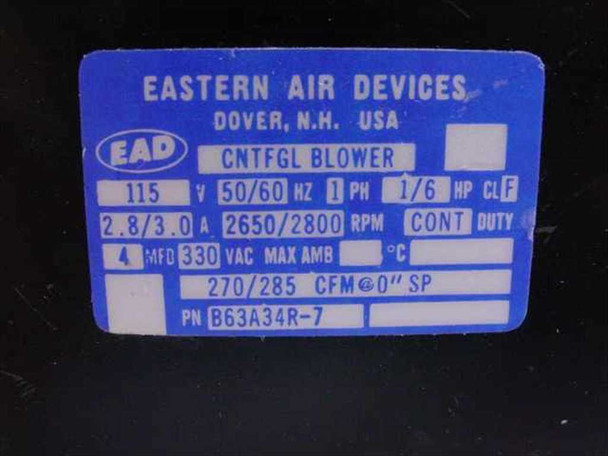

- Part Number: B63A34R-7
- Type: Centrifugal (Squirrel Cage) Blower
- Airflow: 270/285 CFM @ 0" static pressure
- Voltage: 115V
- Frequency: 50/60 Hz
- Phase: Single Phase (1PH)
- Current: 2.8/3.0 A
- Power: 1/6 HP
- Speed: 2650/2800 RPM
- Duty: Continuous (CONT)
- Insulation Class: CLF
- Max Ambient Rating: 330 VAC Max
- Origin: Eastern Air Devices, Dover, NH, USA
- Included: Blower unit with bare wire leads — no plug, no mounting hardware
Applications
Centrifugal blowers like the EAD B63A34R-7 are used throughout industrial, commercial, and OEM equipment where a compact, continuous-duty air-moving unit is needed. Common applications include cooling enclosures and electronics cabinets, providing combustion air in gas-fired equipment, ventilating laboratory instruments and process chambers, and serving as replacement blowers in HVAC, medical, and industrial OEM assemblies. The continuous-duty rating and squirrel-cage design make this type of blower well suited for around-the-clock operation in demanding environments. Eastern Air Devices has been a recognized supplier of precision motors and blowers to OEM and industrial markets for decades, and the B63A34R series is a standard offering for 115V single-phase applications.

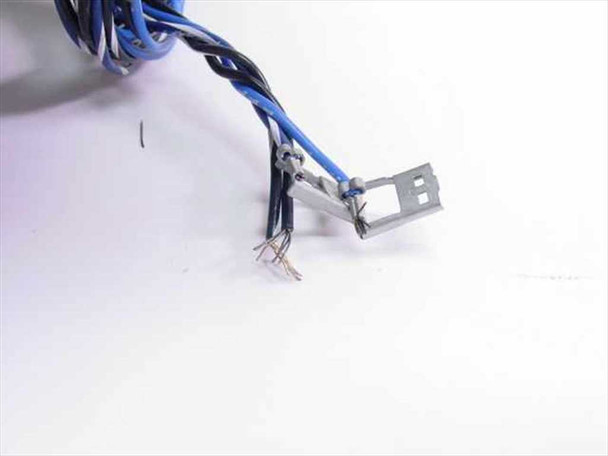

This Eastern Air Devices B63A34R-7 Centrifugal Blower has not been powered up or tested at our facility, but it was pulled from a working environment where it had been in active use. The unit is in good cosmetic condition overall — the black scroll housing is intact with no visible cracks or deformation, and the mounting bracket hardware is present. The bare wire leads show no visible damage. Some light surface wear is typical of used industrial equipment. Please review all photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Eastern Air Devices |
Model: |
B63A34R-7 |
MPN: |
B63A34R-7 |
SKU: |
31527 |
Type: |
Centrifugal Blower |
Airflow Rating: |
270/285 CFM @ 0" SP |
Voltage: |
115V |
Current Rating: |
2.8/3.0 A |
Power Rating: |
1/6 HP |
Phase: |
Single Phase |
Frequency: |
50/60 Hz |
Speed (RPM): |
2650/2800 RPM |
Duty Cycle: |
Continuous Duty |
Insulation Class: |
CLF |
Max Ambient Voltage Rating: |
330 VAC Max |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Blower unit only — bare wire leads, no plug or mounting hardware included. |
Condition Notes: |
This Eastern Air Devices B63A34R-7 Centrifugal Blower was pulled from a working environment. Not powered or tested at our facility. Housing is intact, bracket hardware present, wire leads show no damage. Normal cosmetic wear. |
