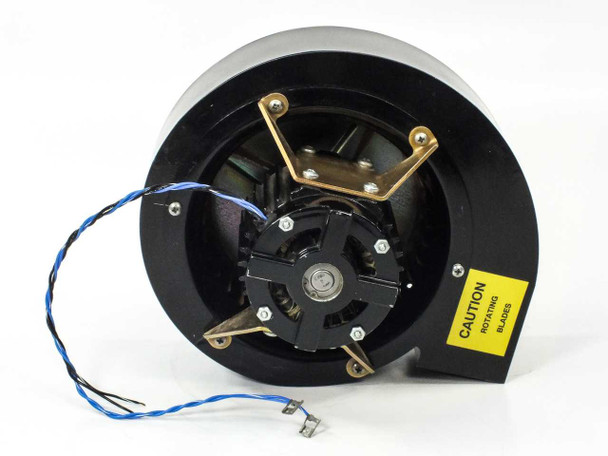

Eastern Air Devices B63A34R-7 Centrifugal Blower 270/285CFM 115VAC 1/6HP
The Eastern Air Devices B63A34R-7 is a single-phase AC centrifugal blower with a squirrel cage impeller housed in a scroll-style casing. It is rated for continuous duty operation and moves 270/285 CFM of air at zero static pressure. The motor runs on 115V AC (50/60 Hz) and draws 2.8/3.0 amps at 2650/2800 RPM. A 4 MFD 330VAC starting capacitor is required for operation and is not included with this unit.
Specifications & What's Included
- Model: Eastern Air Devices B63A34R-7
- Type: Centrifugal blower, squirrel cage impeller, scroll housing
- Voltage: 115V AC
- Frequency: 50/60 Hz
- Phase: Single phase (1PH)
- Power: 1/6 HP
- Current draw: 2.8/3.0 A
- Speed: 2650/2800 RPM
- Airflow: 270/285 CFM at 0 SP CLF
- Duty cycle: Continuous duty
- Start capacitor required: 4 MFD 330VAC (not included)
- Date code: 9338
- Manufactured: Dover, NH, USA
- Lead wires: Multi-conductor (blue/black/white visible)
- Mounting: Brass bracket assembly
- Includes: Blower only — no start capacitor, no mounting hardware beyond attached bracket
Applications
Centrifugal blowers of this type are used broadly in industrial, HVAC, electronics cooling, and equipment ventilation applications where a compact, self-contained air-moving unit is needed. The squirrel cage design generates airflow by centrifugal force through the scroll housing, making it well suited for applications requiring moderate static pressure capability along with a high volume of air movement. Eastern Air Devices, based in Dover, NH, has long produced blowers and motors for OEM equipment manufacturers, and the B63A34R-7 is representative of their continuous-duty fractional-horsepower line. Units like this are commonly found in industrial enclosure ventilation, medical equipment cooling, laser systems, telecommunications cabinets, and scientific instrument chassis. The date code 9338 places manufacture in the 38th week of 1993.
This Eastern Air Devices B63A34R-7 centrifugal blower has been tested and is in working order. The unit is in good used condition with normal cosmetic wear consistent with prior service use. Note that a 4 MFD 330VAC starting capacitor is required for operation and is not included with this blower. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Eastern Air Devices |
Model: |
B63A34R-7 |
MPN: |
B63A34R-7 |
SKU: |
50387 |
Type: |
Centrifugal Blower (Squirrel Cage) |
Voltage: |
115V AC |
Frequency: |
50/60 Hz |
Phase: |
Single Phase |
Power Rating: |
1/6 HP |
Current Draw: |
2.8/3.0 A |
Speed: |
2650/2800 RPM |
Airflow: |
270/285 CFM at 0 SP CLF |
Duty Cycle: |
Continuous Duty |
Start Capacitor Required: |
4 MFD 330VAC (not included) |
Date Code: |
9338 |
Country/Region of Manufacture: |
United States |
Form Factor: |
Centrifugal / Scroll Housing |
Seller Notes: |
Blower only — 4 MFD 330VAC start capacitor required but not included |
Condition Notes: |
This Eastern Air Devices B63A34R-7 centrifugal blower has been tested and is in working order. Good used condition with normal wear. A 4 MFD 330VAC start capacitor is required but not included. Please view photos and contact us with any questions. |
