Description
Dynetcom 153-004B-16 Dyna-Patch Mark-1 16-Channel Patching Module 12 CKT
A 16-channel rackmount patching module designed for test circuit access and monitoring of modem, computer port, and data connections. Provides passive monitoring and signal routing via DB25 connectors.
Specifications & What's Included
- Model: 153-004B-16 Dyna-Patch Mark-1
- 16 channels, 12 circuits
- 2U rack mount form factor
- DB25 (25-pin D-Sub) connectors with single-hole monitoring ports
- Passive management type
- Made in USA
- Unit only
Applications
Dyna-Patch modules were used in telecom and data environments for circuit testing, signal monitoring, and temporary connections across modem banks and computer port installations. These passive patching units served as cross-connect points in legacy test labs and carrier facilities where technicians needed to access multiple data lines without breaking primary connections. Commonly deployed in telecommunications operations, carrier hotels, and data centers during the 1980s–2000s telecom era.

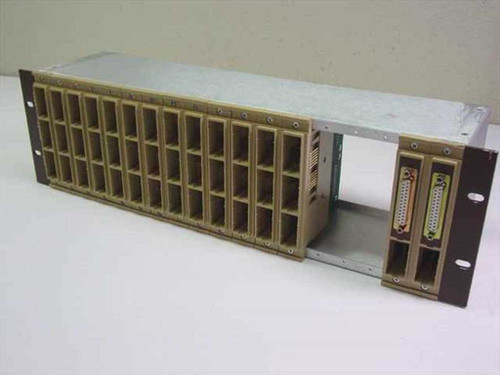

This Dynetcom Dyna-Patch Mark-1 153-004B-16 16-channel patching module has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional. The chassis and front panel are clean with normal light wear consistent with rack service. The DB25 rear connectors appear intact and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Dynetcom |
Model: |
153-004B-16 |
MPN: |
153-004B-16 |
Secondary Model: |
Dyna-Patch Mark-1 |
Type: |
16-Channel Rackmount Patching Module |
SKU: |
39342 |
Number of Channels: |
16 |
Number of Circuits: |
12 |
Connector Type: |
DB25 (25-pin D-Sub) |
Form Factor: |
Rack Mount |
Rack Units: |
2U |
Interface Type: |
DB25 single-hole monitoring ports |
Application: |
Modem, computer port, and data test circuit access |
Management Type: |
Passive / Monitoring |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; pulled from working environment where it was in active use. |
Condition Notes: |
Dynetcom Dyna-Patch Mark-1 153-004B-16 patching module inspected and in good used condition. Pulled from a working environment where it was in active use and functional. DB25 connectors intact. Normal light wear. |
