Dynatech 3ft 12-Pin Gold Contact Pogo Pin Interconnect Cable Assembly USA

Dynatech 3ft 12-Pin Gold Contact Pogo Pin Interconnect Cable Assembly USA

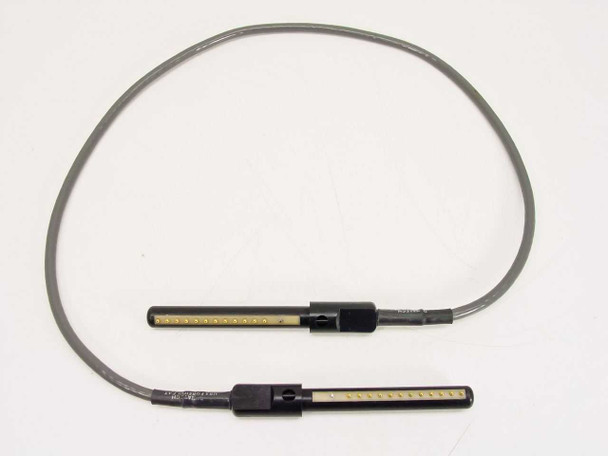

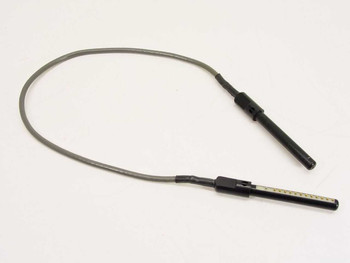

This is a Dynatech 12-pin pogo pin interconnect cable assembly, approximately 3 feet in length. The cable features two inline spring-loaded pogo pin connector bars, one at each end, with gold-plated spring contacts. The assembly is marked "US & Foreign Patent" and "Made in USA" on the connector body molding. Pogo pin cables of this style are used to make reliable, repeatable electrical connections between circuit boards, test fixtures, and instrumentation without the need for soldered or latching connectors.

Specifications & What's Included

• Brand: Dynatech
• Cable length: approximately 3 feet (36 inches)
• Number of pins: 12

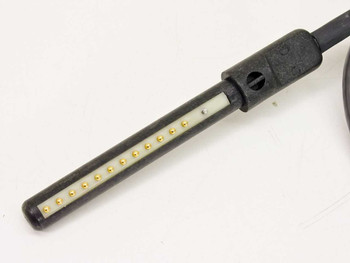

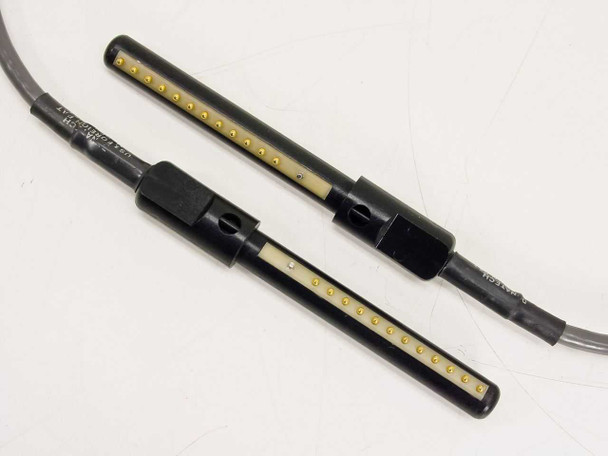

• Contact type: Gold-plated spring pogo pins
• Connector style: Inline pogo pin bar, both ends
• Cable jacket: Gray, round jacketed cable
• Country of manufacture: USA (US & Foreign Patent)
• Includes: Cable assembly only

Applications

Pogo pin cable assemblies like this Dynatech unit are commonly used in electronics test fixtures, automated test equipment (ATE), bed-of-nails testers, and circuit board programming jigs where a fast, non-permanent connection to a circuit board or module is needed. The spring-loaded gold contacts ensure consistent electrical contact across repeated insertions without wearing out solder pads or connector pins on the target board. This type of interconnect has been a standard approach in PCB manufacturing test and in-circuit test (ICT) environments since the 1970s and remains in active use today wherever repeatable, tool-free electrical connections are required. Dynatech produced a range of precision interconnect hardware for industrial and instrumentation applications, and their pogo pin assemblies were associated with test and measurement as well as embedded systems integration.
