Description
Dymax 5000-EC 400W UV Light Source Light-Welder with EC Power Supply
The Dymax 5000-EC is a modular UV/visible light source designed for high-intensity curing of UV and visible-light-activated adhesives, coatings, and inks. The system pairs the 5000-EC lamp head with a dedicated 400 Watt EC Power Supply, providing a self-contained bench-top curing solution. Cure times are typically in the range of 10 to 30 seconds depending on material and cure depth. The Curtis lamp hours meter on the power supply reads 621.9 hours, providing a documented measure of lamp life used to date.
Specifications & What's Included
- Manufacturer: Dymax Corporation
- Model: 5000-EC (Light-Welder 5000-EC)
- Output power: 400 Watts
- Light spectrum: UV and visible
- Typical cure time: 10–30 seconds
- Input voltage: 90–264V AC (universal)
- Input current: 7A
- Input frequency: 50–60 Hz
- Lamp hours logged: 621.9 hours (Curtis digital meter)
- Cooling: fan-cooled lamp head (top-mounted fan visible in photos)
- Internal reflector: faceted polished reflector housing around lamp element
- AC inlet: IEC C14 on power supply rear panel
- Lamp head to power supply connection: multi-pin connector and cable
- Country of manufacture: USA (Made in USA label on power supply)
- Includes: Dymax 5000-EC lamp head and 400 Watt EC Power Supply
Applications
The Dymax 5000-EC is used in manufacturing and assembly environments where fast, reliable UV curing is required. It is well suited for curing UV-activated adhesives used in electronics assembly, optical bonding, medical device assembly, and general industrial bonding applications. The system is also used for curing UV coatings and UV/visible inks on substrates where flood exposure from a benchtop source is practical. Dymax's Light-Welder line has been a standard in UV adhesive curing workstations for decades, widely used alongside Dymax's own adhesive product lines as well as those from other UV-cure chemistry suppliers. The modular design — with a separate power supply and lamp head — allows the head to be repositioned or integrated into a production fixture while keeping the power electronics on a stable bench surface.

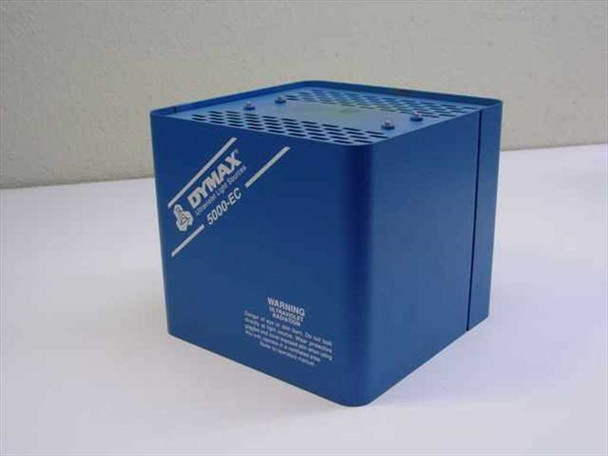

This Dymax 5000-EC 400W UV Light Source and 400 Watt EC Power Supply have been inspected and appear to be in good used condition. The lamp hours meter reads 621.9 hours, giving buyers a clear picture of lamp life consumed. The blue anodized lamp head housing shows some surface smudging and handling marks on the aluminum panels, which is typical for equipment of this type. The power supply housing is clean with no visible damage. Both the lamp head and power supply are included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Dymax |
Model: |
5000-EC |
MPN: |
5000-EC |
Type: |
UV/Visible Light Source Curing System |
SKU: |
31248 |
Power Output: |
400 Watts |
Input Voltage: |
90–264V AC |
Input Current: |
7A |
Input Frequency: |
50–60 Hz |
Lamp Hours: |
621.9 hours (Curtis meter) |
Power Supply Model: |
400 Watt EC Power Supply |
Light Type: |
UV/Visible (ultraviolet and visible spectrum) |
Cure Time: |
Typically 10 to 30 seconds |
Application: |
UV adhesive, coating, and ink curing |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop / Modular |
Cooling: |
Fan-cooled |
Connector – AC Input: |
IEC C14 inlet |
Seller Notes: |
Includes Dymax 5000-EC UV lamp head and 400 Watt EC Power Supply. |
Condition Notes: |
Dymax 5000-EC 400W UV Light Source with EC Power Supply inspected and in good used condition. Curtis lamp hours meter reads 621.9 hrs. Housing shows normal handling marks. Both lamp head and power supply included. |
