The Dwyer 605-10C is a Magnehelic Differential Pressure Indicating Transmitter combining an analog dial gauge with a 4–20 mA electrical output signal in a single instrument. It measures differential pressure in the 0–10 inches of water column range and simultaneously provides a proportional current output for remote monitoring or control systems. Dwyer's Magnehelic series is one of the most widely recognized lines of differential pressure gauges in industrial and commercial use.

Specifications & What's Included

• Manufacturer: Dwyer Instruments, Michigan City, IN, USA
• Model / Catalog No.: 605-10C
• Type: Magnehelic Differential Pressure Indicating Transmitter
• Measurement Range: 0–10 Inches of Water Column (in WC)
• Output: 4–20 mA analog transmitter signal

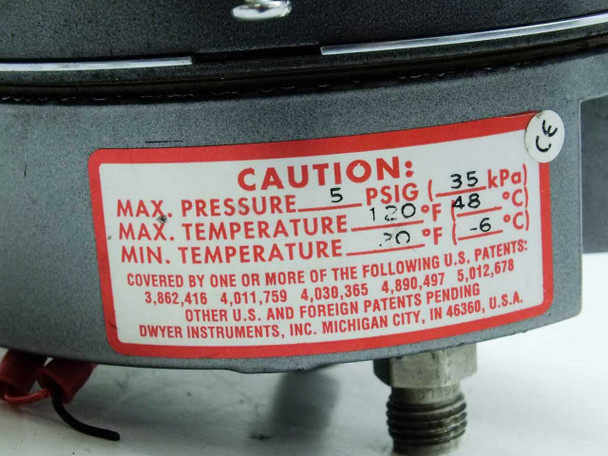

• Max Pressure: 5 PSIG (35 kPa)
• Max Temperature: 120°F (48°C)
• Min Temperature: 20°F (-6°C)
• Display: Round analog dial graduated in inches of water
• Adjustment: Front-mounted Span and Zero knobs; Pointer Zero adjustment at bottom
• Pressure Ports: Two rear-mounted metal fittings
• Electrical Connections: Rear terminal block (wiring leads visible in photos)
• Certifications: CE marked
• Housing: Round cast body with clamp ring; surface shows normal industrial wear
• Included: Gauge/transmitter unit only — no cables, mounting hardware, or fittings

Applications
