Description
Dwyer VFB-67-SSV-PF Variable Area Flowmeter Air 1-20 LPM Panel Mount Acrylic

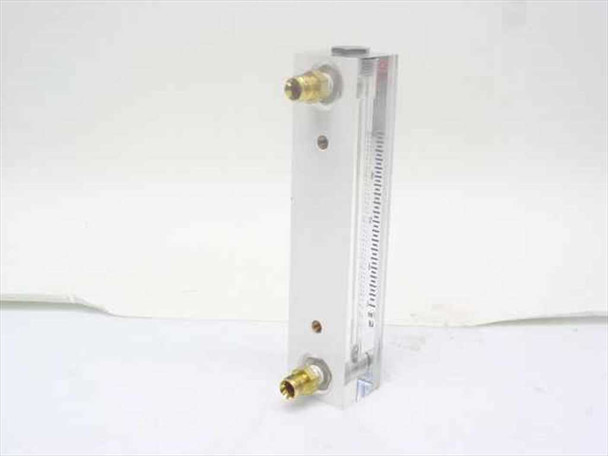

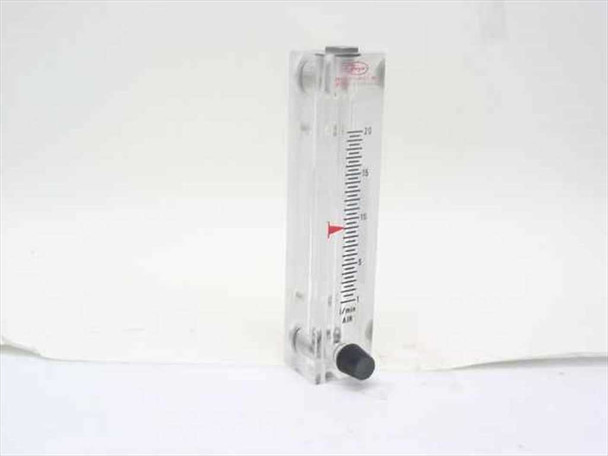

The Dwyer Instruments VFB-67-SSV-PF is a variable area flowmeter (rotameter) designed for measuring air flow in industrial and laboratory settings. It features a clear acrylic tube body mounted in an aluminum manifold with an integrated stainless steel needle valve for precise flow adjustment, and brass compression fittings at the inlet and outlet. The graduated scale reads 1 to 20 L/min for air. Made in Michigan City, Indiana, USA.
Specifications & What's Included
- Manufacturer: Dwyer Instruments, Inc. — Michigan City, Indiana, USA
- Catalog Number: VFB-67-SSV-PF
- Type: Variable area flowmeter (rotameter)
- Measurement medium: Air
- Flow range: 1–20 LPM (L/min)
- Tube material: Clear acrylic
- Manifold/body material: Aluminum
- Valve: Integrated stainless steel needle valve (SSV) with black knob
- Port fittings: Brass compression fittings, top and bottom
- Mounting: Panel face mount (PF)
- Float indicator: Red
- Country of manufacture: United States
- Includes: Flowmeter unit only — no additional fittings, tubing, or hardware
Applications
Variable area flowmeters like the Dwyer VFB series are widely used in industrial process control, laboratory gas distribution, clean room systems, and pneumatic test setups to monitor and regulate air or gas flow rates. The integrated stainless steel needle valve allows the operator to set a precise flow rate directly at the meter, eliminating the need for a separate control valve in the line. Panel face mount models are designed to be installed flush into an enclosure or panel for a clean, integrated look in instrumentation panels and control cabinets. Dwyer Instruments has manufactured this style of flowmeter for decades, and the VFB series remains a standard choice in HVAC, process gas, and laboratory air distribution applications.
This Dwyer Instruments VFB-67-SSV-PF variable area flowmeter is in good used condition. It was pulled from a working environment where it was previously in service. The acrylic tube is clear and free of visible cracks or crazing, and the brass fittings and needle valve appear intact. There is light surface wear consistent with normal use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Dwyer |
Model: |
VFB-67-SSV-PF |
MPN: |
VFB-67-SSV-PF |
SKU: |
31362 |
Type: |
Variable Area Flowmeter (Rotameter) |
Measurement Medium: |
Air |
Flow Range: |
1-20 LPM (L/min) |
Scale Units: |
L/min Air |
Tube Material: |
Acrylic |
Body/Manifold Material: |
Aluminum |
Valve Type: |
Stainless Steel Needle Valve (SSV) |
Fitting Type: |
Brass Compression Fittings |
Mounting Style: |
Panel Face Mount |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Flowmeter only — no additional fittings, tubing, or hardware included. |
Condition Notes: |
This Dwyer VFB-67-SSV-PF variable area flowmeter is in good used condition, pulled from a working environment. Acrylic tube is clear; brass fittings and needle valve appear intact. Normal light wear. Please contact us with any questions. |
