Description
Dwyer RMA-6-SSV Acrylic Desiccator Two Compartment w/ Flow Meter 16x16x16 SCFH

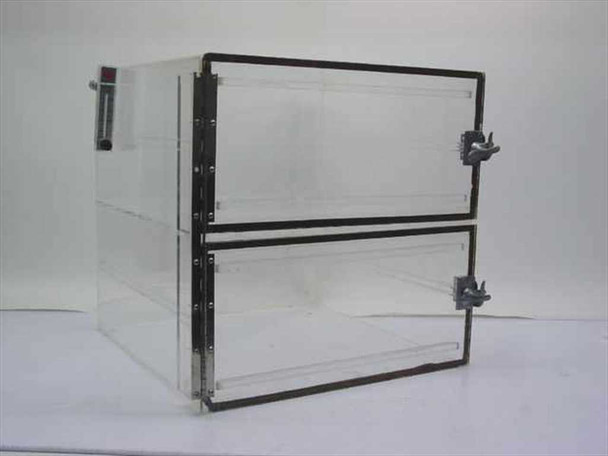

This is a two-compartment clear acrylic tabletop desiccator fitted with an integrated Dwyer Instruments RMA-6-SSV variable-area flow meter for controlled gas purging. The cabinet is constructed entirely of transparent acrylic, allowing full visibility of stored contents without opening the doors. Each of the two stacked compartments is sealed by a door with a perimeter rubber gasket and secured by a toggle clamp latch, providing an airtight closure suitable for low-humidity or inert-gas storage environments.
Specifications & What's Included
- Brand: Dwyer Instruments, Inc. — Michigan City, IN, USA

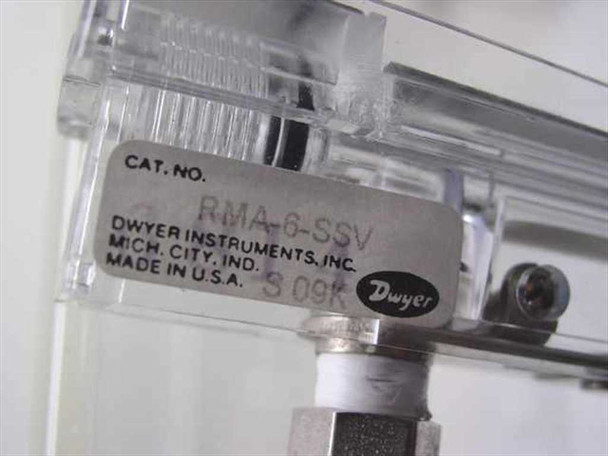

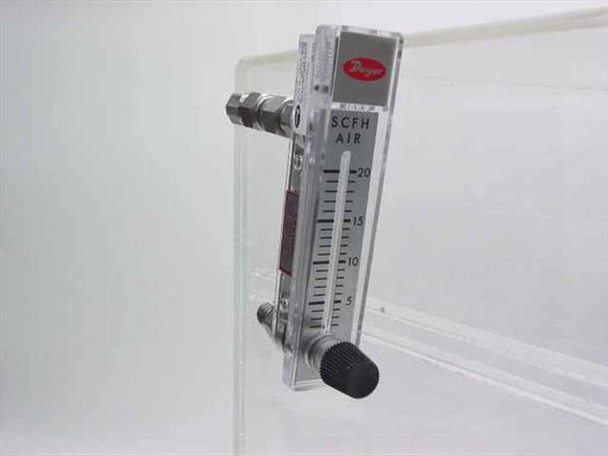

- Flow Meter Model: Dwyer RMA-6-SSV (variable-area rotameter)
- Flow Meter Scale: 0–20 SCFH Air
- Flow Meter Fittings: compression inlet fitting (top) and needle valve flow control (bottom)
- Cabinet Material: clear acrylic (all panels)
- Approximate Exterior Dimensions: 16 in. W × 16 in. D × 16 in. H
- Compartments: 2 (upper and lower, stacked)
- Door Seals: black rubber perimeter gaskets
- Door Latches: toggle clamp hardware (one per door)
- Made in USA (flow meter label confirmed)
- Desiccant media not included
Applications
Acrylic desiccators like this are standard storage cabinets in laboratory, cleanroom, and semiconductor environments where moisture-sensitive components, samples, or materials must be kept in a controlled low-humidity atmosphere. The cabinet can be purged with dry nitrogen or clean dry air fed through the flow meter, displacing ambient moisture and maintaining a stable internal environment. Typical uses include storing hygroscopic chemicals, electronic components awaiting assembly, optical elements, thin-film samples, and biological specimens. The Dwyer RMA-6-SSV rotameter allows operators to set and monitor the purge gas flow rate precisely — the 0–20 SCFH scale is appropriate for maintaining a gentle positive-pressure purge in a cabinet of this size. Two-compartment designs allow different material types or access frequencies to be separated without disturbing the other chamber. These cabinets are common in semiconductor fab support areas, university research labs, and quality-control environments.
This Dwyer Instruments RMA-6-SSV two-compartment acrylic desiccator has been inspected and appears to be in good used condition. The clear acrylic panels are free of major cracks or crazing, and the toggle clamp latches and rubber door seals look intact. The integrated Dwyer RMA-6-SSV flow meter (0–20 SCFH Air) is present and shows no obvious damage. Normal light handling marks are visible on the exterior consistent with prior lab use. No desiccant media is included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Dwyer |
Model: |
RMA-6-SSV |
MPN: |
RMA-6-SSV |
Type: |
Acrylic Desiccator with Flow Meter |
SKU: |
30839 |
Number of Compartments: |
2 |
Interior Dimensions: |
16 x 16 x 16 in. (approx.) |
Cabinet Material: |
Clear Acrylic |
Flow Meter Model: |
Dwyer RMA-6-SSV |
Flow Meter Scale: |
0–20 SCFH Air |
Door Hardware: |
Toggle Clamp Latches with Rubber Perimeter Seal |
Country/Region of Manufacture: |
United States |
Form Factor: |
Tabletop / Benchtop |
Application: |
Low-Humidity Storage, Cleanroom, Lab, Semiconductor |
Seller Notes: |
Desiccator with integrated Dwyer RMA-6-SSV flow meter — no desiccant media included. |
Condition Notes: |
This Dwyer RMA-6-SSV acrylic desiccator has been inspected and is in good used condition. Acrylic panels, toggle clamps, and rubber door seals appear intact. Dwyer flow meter present, no obvious damage. No desiccant included. |
