DTK Computer PIP-151 AT Power Supply 150W 120/240V 50/60Hz Taiwan ROC

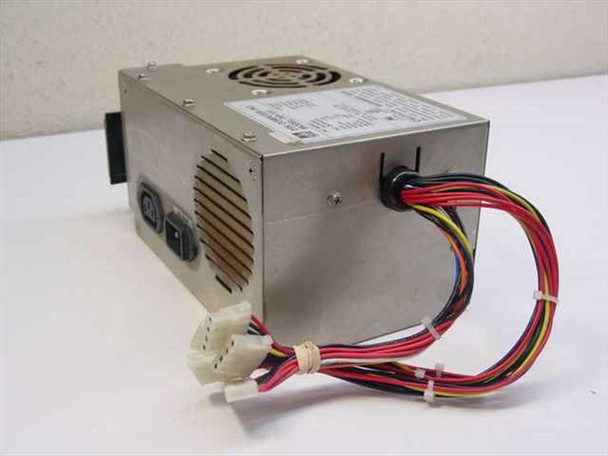

The DTK Computer PIP-151 is a vintage AT-style desktop computer power supply rated at 150 watts. Made by DTK Computer Inc. in Taiwan, it provides the standard DC output rails required by AT-form-factor desktop systems and features a hardwired rocker on/off switch and a top-mounted cooling fan. It accepts both 120V and 240V AC input, making it suitable for use in North American and international AT-compatible systems.
Specifications & What's Included
- Manufacturer: DTK Computer Inc.
- Model: PIP-151
- Form Factor: AT desktop
- Maximum Output Power: 150W
- AC Input Voltage: 120V / 240V (dual voltage)
- AC Input Frequency: 50/60Hz
- AC Input Current: 4A @ 120V / 2A @ 240V
- DC Output +5V: 15A Max
- DC Output +12V: 6A Max
- DC Output -5V: 0.5A Max
- DC Output -12V: 0.5A Max
- DC Output GND and P.G. (Power Good) lines present

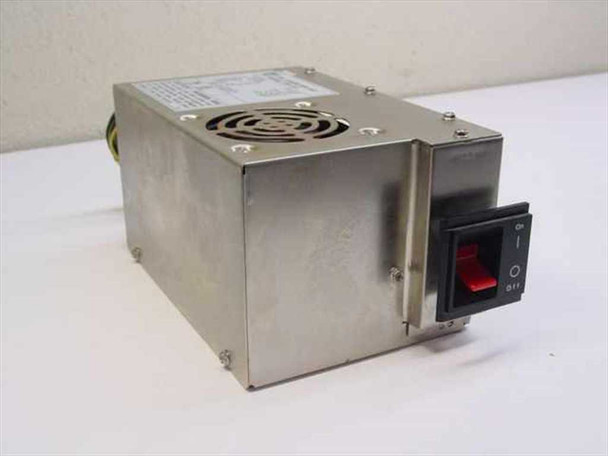

- Cooling: Top-mounted internal fan
- Power Switch: Hard-wired rocker on/off switch (On/Off labeled)

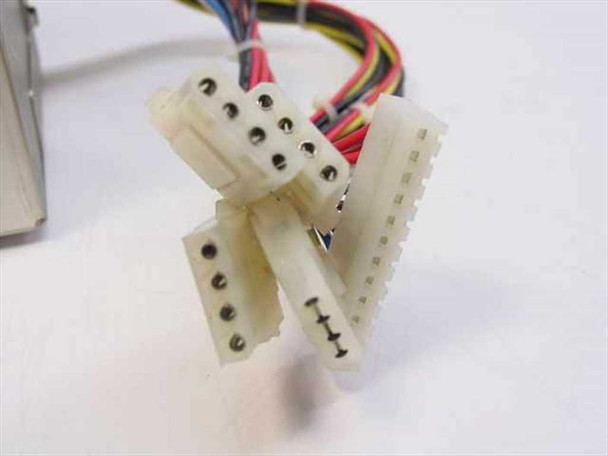

- Output Connectors: Multiple AT-style Molex connectors on full wire harness
- Certifications: UL (E115037), CSA (LR80205)
- Country of Manufacture: Taiwan R.O.C.
- Included: Power supply unit with all output harnesses attached
Applications
The DTK PIP-151 is an AT-style power supply, the form factor that preceded ATX and dominated desktop PC design from the early 1980s through the mid-1990s. AT power supplies were used in IBM PC/XT, PC/AT, and compatible desktop computers of that era, providing regulated DC power to the motherboard, hard drives, and peripherals via Molex connectors. Unlike the later ATX standard, AT supplies feature a hard mechanical switch that directly interrupts AC power rather than the soft-switching approach used in ATX systems. Today, these units are primarily sought for maintaining, restoring, or repairing vintage AT-era desktop computers — including early IBM compatibles, vintage workstations, and industrial PCs that retain the AT motherboard form factor. The dual 120/240V input makes this unit usable in both US and international vintage systems.
This DTK Computer PIP-151 AT power supply has been bench-tested at our facility and is in good working condition. The metal enclosure is in solid shape with light surface wear and minor scuffing consistent with age and use — typical for a vintage AT-era PSU. The rocker power switch and all output connectors are intact and undamaged. All output harnesses are present and included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
DTK |
Model: |
PIP-151 |
MPN: |
PIP-151 |
SKU: |
34589 |
Type: |
AT Desktop Computer Power Supply |
Maximum Output Power: |
150W |
AC Input Voltage: |
120/240V |
AC Input Frequency: |
50/60Hz |
AC Input Current: |
4A (120V) / 2A (240V) |
DC Output +5V: |
15A Max |
DC Output +12V: |
6A Max |
DC Output -5V: |
0.5A Max |
DC Output -12V: |
0.5A Max |
Form Factor: |
AT |
Cooling: |
Internal fan (80mm, top-mounted) |
Power Switch: |
Hard rocker on/off switch (inline) |
Output Connectors: |
AT-style Molex connectors (multiple) |
Country/Region of Manufacture: |
Taiwan |
Certifications: |
UL (E115037), CSA (LR80205) |
Seller Notes: |
Includes all output power harnesses; hard rocker power switch attached |
Condition Notes: |
This DTK Computer PIP-151 AT power supply has been bench-tested at our facility and is in good working condition. Light surface wear on the enclosure. All output connectors and harnesses present. |
