Description
DPC Micromix 5 Orbital Shaker Mixer 24V DC RS-232 Lab Benchtop Euro/DPC
The DPC Micromix 5 is a compact benchtop orbital shaker designed for mixing microplates, tubes, vials, and other sample containers in laboratory settings. Manufactured by Euro/DPC of Wales, UK, it features a flat removable mixing platform, a digital display, and simple push-button controls for RUN and MIX MODE selection. It connects to a host computer via a rear-panel RS-232 (DB9) serial interface for programmatic control.
Specifications & What's Included
- Manufacturer: DPC / Euro/DPC (Wales, UK)
- Model: Micromix 5
- Power Input: 24V DC, 2A (external power supply — see below)

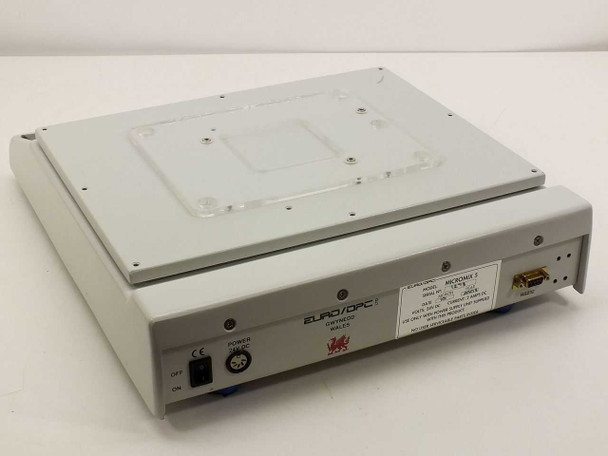

- Power Connector: 4-pin DIN inlet on rear panel

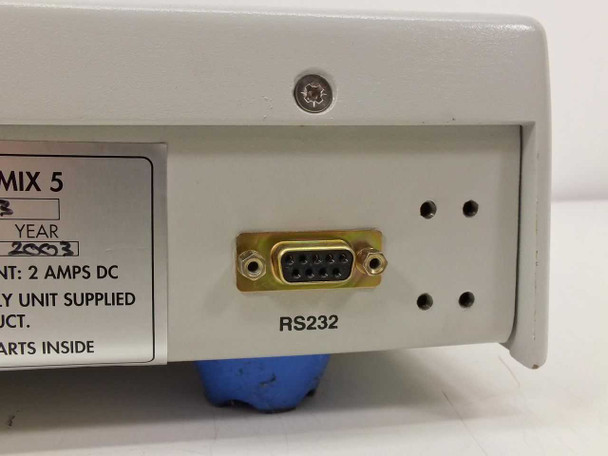

- Interface: RS-232 serial port (DB9, rear panel)

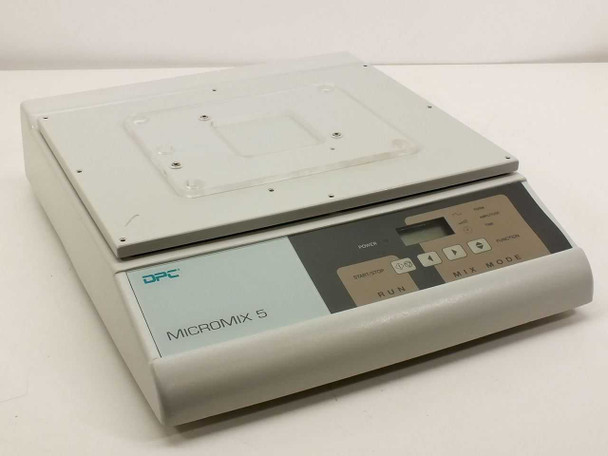

- Controls: RUN button, MIX MODE buttons, digital readout display, POWER indicator LED

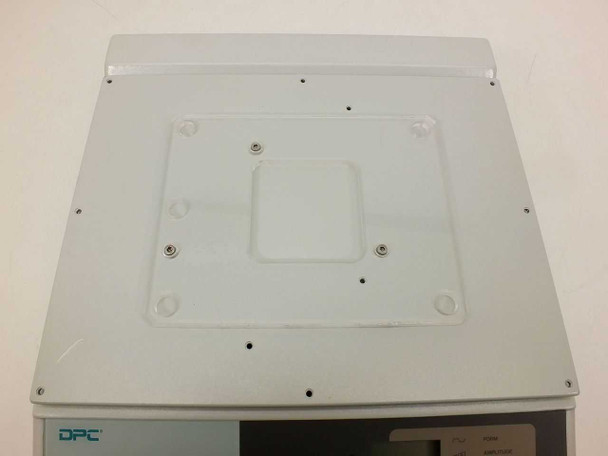

- Platform: Flat removable mixing deck with central mounting bracket and rubber-grip feet
- Certifications: CE
- Date of Manufacture: October 2003
- Form Factor: Benchtop
- Includes: Original 24V DC external power supply with AC power cord
Applications
The Micromix 5 is an orbital shaker intended for laboratory use in molecular biology, immunology, clinical diagnostics, and biochemistry workflows. It is well suited for mixing microplates, microtubes, Eppendorf tubes, and similar sample vessels — common tasks in ELISA assays, cell culture incubation, sample preparation, and hybridization protocols. The RS-232 interface allows integration with laboratory automation software or data-logging systems. Euro/DPC produced this instrument primarily for use in clinical and research labs during the early 2000s; the Micromix series was widely used in immunoassay and diagnostics environments that required gentle, consistent orbital mixing of multi-well plates and tube racks.
This DPC Micromix 5 orbital shaker mixer has been inspected and appears to be in good used condition. It was pulled from a working lab environment where it was previously in service. The unit shows normal cosmetic wear consistent with lab use; the housing and platform are intact with no notable damage visible. The original 24V DC power supply is included. Please review our photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
DPC (Euro/DPC) |
Model: |
Micromix 5 |
MPN: |
Micromix 5 |
Type: |
Orbital Shaker Mixer |
SKU: |
45376 |
Power Requirements: |
24V DC, 2A (via included external power supply) |
Interface / Connectivity: |
RS-232 (DB9) |
Power Connector: |
4-pin DIN, 24V DC |
Form Factor: |
Benchtop |
Controls: |
RUN, MIX MODE buttons; digital display; POWER indicator |
Platform / Deck: |
Flat removable mixing platform with mounting points |
Manufacture Date: |
October 2003 |
Certifications: |
CE |
Country/Region of Manufacture: |
Wales, UK (Euro/DPC) |
Seller Notes: |
Includes original 24V DC power supply unit |
Compatible With: |
Microplates, tubes, vials, sample containers |
Condition Notes: |
This DPC Micromix 5 orbital shaker has been inspected and is in good used condition, pulled from a working lab environment. Includes the original 24V DC power supply. Normal cosmetic wear. Please contact us with any questions. |
