Dorian

Dorian D30BXA-7-71C High Speed Reverse Cut-Off Holder BXA Lathe Tool Post

(No reviews yet) Write a Review
SKU:
47286
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

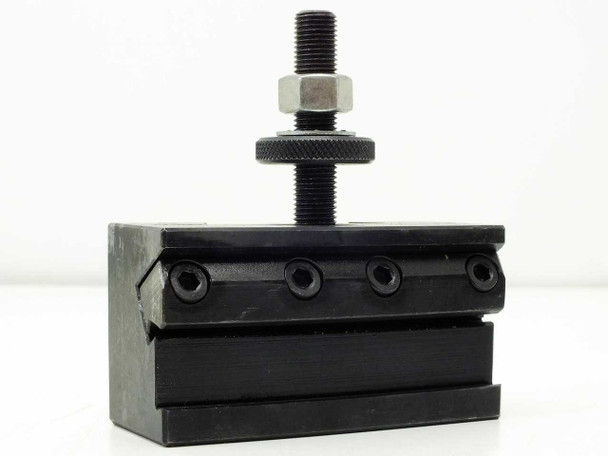

  • Dorian D30BXA-7-71C High Speed Reverse Cut-Off Holder — front-left view showing dovetail base, four set screws on front face, and top clamping bolt assembly

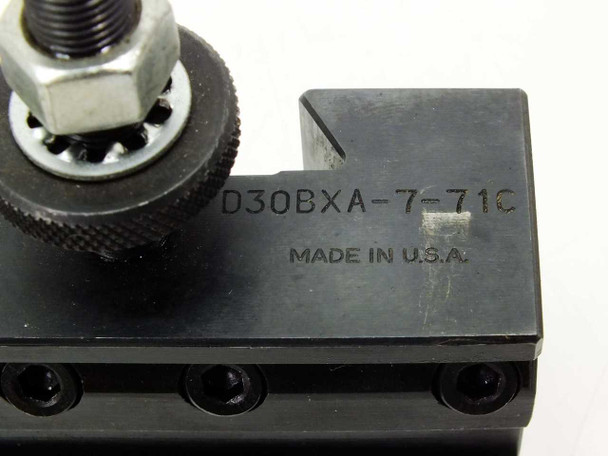

  • Dorian D30BXA-7-71C model number and 'Made in U.S.A.' stamp closeup on the side of the holder body

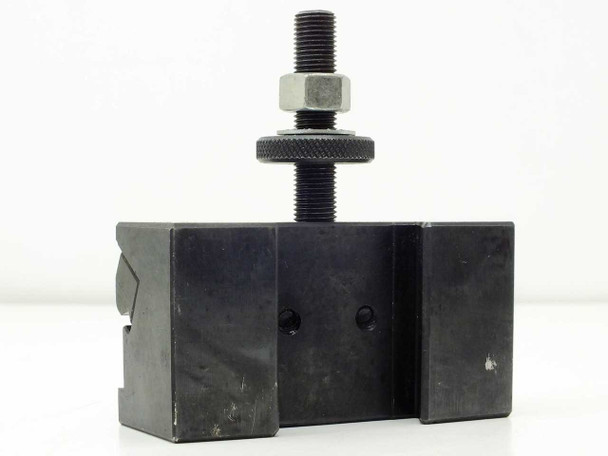

  • Dorian D30BXA-7-71C Reverse Cut-Off Holder — rear view showing two bolt holes on the back face and dovetail slot base

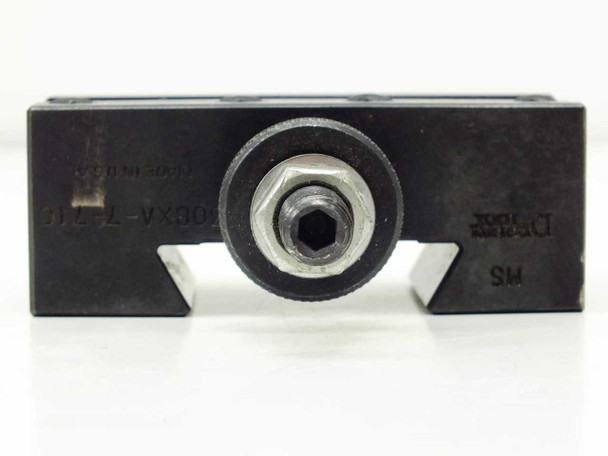

  • Dorian D30BXA-7-71C — bottom view showing dovetail slot profile and center clamping bolt, with model number visible on side
$125.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Dorian D30BXA-7-71C High Speed Reverse Cut-Off Holder BXA Lathe Tool Post

The Dorian D30BXA-7-71C is a High Speed Reverse Cut-Off Holder designed for BXA-series quick-change tool post systems. This holder is configured for reverse or back-side parting and cut-off operations, allowing the lathe operator to part off stock with the cutting tool inverted — a setup that reduces tool chatter and improves chip clearance on many lathes. It is manufactured in the USA to close tolerances and mounts directly into any BXA-compatible quick-change tool post without modification.

Specifications & What's Included

  • Model / MPN: D30BXA-7-71C
  • Manufacturer: Dorian Tool (Made in U.S.A. — stamped on body)
  • Tool Post Compatibility: BXA quick-change tool post series
  • Holder Type: High Speed Reverse Cut-Off / Parting Holder
  • Body Dimensions (without bolt): 3.25 x 1.75 x 1.25 in
  • Dovetail base for positive, repeatable registration in BXA tool post
  • Four set screws on front clamping face for secure blade retention
  • Top clamping bolt and knurled locking nut included
  • Designation code
    Condition: Used
    This Dorian D30BXA-7-71C High Speed Reverse Cut-Off Holder is in good used condition. It was pulled from a working machine shop environment where it was previously in service. The holder body shows normal wear consistent with shop use — minor surface marks and light scuffing — but is structurally sound with no cracks, chips, or damage to the dovetail slot or clamping surfaces. The clamping bolt and knurled locking nut are present and intact. Please review our photos for a close look at the current condition and contact us with any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Dorian Tool
Model:
D30BXA-7-71C
MPN:
D30BXA-7-71C
SKU:
47286
Type:
High Speed Reverse Cut-Off Holder
Tool Post Series:
BXA
Compatible With:
BXA Quick-Change Tool Post Systems
Dimensions (without bolt):
3.25 x 1.75 x 1.25 in
Country/Region of Manufacture:
United States
Form Factor:
Quick-Change Tool Holder
Application:
Lathe Cut-Off / Parting Operations
Seller Notes:
Holder only — no additional tooling or hardware included beyond the clamping bolt shown.
Condition Notes:
This Dorian D30BXA-7-71C Reverse Cut-Off Holder is in good used condition, pulled from a working machine shop. Shows normal wear — minor scuffing, no cracks or damage to dovetail or clamping surfaces. Clamping bolt and nut present.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
