Dongan 83-75-6750CC Three Phase Transformer 75kVA 220/240V to 110/120V 60Hz

(No reviews yet) Write a Review
SKU:
46939
MPN:
83-75-6750CC
Condition:
Used
Availability:
Usually ships within 1-2 business days — contact us prior to purchase for a freight shipping quote.
Weight:
620.00 LBS
Shipping:
Calculated at Checkout
  • Dongan 83-75-6750CC 75kVA Three Phase Transformer on pallet – front three-quarter view showing three yellow coil windings, red top bus bar, and multi-lug terminal block

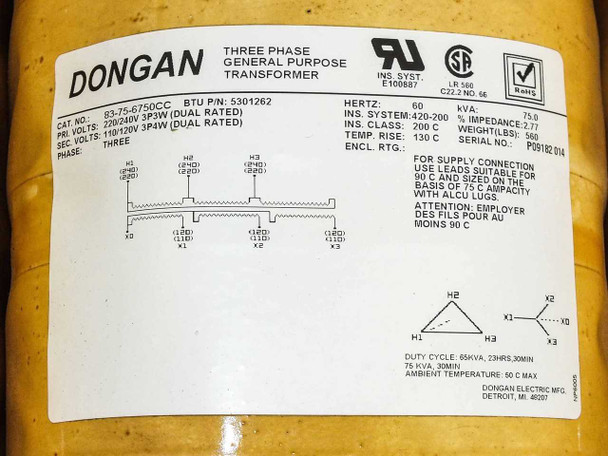

  • Dongan 83-75-6750CC transformer nameplate label showing model, kVA, voltage, impedance, insulation class, duty cycle, and wiring diagram
  • Dongan Three Phase Transformer top-down view showing three yellow coils, wiring harness, and multi-position lug terminal strip
  • Dongan transformer top bus bar detail showing orange H-winding rail with OX tap labels and copper ground lug
  • Dongan transformer base frame corner detail showing ground stud with green/yellow wire and handwritten notation on steel base channel
  • Dongan 83-75-6750CC 75kVA Three Phase Transformer full rear three-quarter view on pallet showing coil assembly, base frame, and terminal block
$900.00
Was: $1,800.00
Current Stock: 1

Sold Out

Description

Dongan 83-75-6750CC Three Phase Transformer 75kVA 220/240V to 110/120V 60Hz

Dry-type three phase general purpose transformer rated 75kVA. Steps down 220/240V primary to 110/120V secondary at 60Hz. UL Listed and CSA Certified unit manufactured by Dongan Electric in Detroit, Michigan.

Specifications & What's Included

  • Power Rating: 75 kVA (continuous at 65 kVA for 23.5 hrs; 75 kVA for 30 min)
  • Primary: 220/240V, 3P3W (Three Phase, Three Wire)
  • Secondary: 110/120V, 3P4W (Three Phase, Four Wire)
  • Frequency: 60 Hz
  • Impedance: 2.77%
  • Insulation Class: 200C, Temperature Rise 130C
  • Open enclosure design
  • UL File E100887, CSA C22.2 No. 66

Applications

Three phase transformers of this type provide voltage conversion in industrial and commercial facilities. Step-down configurations like this unit reduce line voltage for control circuits, machinery, and distribution panels. Commonly used in manufacturing plants, data centers, and telecom installations where 220/240V three phase supply requires stepping down to 110/120V service. Suitable for continuous operation within specified duty cycles and ambient conditions up to 50°C.

Condition: Used
This Dongan 83-75-6750CC Three Phase General Purpose Transformer has been inspected and appears to be in good condition. The three coil windings retain their yellow insulating wrap with no visible damage to the windings or insulation. The terminal lug block and bus bars show normal surface oxidation consistent with prior service use. The steel base frame has surface scuffing and minor wear from handling. No cracks, broken lugs, or damaged wiring are apparent. This is a large, heavy transformer — please contact us prior to purchase for a freight shipping quote. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Dongan
Model:
83-75-6750CC
MPN:
83-75-6750CC
Secondary Model:
5301262
SKU:
46939
Type:
Dry-Type Three Phase General Purpose Transformer
Power Rating:
75 kVA
Primary Voltage:
220/240V (Dual Rated)
Secondary Voltage:
110/120V (Dual Rated)
Phase:
Three Phase
Primary Configuration:
3P3W (Three Phase, Three Wire)
Secondary Configuration:
3P4W (Three Phase, Four Wire)
Frequency:
60 Hz
Impedance:
2.77%
Insulation System:
420-200
Insulation Class:
200C
Temperature Rise:
130C
Ambient Temperature Max:
50C
Duty Cycle:
65 kVA continuous (23 hrs 30 min); 75 kVA (30 min)
Enclosure Rating:
Open / No Enclosure
Condition:
Used – Inspected
Country/Region of Manufacture:
United States
Manufacturer Location:
Dongan Electric Mfg, Detroit, MI
Seller Notes:
Unit only; contact seller for freight quote prior to purchase.
Certifications:
UL Listed, CSA Certified, RoHS
UL File Number:
E100887
CSA Standard:
C22.2 No. 66
Condition Notes:
Dongan 83-75-6750CC 75kVA Three Phase Transformer. Inspected and in good used condition. Coil windings intact, terminals and bus bars show normal oxidation, base frame has surface scuffing.
View AllClose

Related Products

Related Products

Hilvarenbeek Graus JGEO 200VA transformer – front-right three-quarter view showing nameplate label, primary terminal block, and copper winding Hilvarenbeek Graus JGEO 200VA transformer – rear-left three-quarter view showing secondary terminal block and laminated core stack
Add to Cart
Quick view

Hilvarenbeek Graus JGEO 200VA 1-Phase Transformer 220/230/240V 24V 50/60Hz

Hilvarenbeek

$30.00
Was: $80.00
Hilvarenbeek Graus JGEO 200VA 1-Phase Transformer 220/230/240V 24V 50/60Hz Single-phase step-down transformer manufactured in the Netherlands. Converts primary voltage of 220/230/240V AC to secondary...
48376
SKU:
48376
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Brand:
Hilvarenbeek Graus
Model:
JGEO
MPN:
32978-1
SKU:
48376
Condition:
Used – Inspected
Seller Notes:
Transformer only; no additional accessories included.
Country of Manufacture:
Netherlands (Holland)
Form Factor:
Open Frame / Panel Mount
Power Rating:
200 VA
Phase:
Single Phase (1 Fase)
Primary Voltage:
220 / 230 / 240 V
Secondary Voltage:
24 V
Frequency:
50/60 Hz
Secondary Fuse Rating:
8 A
Standards Compliance:
NORM EN 60742
Terminal Type:
Screw terminal block
Power Requirements:
220/230/240V AC, 50/60Hz, Single Phase
Condition Notes:
This Hilvarenbeek Graus JGEO 200VA single-phase transformer has been visually inspected and shows normal wear consistent with prior service use. The terminal blocks and winding appear intact with no obvious physical damage.

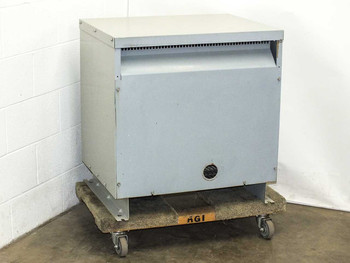

Acme Electric DTGB-075-4S 75kVA Drive Isolation Transformer – right-side enclosure view showing vented top and Acme nameplate label Acme Electric DTGB-075-4S 75kVA Drive Isolation Transformer – left-side enclosure view showing sheet metal housing and ventilation slots
Add to Cart
Quick view

Acme Electric DTGB-075-4S 75kVA Drive Isolation Transformer 460V 3-Phase 60Hz

Acme Electric

$1,950.00
Was: $3,900.00
Acme Electric DTGB-075-4S 75kVA Drive Isolation Transformer 460V 3-Phase 60HzDrive isolation transformer rated at 75 kVA, designed to isolate variable frequency drives and motor control systems from...
49922
SKU:
49922
Availability:
Usually ships within 1-2 business days.
Weight:
550.00 LBS
Brand:
Acme Electric
Model:
DTGB-075-4S
MPN:
DTGB-075-4S
SKU:
49922
Type:
Drive Isolation Transformer
Power Rating:
75 kVA
Primary Voltage:
460V Delta w/ FC Taps
Secondary Voltage:
480Y / 266V
Phase:
Three Phase
Frequency:
60 Hz
Impedance:
5.19% at 170° C
Winding Rise:
150° C
Insulation Class:
Class 220
Cooling Method:
Dry Type, Air Cooled
Dimensions:
29 x 23 x 29.5 in (L x W x H)
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; pulled from a working environment. No accessories included.
Form Factor:
Floor Mount / Freestanding
Application:
Variable Frequency Drive (VFD) / Motor Drive Isolation
Condition Notes:
Acme Electric DTGB-075-4S 75kVA Drive Isolation Transformer. Used, inspected, in good condition. Pulled from a working environment where it was actively in service. Minor cosmetic wear on enclosure. Interior cores and windings intact.

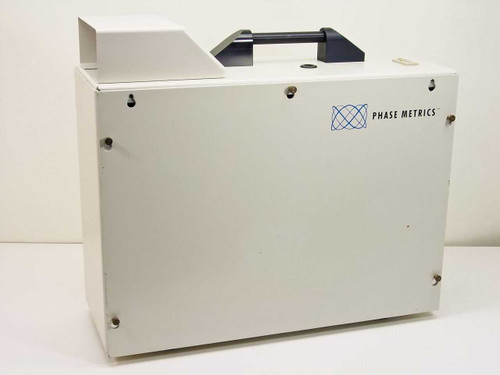

Phase Metrics Lamphouse 038050100B – right side exterior view showing Phase Metrics logo and carry handle Phase Metrics Lamphouse 038050100B – left side and rear exterior view showing mounting keyhole slots and carry handle
