Dodge BK160H 121103 Sheave 1-Groove Split Taper 15-3/4" OD Light Duty V-Belt

Dodge BK160H 121103 Sheave 1-Groove Split Taper 15-3/4" OD Light Duty V-Belt

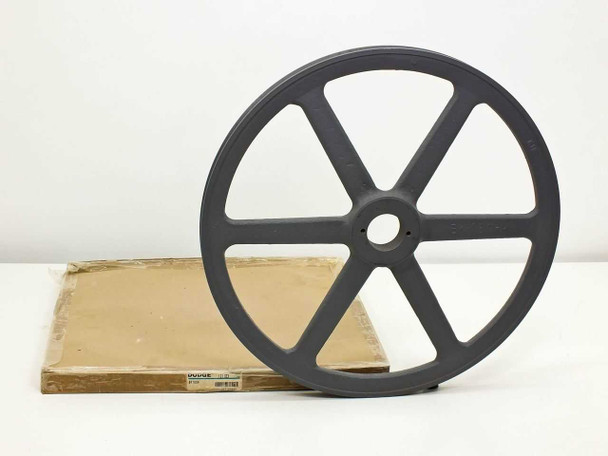

The Dodge BK160H is a single-groove, light-duty V-belt sheave designed for use with an H-series split taper bushing (sold separately). It carries a 15-3/4" outer diameter and a B-section belt groove, making it suited for standard B-series V-belt drive systems. Manufactured in the USA by Dodge (now part of Regal Rexnord), the BK series uses a split taper bushing mount that makes installation and removal fast and repeatable without special tooling.

Specifications & What's Included

• Brand: Dodge (Regal Rexnord)
• Model: BK160H
• Part Number: 121103
• UPC: 782475106950
• Number of Grooves: 1
• Belt Section: B (standard B-series V-belt)
• Outer Diameter: 15-3/4" (approximately)
• Bushing Required: H-series split taper bushing (not included — must be ordered separately)
• Bushing Bore / ID: 1-9/16" (approximately)
• Duty Rating: Light Duty
• Mounting: Split taper bushing — no set screws or keyways in the sheave itself
• Country of Manufacture: USA
• Includes: Sheave only — no bushing, no hardware

Applications

Split taper sheaves are a standard component in industrial V-belt power transmission systems, used to transmit rotational motion between shafts driven by electric motors, fans, blowers, pumps, compressors, and conveyor systems. The BK series covers light-duty single-groove applications where a B-section belt is appropriate. The H-series split taper bushing system — developed and popularized by Dodge — clamps concentrically onto the shaft as the bushing screws are tightened, eliminating the need for a press fit and making field alignment and shaft removal much simpler than a conventional keyed hub. At 15-3/4" OD, this sheave provides a significant speed reduction or torque multiplication relative to a smaller driver sheave, making it common in fan and blower drive systems where the motor runs faster than the driven shaft.
