Diversified Technology

Diversified Technology CPS-710 16-Bit ISA Power Monitor Board 912000155

(No reviews yet) Write a Review
SKU:
41995
MPN:
CPS-710
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

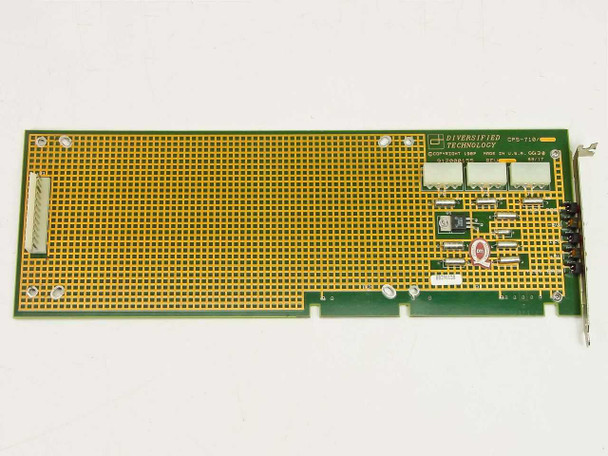

  • Diversified Technology CPS-710 ISA power monitor board – top component side view showing full PCB layout

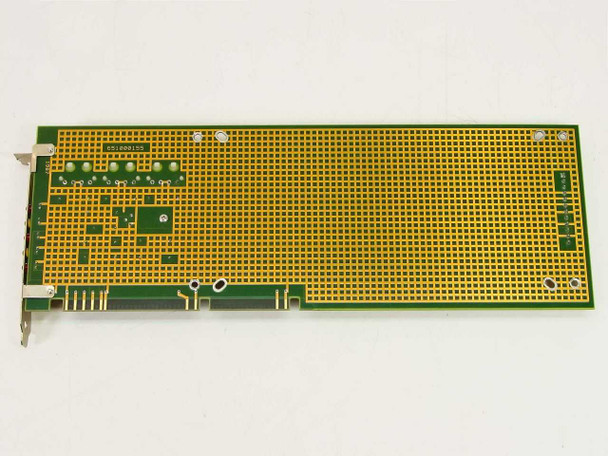

  • Diversified Technology CPS-710 16-bit ISA board – reverse solder side view showing full board length

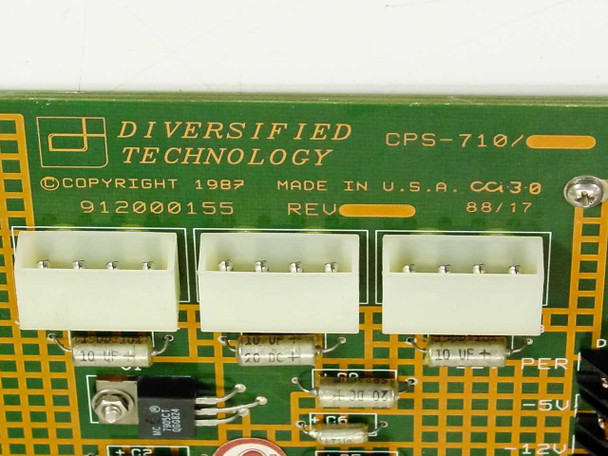

  • Diversified Technology CPS-710 close-up of manufacturer label showing model, MPN 912000155, copyright 1987, Made in USA, date code 88/17, and three power header connectors J2 J3 J4

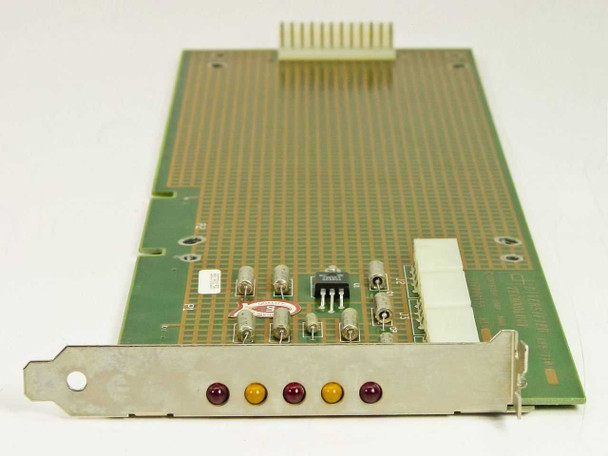

  • Diversified Technology CPS-710 ISA board – angled side view showing ISA edge connector and front bracket with five LED indicators

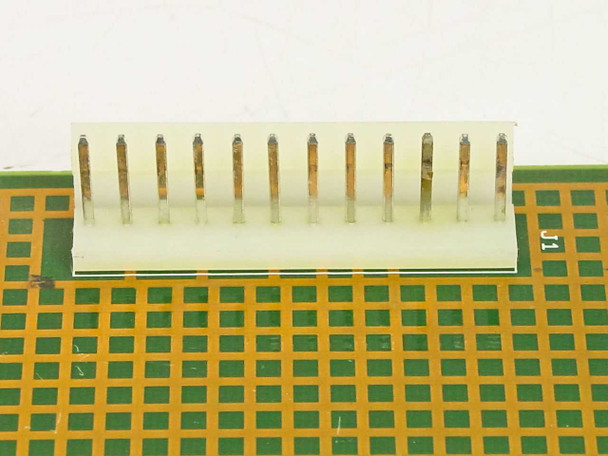

  • Diversified Technology CPS-710 close-up of 12-pin ISA edge connector header showing pin condition

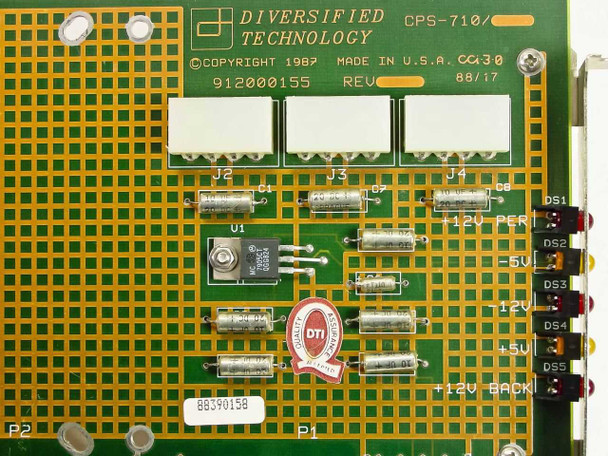

  • Diversified Technology CPS-710 component detail showing LED voltage indicators labeled +12V PER, -5V, -12V, +5V, +12V BACK and voltage regulator IC
$60.00
Was: $125.00
Current Stock: 1

Sold Out

Description

Diversified Technology CPS-710 16-Bit ISA Power Monitor Board 912000155

This is a power supply voltage monitoring board designed for 16-bit ISA-bus systems. The CPS-710 monitors multiple voltage rails and provides LED status indicators for system power diagnostics.

Specifications & What's Included

  • Model: CPS-710 | MPN: 912000155
  • Form Factor: Full-length ISA card with 16-bit edge connector
  • Monitoring: 5x LED indicators for +12V, -5V, -12V, +5V, and +12V BACK
  • Connectors: 3x power header connectors (J2, J3, J4) plus ISA edge connector
  • Power: Supplied via ISA bus and internal power headers
  • Board only; no cables or accessories included

Applications

This card was used in industrial PCs and telecom equipment to monitor power supply voltages in real time. It fits ISA-slot computers and systems requiring voltage health monitoring during operation or diagnostics. Common in 1980s–1990s industrial control systems and server environments.

Condition: Used
This Diversified Technology CPS-710 16-bit ISA power monitoring board has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use. The PCB is clean overall with no visible cracks, burn marks, or damaged traces. The three internal power header connectors (J2, J3, J4) appear intact, the five front-bracket LED indicators are present, and the ISA edge connector shows normal oxidation consistent with age and use. The board carries a 1987 copyright date and date code 88/17, indicating period-correct manufacturing. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Diversified Technology
Model:
CPS-710
MPN:
912000155
SKU:
41995
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; no cables or accessories included.
Form Factor:
ISA Card / Full-Length PCB
Bus Interface:
16-Bit ISA
Interface Type:
ISA (Industry Standard Architecture)
Board Function:
Power Supply Voltage Monitoring
Indicators:
5x LED status indicators (+12V, -5V, -12V, +5V, +12V BACK)
Connectors:
3x power header connectors (J2, J3, J4); ISA edge connector
Copyright Date:
1987
Date Code:
88/17
Country of Manufacture:
USA
Compatible With:
ISA-bus PCs and industrial systems with 16-bit ISA slots
Power Requirements:
Powered via ISA bus / internal power headers
Condition Notes:
This Diversified Technology CPS-710 16-bit ISA power monitoring board has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use.
