Lot of 1

DIN Rail Terminal Block Lot Eaton WMZS1C05 RS4N-DE Weidmuller WDK 2.5 Relay

(No reviews yet) Write a Review
SKU:
48256
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout
  • Full DIN rail assembly with terminal blocks, relay cards, Eaton breaker, and wiring installed – overhead angle view
  • Close-up of RS4N-DE 4-relay card modules and Eaton WMZS1C05 mini circuit breaker on DIN rail with multi-color wiring

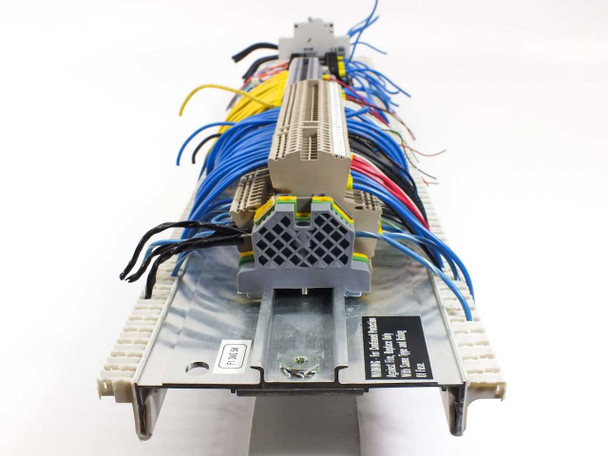

  • Side profile view of complete DIN rail assembly showing wiring depth and label strip on aluminum rail

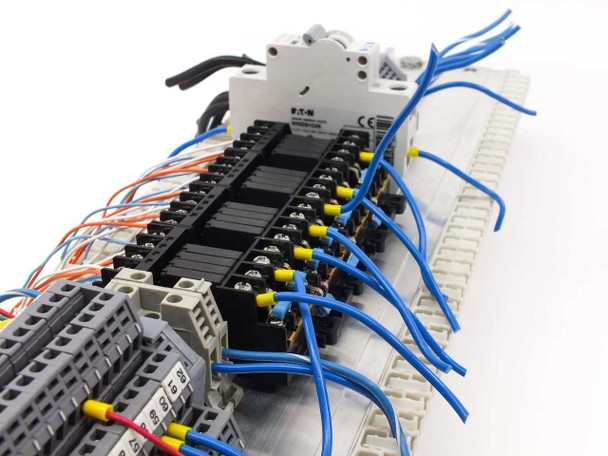

  • Top-down view of Eaton WMZS1C05 breaker and RS4N-DE relay card section with blue and orange wiring
  • Close-up of Eaton WMZS1C05 C5 mini circuit breaker beside ME Euro terminal blocks and RS4N-DE relay cards

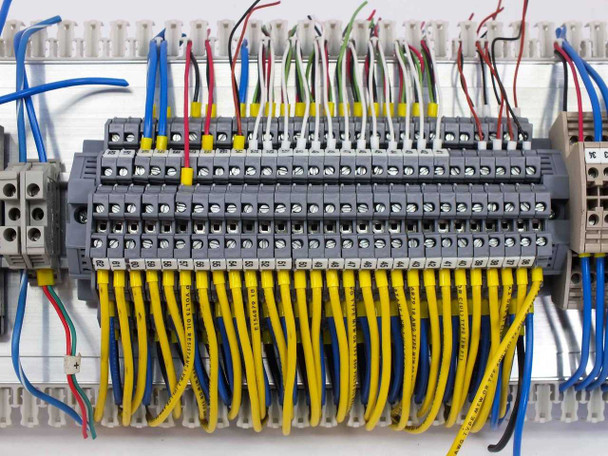

  • Close-up of Weidmuller WDK 2.5 ZQV double-stack terminal blocks with yellow jumper wires installed

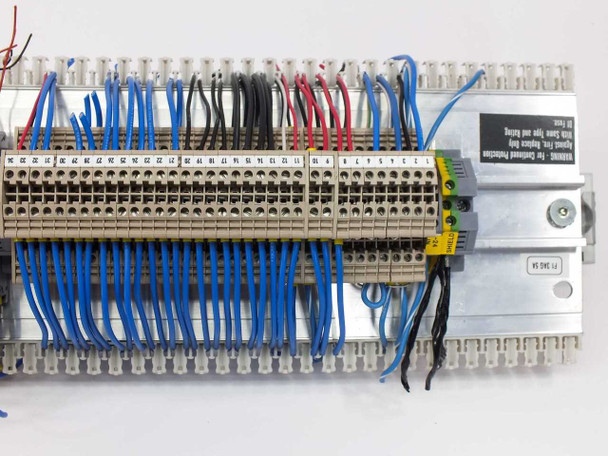

  • Top view of ME Euro W 2.5/35 three-stack terminal blocks section with numbered label strip and blue wiring
  • Front view of ME Euro W 2.5/35 three-stack terminal block section with dense blue, yellow, and black wiring
  • Close-up of ME Euro W 2.5/35 and Weidmuller double-stack terminal block section with multi-color wiring
  • Top view of Eaton WMZS1C05 breaker and RS4N-DE relay card bank with blue and orange wire connections
$115.00
Was: $225.00
Current Stock: 1

Sold Out

Description

DIN Rail Terminal Block Lot Eaton WMZS1C05 RS4N-DE Weidmuller WDK 2.5 Relay

Lot of 75 DIN rail-mounted components pulled from a working industrial control panel. Includes terminal blocks, a mini circuit breaker, relay cards, and aluminum DIN rail for IEC standard panel assembly.

Specifications & What's Included

  • 70 terminal blocks: 1x ME Euro E4, 7x ME Euro 2.5, 34x Weidmuller WDK 2.5 ZQV, 28x ME Euro W 2.5/35
  • 1x Eaton WMZS1C05 mini circuit breaker (10kA, 277VAC, 5A)
  • 4x RS4N-DE card relays (5A SPST, 24VDC coil, 4 relays per card)
  • 32.5 inches of 35mm aluminum DIN rail (TS35)
  • Wire size: 2.5mm² terminal blocks

Applications

These components are standard in industrial control panels, motor starters, and telecom equipment cabinets. Terminal blocks handle signal and power connections on DIN rail; the Eaton breaker provides circuit protection; RS4N-DE relays switch 24VDC control circuits. Compatible with IEC 60715 TS35 rail systems and typical in European-manufactured automation and HVAC control systems.

Condition: Used
This lot of DIN rail terminal blocks, relay cards, and an Eaton WMZS1C05 mini circuit breaker was pulled from a working industrial control panel environment. Components are in good used condition with typical installation wear including minor wire marks and handling marks. The Eaton WMZS1C05 breaker, RS4N-DE relay cards, Weidmuller WDK 2.5 ZQV double-stack terminal blocks, and ME Euro single- and three-stack terminal blocks all appear intact and undamaged in the photos. The assembly is wired as photographed and includes approximately 32.5 inches of aluminum DIN rail. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Multiple (Eaton, Weidmuller, ME Euro)
Model:
WMZS1C05
MPN:
WMZS1C05
Secondary Model:
RS4N-DE
Type:
DIN Rail Terminal Block and Relay Lot
SKU:
48256
Seller Notes:
Lot of 75 components + 32.5in aluminum DIN rail; see description for full qty breakdown
Condition:
Used – Pulled from Working Environment
Form Factor:
DIN Rail Mount
Component 1:
ME Euro E4 Single Stack Terminal Block – Qty 1
Component 2:
ME Euro 2.5 Single Stack Terminal Block – Qty 7
Component 3:
Eaton WMZS1C05 Mini Circuit Breaker 10kA 277VAC – Qty 1
Component 4:
Weidmuller WDK 2.5 ZQV Double Stack Terminal Block – Qty 34
Component 5:
ME Euro W 2.5/35 Three Stack Terminal Block – Qty 28
Component 6:
RS4N-DE Card Relay 5A SPST 4 Relays 24VDC Coil – Qty 4
Component 7:
Aluminum DIN Rail – 32.5 inches included
Circuit Breaker Rating:
10kA, 277VAC, 5A (Eaton WMZS1C05)
Relay Coil Voltage:
24VDC
Relay Contact Rating:
5A SPST
Relay Configuration:
4 relays per card (SPST)
Terminal Block Wire Size:
2.5mm²
DIN Rail Type:
Aluminum, 35mm standard (TS35)
Total Terminal Block Count:
70 terminal blocks (various types)
Compatible With:
35mm DIN rail, IEC standard control panels
Country/Region of Manufacture:
Germany (Eaton, Weidmuller)
Condition Notes:
Lot of DIN rail terminal blocks, Eaton WMZS1C05 breaker, and RS4N-DE relay cards pulled from a working control panel. Good used condition with typical installation wear. Includes ~32.5in aluminum DIN rail.
